Winco DR65F4 Standby Generator (62kW)
Call for PricingRequest a Quote

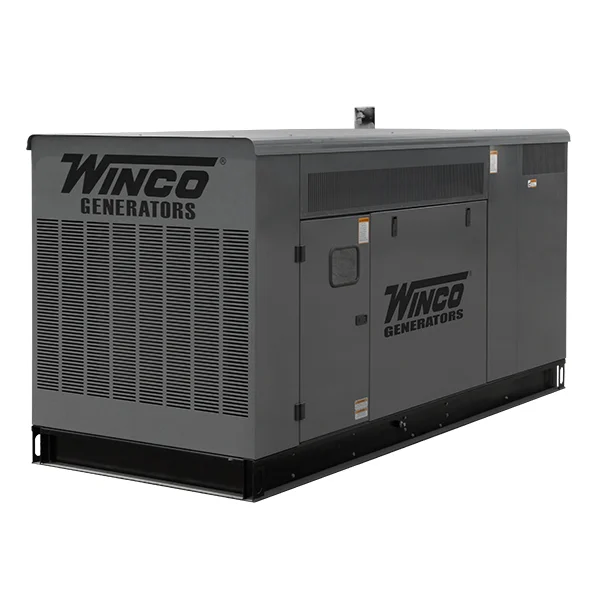

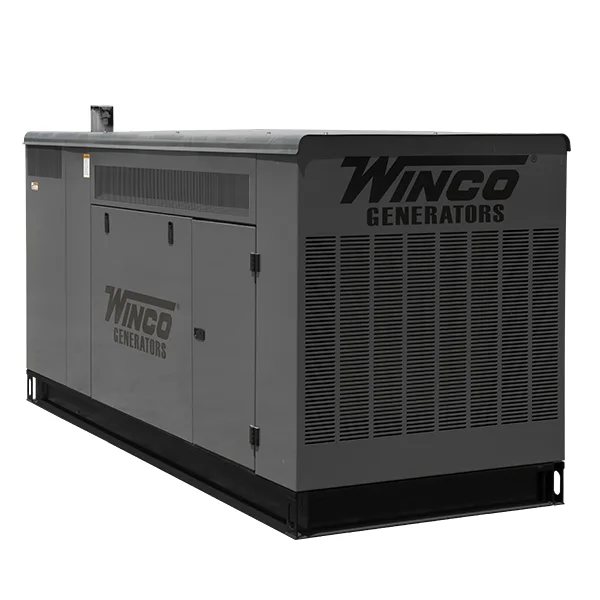

The Winco DR65F4 diesel standby generator comfortably pulls up to 62 kW of power. The FPT 4.5L engine sits at the top of its class for fuel economy and reliability. Available in several phase/voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK).
Or call us: (888) 481-8845
The Winco DR65F4 diesel standby generator comfortably pulls up to 62 kW of power. The FPT 4.5L engine sits at the top of its class for fuel economy and reliability. Available in several phase/voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK). Optional fuel tanks and trailers available.
| Model | Phase | Voltage | kW | kVA | Amps |
| DR65F4-A | 1 | 120/240V | 62 | 62 | 258 |
| DR65F4-D | 3 | 120/208V | 62 | 77 | 215 |
| DR65F4-J | 3 | 120/240V | 62 | 77 | 186 |
| DR65F4-L | 3 | 277/480V | 62 | 77 | 93 |
FEATURES
Engine Features
- FPT diesel engine.
- EPA Certified Tier 3.
- Efficient low fuel consumption design.
- Precision Italian manufacturing.
- Complete service network (including most CASE and New Holland Dealers).
- Circulating block heater – 120V, 1000W, with thermostat.
Generator Features
- Stamford industrial grade generator.
- Rated for continuous standby use.
- Class H insulation.
- Automatic voltage regulator provides +/-1.5% regulation.
- Available in all common voltages.
Control Features
- Digital genset DSE 7310 controller.
- Engine/genset display and protection.
- Glow plugs and starter solenoid controls.
- Emergency stop.
- USB connectable communications.
- Expanded communications options.
- Audible alarm.
- Engine exerciser.
- Event log.
- Configurable inputs.
- Configurable outputs.
- UL/CSA Listed.
- See the Spec Sheet below for a full listing of features.
Other Features
- Open Skid Design (Sound Attenuated Cabinet available)
- Welded and powder coated steel base.
- Rubber mounted engine and generator.
- Electrician friendly single cover connection points.
- 2A battery charger.
- Load bank tested.
- Single step 100% load tested.
- Operation Manuals.
- Designed for long life.
SOUND-PAK Cabinet Option
- Constructed with Galvannealed steel
- Lockable doors keyed alike
- Stainless steel hinges and door stops
- Critical muffler
- Maintenance doors and panels
- Powder coated prior to assembly
- Sound absorbing foam lined
- Cooling air deflectors
DOWNLOADS
OPTIONS
Fuel Tanks
- 180 gallon base mounted steel double wall fuel tank – UL142 Listed
- 320 gallon base mounted steel double wall fuel tank – UL142 Listed
Other Options
- NFPA 110 Level 1 Compliant Upgrade
- 10 Amp Battery Charger with with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- Permanent Magnet Generator (PMG) MX321 Upgrade (0.5% regulation)
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
| Brand | Winco |
|---|---|
| Weight | 1790 lbs (enclosed unit) |
| Dimensions | 108 x 42 x 57 (with enclosure) |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | FPT N45 SM2 Turbo-charged, 4 cylinder, 4.5L, 94 hp, 1800 rpm |
