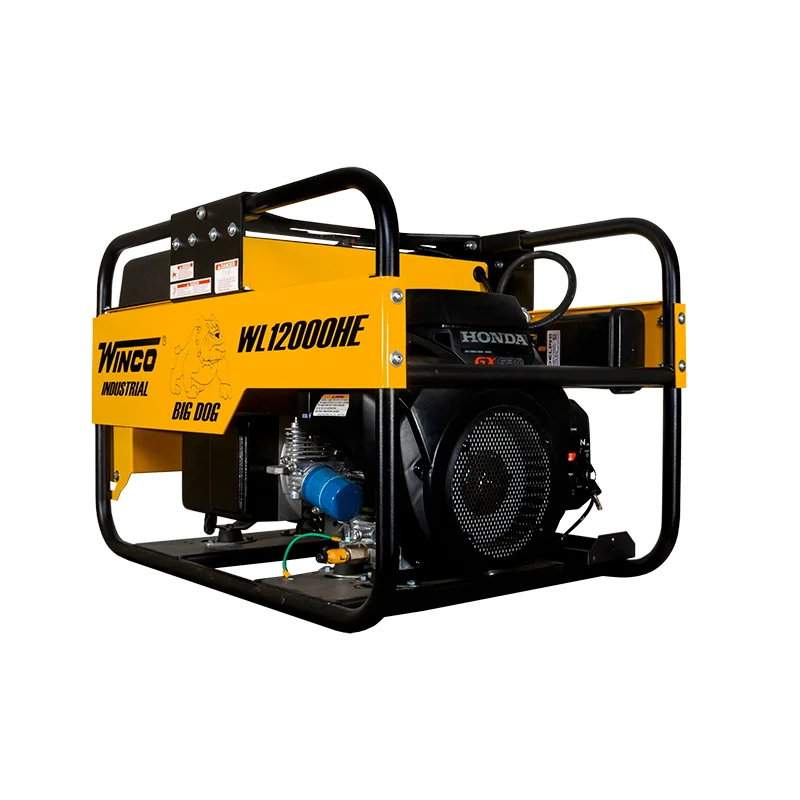

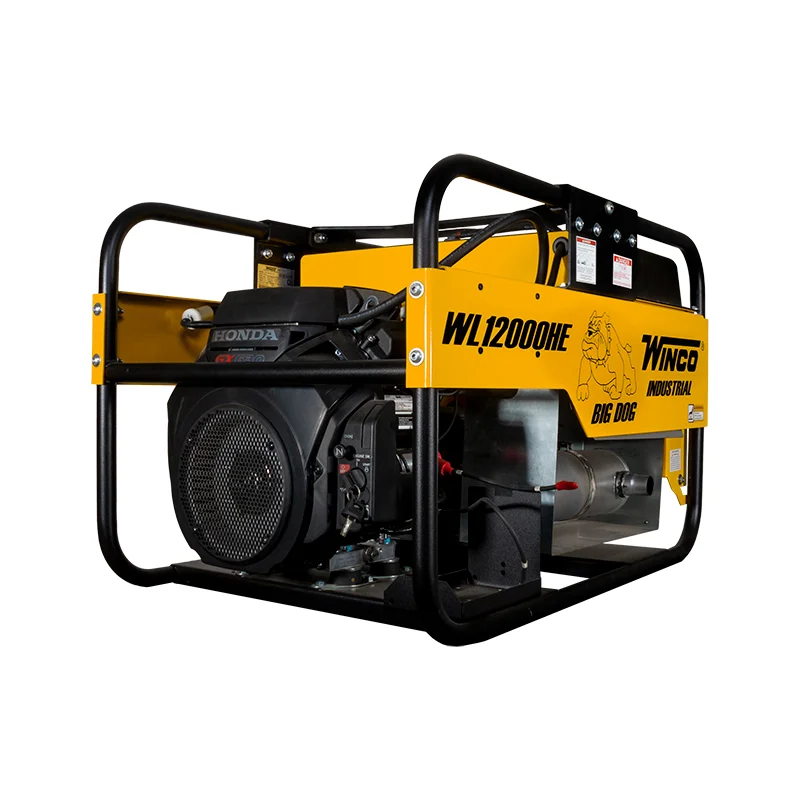

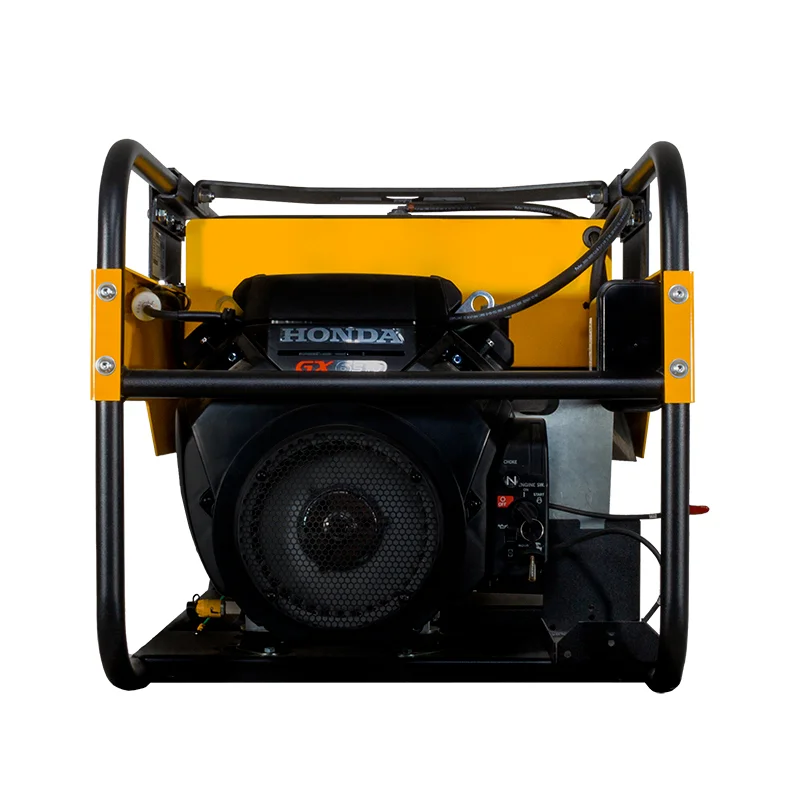

The Winco WL12000HE-17/A Portable Generator offers a Honda GX630 engine, electric start, up to 12 kW of 3 phase power at 132/230V, and (3) NEMA 5-20R Duplex and (1) NEMA L21-30R 30A receptacle.

FEATURES

• Ideal for flat top roofing industry and other construction/industrial applications.
• Sturdy Wrap Around Cradle: 14 Gauge, welded, tubular steel provides industrial strength support.
• Powder coat paint for an incredibly strong finish.
• Premium Circuit Breaker provides a clear and instant indication of a tripped circuit.
• Generous receptacle package including (3) 5-20R and (1) L21-30R 30A (plug also included).
• NEMA 5-20R GFCI receptacles fitted with UL listed metal covers for protection against the elements.

• 3.5hp motor starting ability (Code G).
• Steel 15 gallon fuel tank for 9.4 hours of full load run time.
• Standard lifting eye.


Engine Features

• Honda GX630 V-Twin OHV commercial grade engine.
• Cast iron cylinder sleeves.
• Low oil protection.
• Full pressure oil lube with spin-on filter.
• CARB and EPA Certified.

DOWNLOADS

WL12000HE 3PH Spec Sheet

WL12000HE 3PH Manual

WL12000HE Drawing
