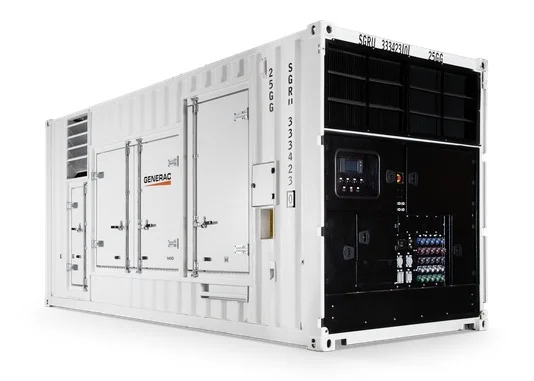

The Generac Mobile MDE1450 TwinGen Diesel Generator is an innovative dual-genset mobile power solution designed for prime applications in the most challenging industrial environments. Dual 725 kVA gensets allow for independent or synchronized operations. Parallel up to 16 units for scalable power solutions up to 18.5 MW. Available with or without a trailer.

FEATURES

• Two Volvo Turbocharged after-cooled 6-cylinder diesel engines with Electronic Governing – EPA Tier 4 Final.
• Four 975 CCA Optima Yellow Top Batteries.
• Exhaust System with SCR and DOC; two roof-mounted silencers with rain caps.
• Cooling System with four electric cooling fans and remote radiators.
• Double-wall 475 gallon fuel tank and auxiliary fuel quick connections with 6-way fuel valve.
• Two 42 gallon DEF tanks and auxiliary DEF quick connections.
• 110% Containment of all fuel, DEF, and engine fluids.
• Two Mecc Alte 50/60Hz Engine-Driven Alternators.
• Mecc Alte DER 1 Automatic Voltage Regulator.
• Permanent Magnet Generator (PMG) Excitation System.
• Two Deep Sea DSE8610 Controllers for operating the two gensets individually.
• One Deep Sea DSE8003 Paralleling Controller for operating both gensets together.
• Two 1000A 4-Pole motorized circuit breakers.
• Parallel up to 16 MDE1450 Twin Gen Units.
• 50/60 Hz Dual Frequency Switch for 3PH 277/480V 60Hz or 3PH 230/400V 50Hz power.
• Control system includes emergency stop switch, hour meter, lockable battery disconnect, and 5A battery charger.
• Power Distribution includes connection lugs, copper bar connections, grounding system, and 5 sets of female camlock connections.
• Single Phase 120V 20A GFCI duplex convenience receptacle.
• Ready for sub-zero weather with coolant block heater, air grid heater, oil pan heater, battery blanket heater, and alternator anit-condensation heater.
• Fully lockable, soundproofed, and weatherproofed 20ft high-cube container with roof access ladder and internal lights.
• ISO 4-Point Lifting Hooks and fork pockets.
• Sound rating of 71 dB (A) @ 23ft & 75% PRP.
• 2-Year / 2000-Hour Warranty.

DOWNLOAD

MDE1450 Spec Sheet

OPTION

• Tandem-axle trailer with gooseneck platform.
