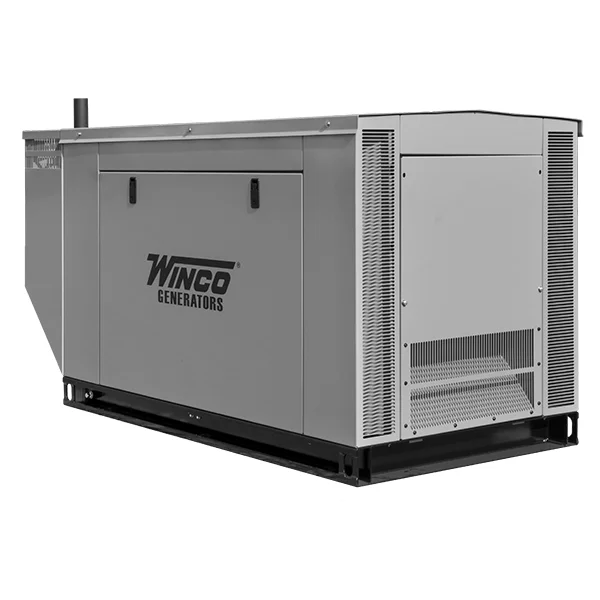

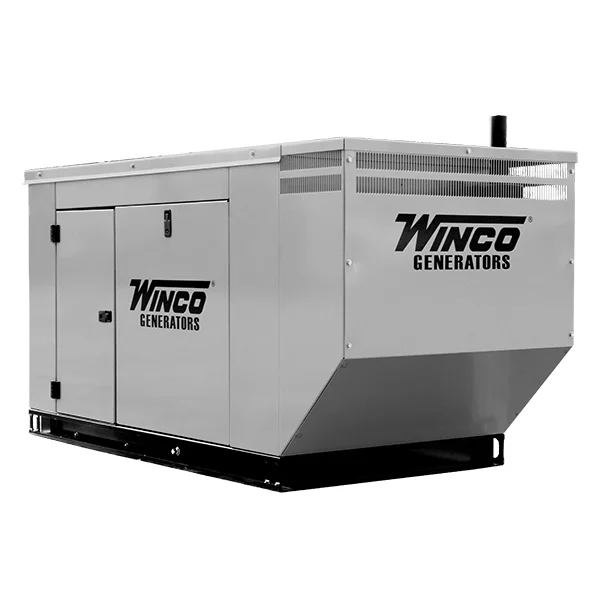

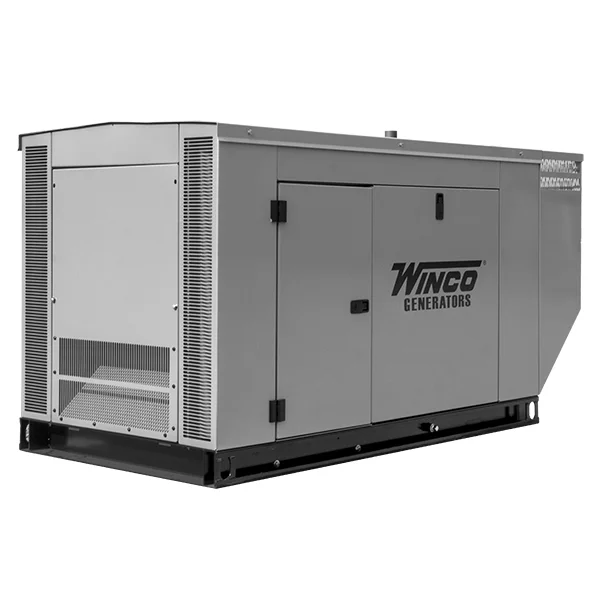

Winco DR12I4 Prime Generator (11kW)
Call for PricingRequest a Quote
The Winco DR12I4 prime diesel generator offers up to 11.25kW of prime power. Available in several phase/voltage models. Option of Open Skid design or with Cabinet Enclosure. Optional fuel tanks available.
Or call us: (888) 481-8845
The Winco DR12I4 prime diesel generator offers up to 11.25kW of prime power. Available in several phase/voltage models. Option of Open Skid design or with Cabinet Enclosure. Optional fuel tanks available.
| Voltage / Phase | Prime Power |
| 120/240V 1PH | 11,250W / 11,250VA 46 Amps |
| 120/208V 3PH | 11,250W / 14,062VA 38 Amps |
| 120/240V 3PH | 11,250W / 14,062VA 33 Amps |
| 277/480V 3PH | 11,250W / 14,062VA 16 Amps |
| 346/600V 3PH | 11,250W / 14,062VA 13 Amps |
FEATURES
- Industrial Isuzu 3CE1 EPA Tier 4 Final diesel engine.
- In-line Hotstart 120V coolant heater with thermostat.
- Industrial Cummins generator end.
- Automatic voltage regulator provides +/-1% regulation.
- Digital genset DSE 7310 controller.
- Choice of open skid design or with sound-attenuated galvanealed steel enclosure.
- 5A Battery charger included standard
- Full 100% load tested.
- Assembled in the USA.
- EPA, CARB, and CSA Approved.
DOWNLOADS
OPTIONS
Fuel Tanks
- 54 gallon composite fuel tank – not UL142 Listed
- 55 gallon base mounted steel double wall fuel tank – UL142 Listed
- 110 gallon base mounted steel double wall fuel tank – UL142 Listed
- 155 gallon base mounted steel double wall fuel tank – UL142 Listed
Other Options
- 10 Amp Battery Charger with with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
| Brand | Winco |
|---|---|
| Weight | 1790 lbs with Enclosure |
| Dimensions | 75 x 34 x 45 |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | Isuzu 3CE1, 3-cylinder, 1800 rpm |
