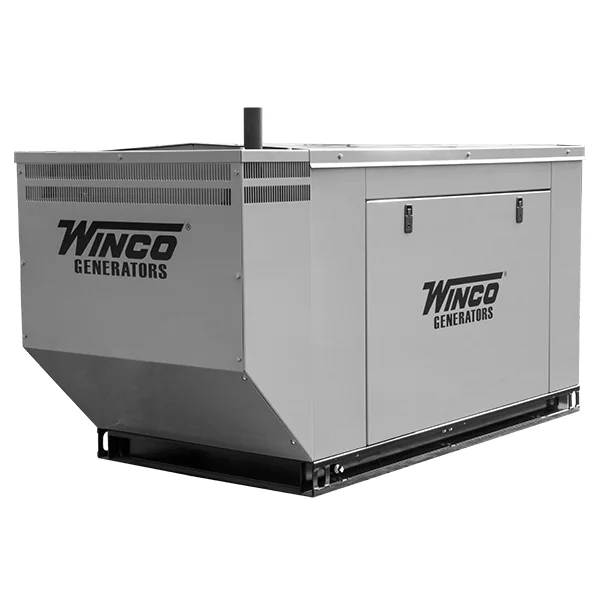

Winco DR12I4 Prime Generator (11kW)
March 28, 2026

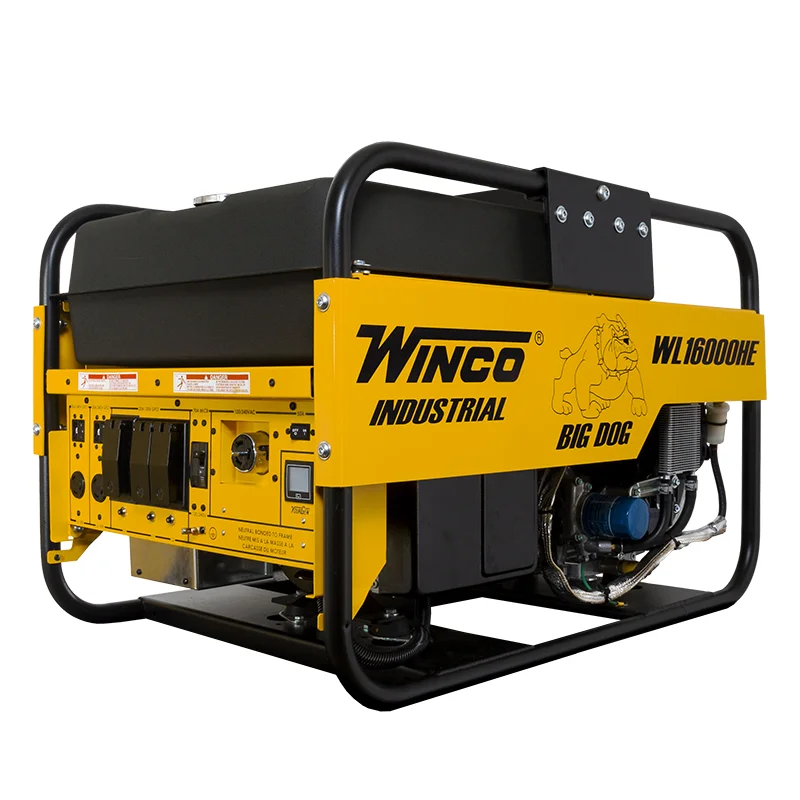

Winco WL16000HE Generator (16,000W)
March 28, 2026
Winco DR12I4 Mobile Generator (12.5kW)
Call for PricingRequest a Quote
The Winco DR12I4 mobile diesel generator offers up to 12.5 kW of standby power and up to 11.25kW of prime power on the go. Available in several phase/voltage models.
Or call us: (888) 481-8845
The Winco DR12I4 mobile diesel generator offers up to 12.5 kW of standby power and up to 11.25kW of prime power on the go. Available in several phase/voltage models.
| Voltage / Phase | Standby Power | Prime Power |
| 120/240V 1PH | 12,500W / 12,500VA 52 Amps |
11,250W / 11,250VA 46 Amps |
| 120/208V 3PH | 12,500W / 15,625VA 43 Amps |
11,250W / 14,062VA 38 Amps |
| 120/240V 3PH | 12,500W / 15,625VA 37 Amps |
11,250W / 14,062VA 33 Amps |
| 277/480V 3PH | 12,500W / 15,625VA 18 Amps |
11,250W / 14,062VA 16 Amps |
| 346/600V 3PH | 12,500W / 15,625VA 15 Amps |
11,250W / 14,062VA 13 Amps |
FEATURES
- Industrial Isuzu 3CE1 EPA Tier 4 Final diesel engine.
- In-line Hotstart 120V coolant heater with thermostat.
- Industrial Cummins generator end.
- Automatic voltage regulator provides +/-1% regulation.
- Digital genset DSE 7310 controller.
- Sound-attenuated galvanealed steel enclosure.
- Single-axle trailer with 54-gallon fuel tank.
- 5A Battery charger included standard.
- Full 100% load tested.
- Assembled in the USA.
- EPA, CARB, and CSA Approved.
DOWNLOADS
OPTIONS
- 10 Amp Battery Charger with with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- Tool Box Assembly
- Spare Tire and Optional Mounting Bracket
| Brand | Winco |
|---|---|
| Weight | N/A |
| Dimensions | 132" x 54" x 79" |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | Isuzu 3CE1, 3-cylinder, 1800 rpm |
