Maximum Space. Minimal Footprint.

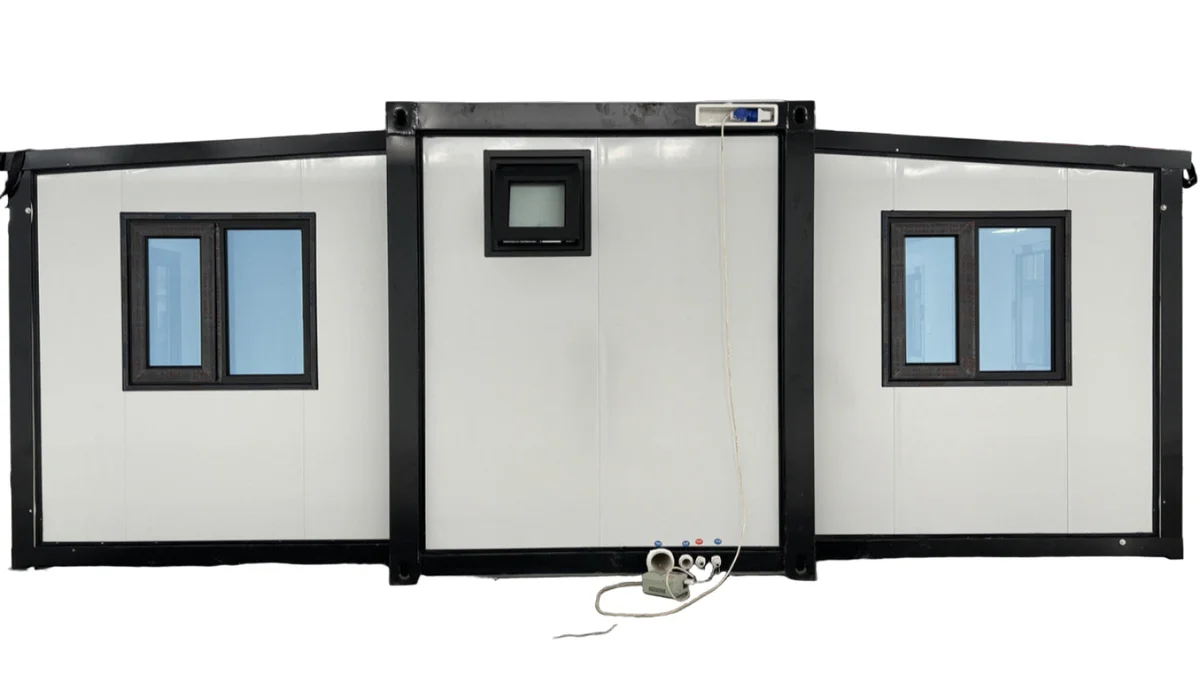

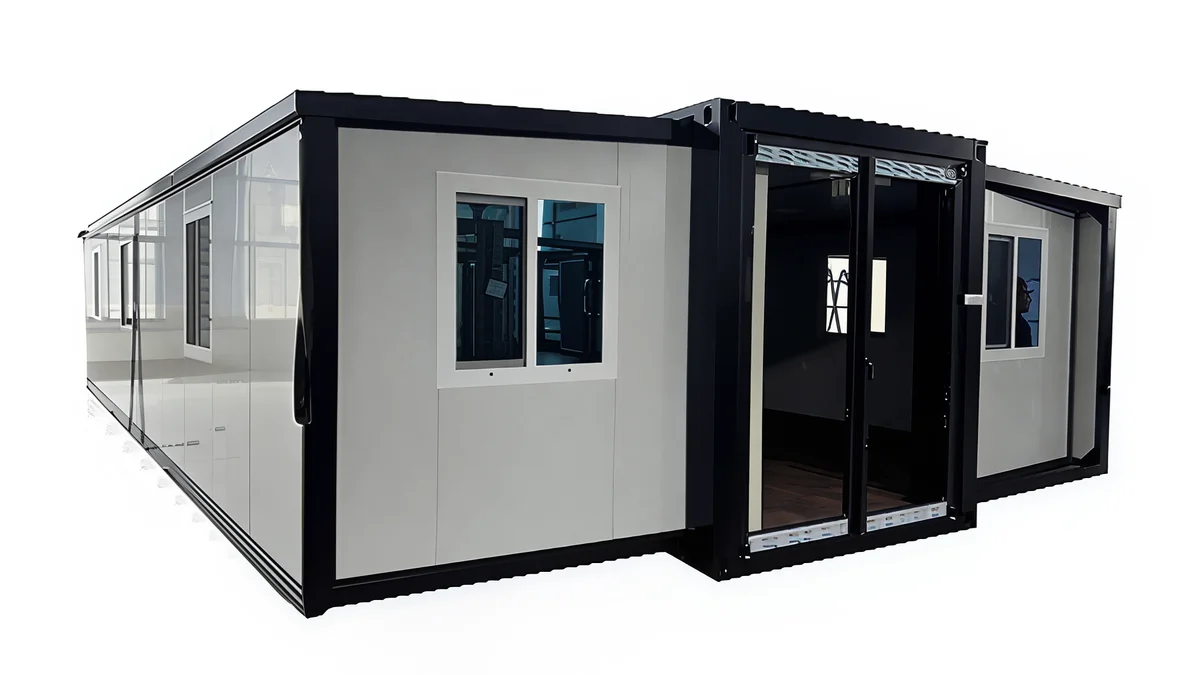

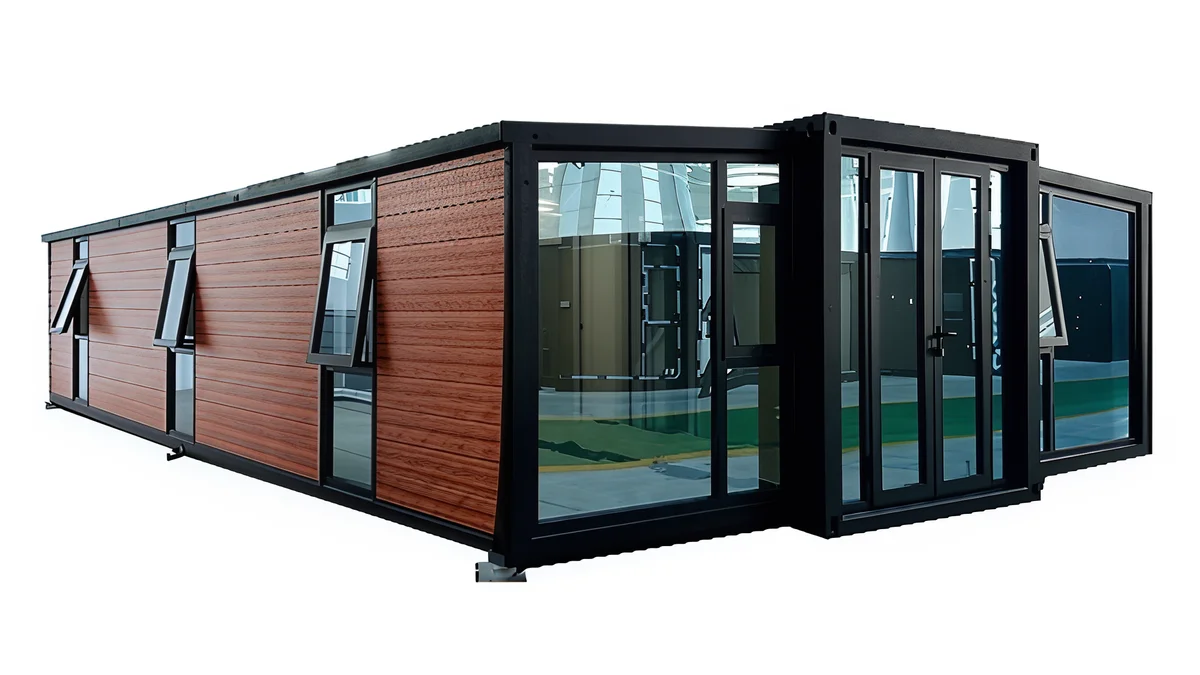

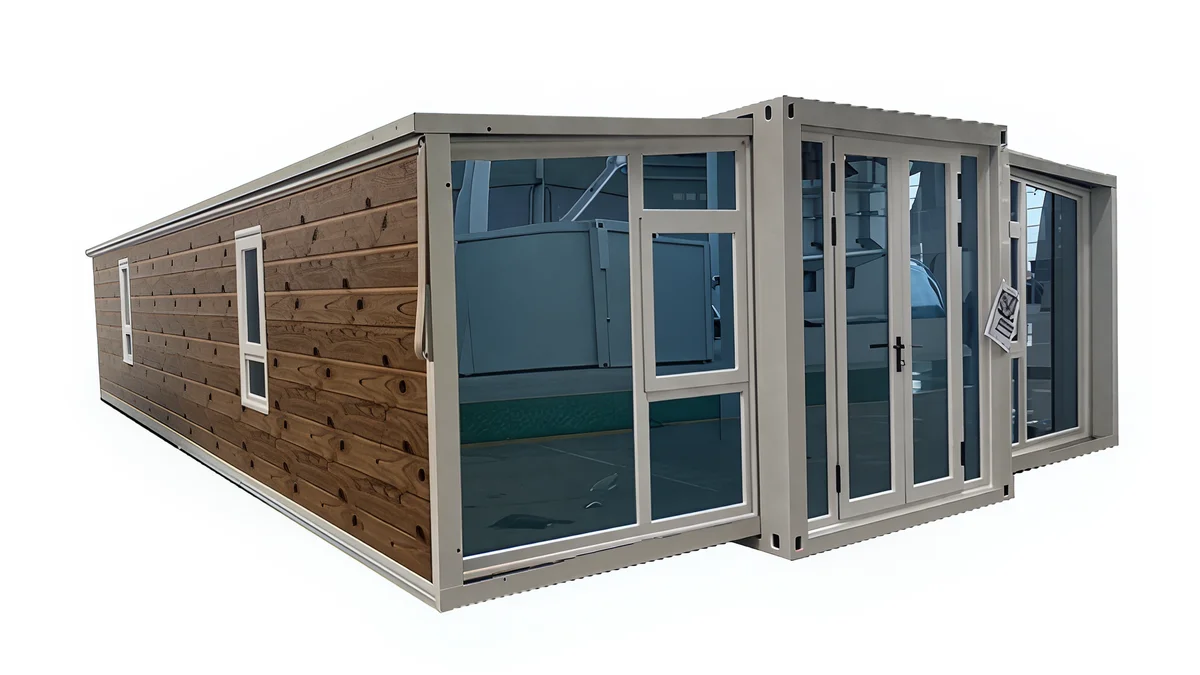

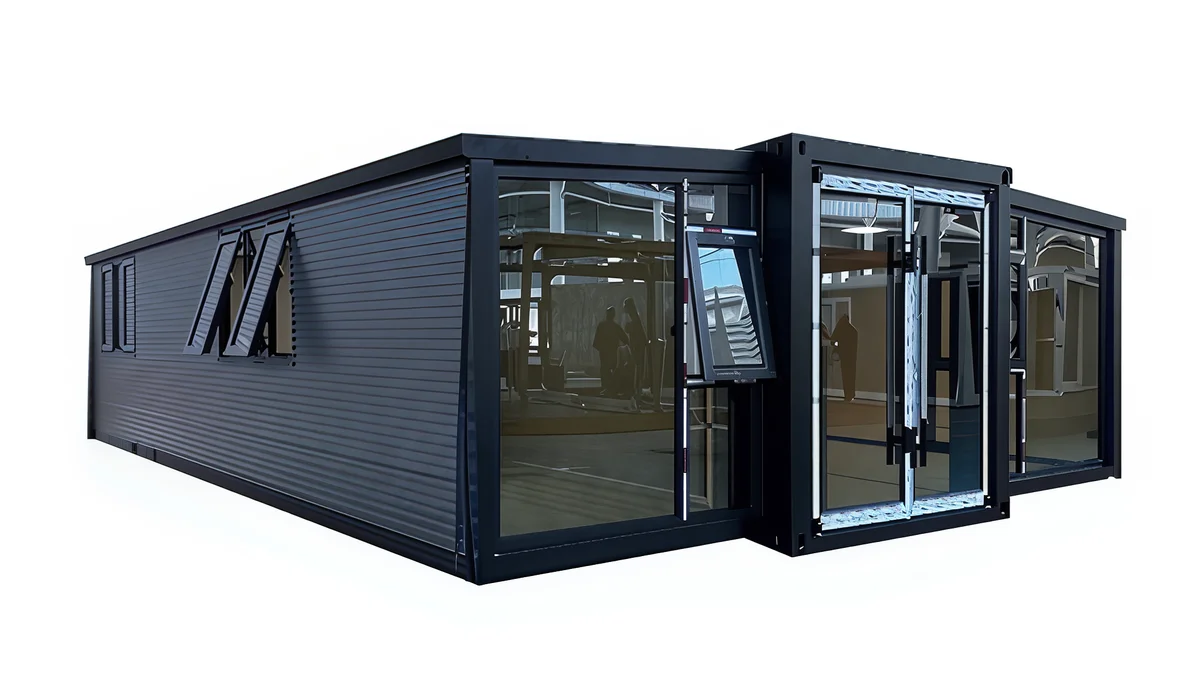

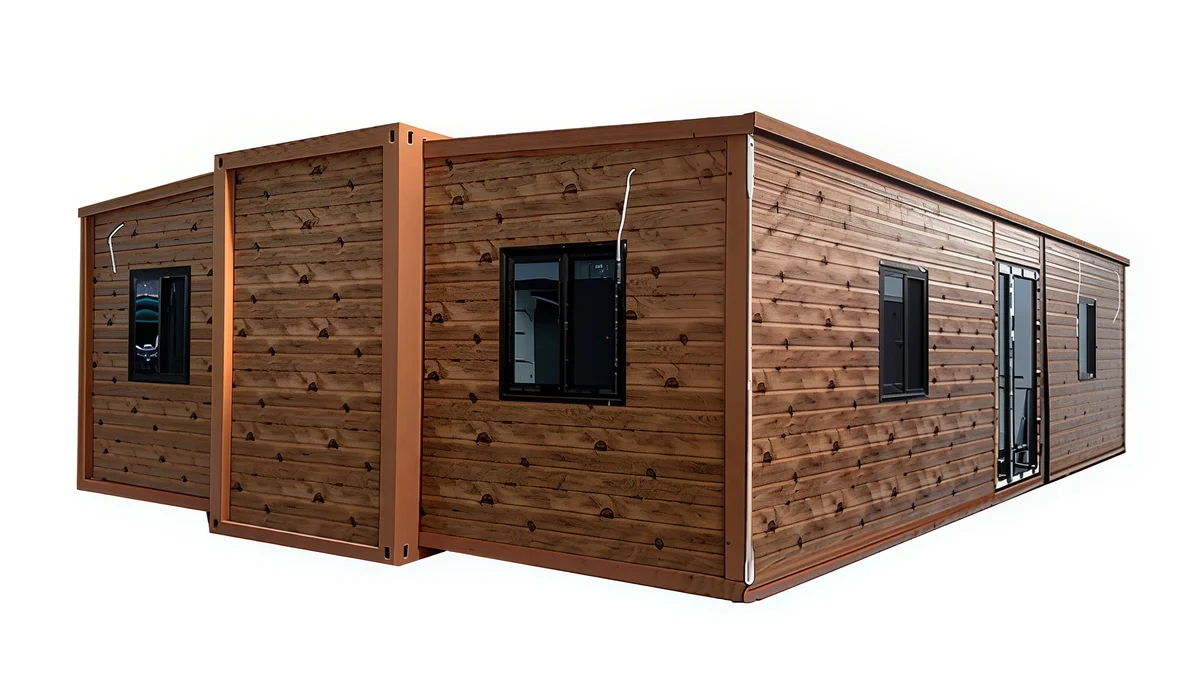

The 40′ Expandable Container Home: High Roof Edition brings you the comfort of a traditional home with the efficiency of a modern modular build. Featuring 3 full bedrooms, a spacious living area, a full kitchen, and a modern bathroom. All under soaring 9’6″ ceilings.

This home is perfect for families, group housing, or off-grid living. Built with anti-corrosion steel, A2 fire-rated panels, and premium materials, it ships flat-packed and expands onsite in just 1–2 days, making it a fast, durable, and beautiful housing solution.

Key Features

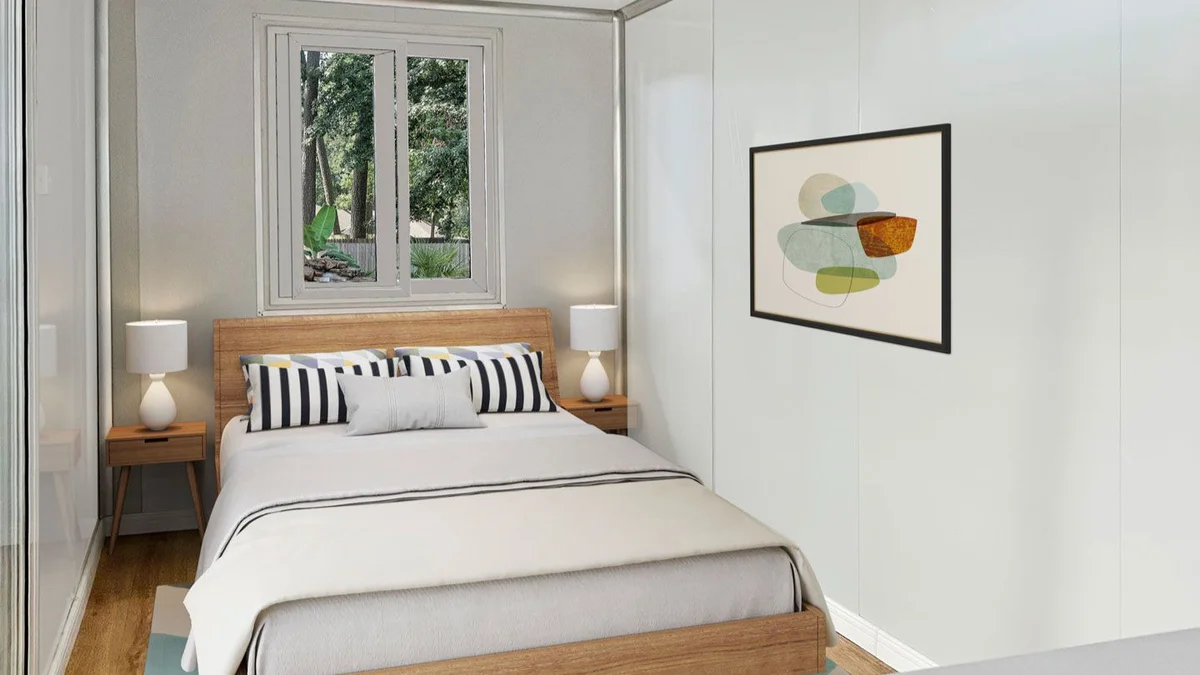

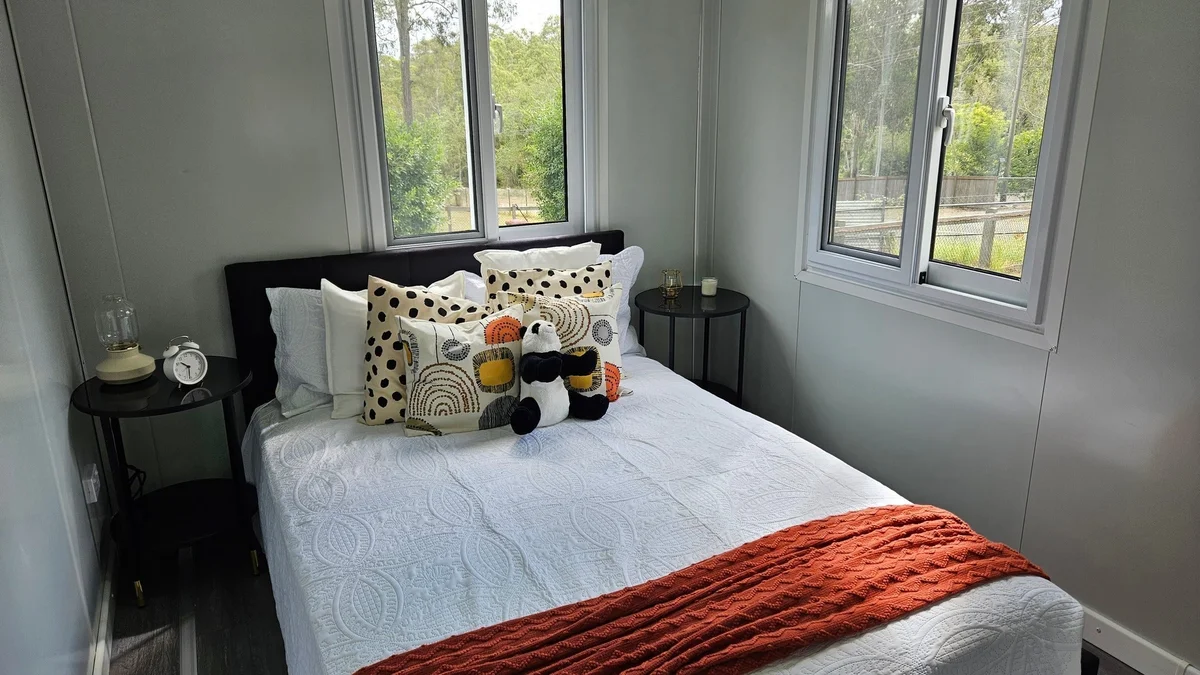

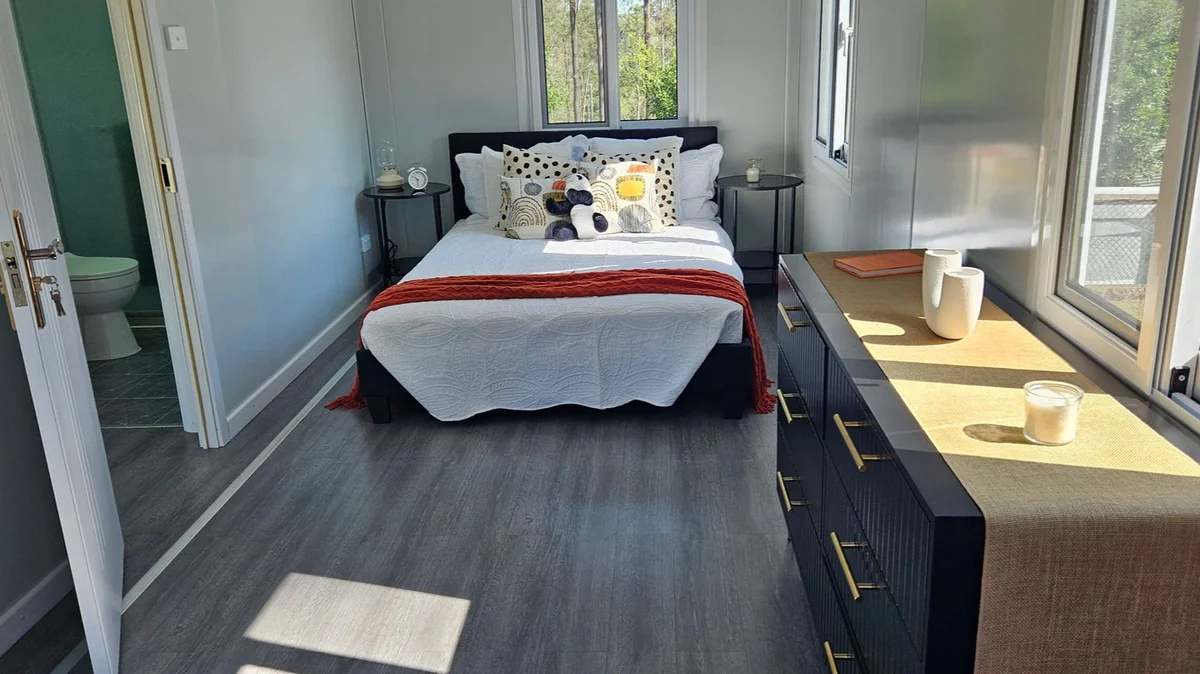

• 3 Full Bedrooms: ~108 SF each, ideal for private sleeping areas

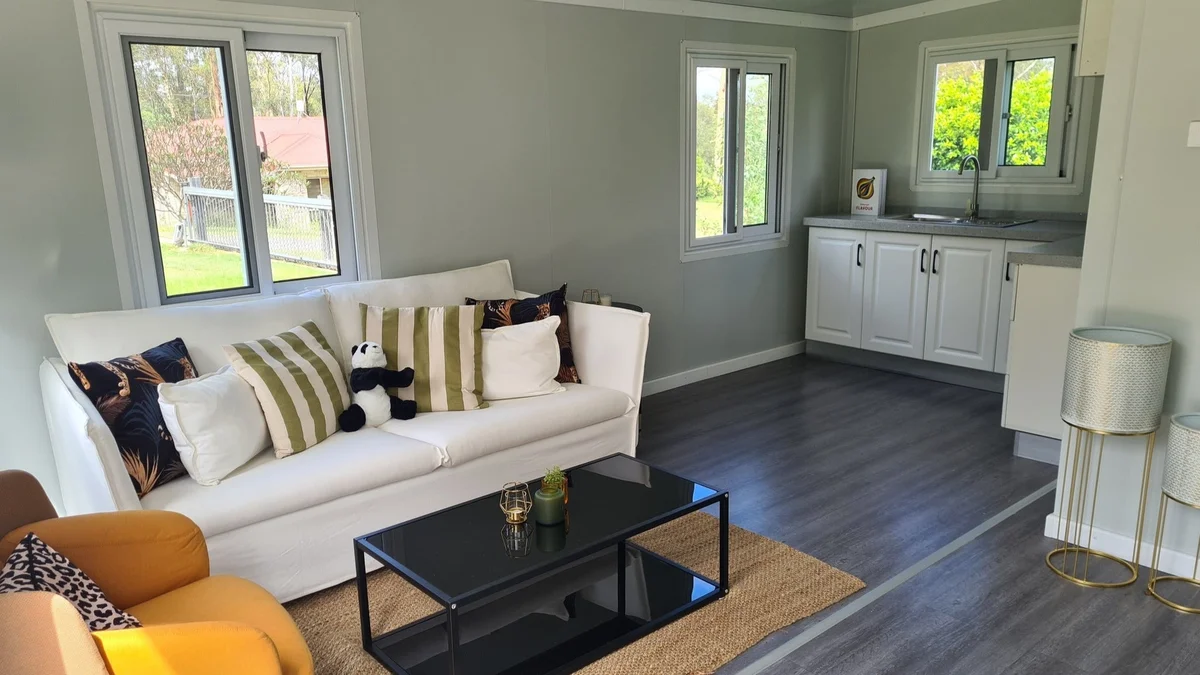

• Expansive Living Room: 354 SF of open space for family gatherings or work

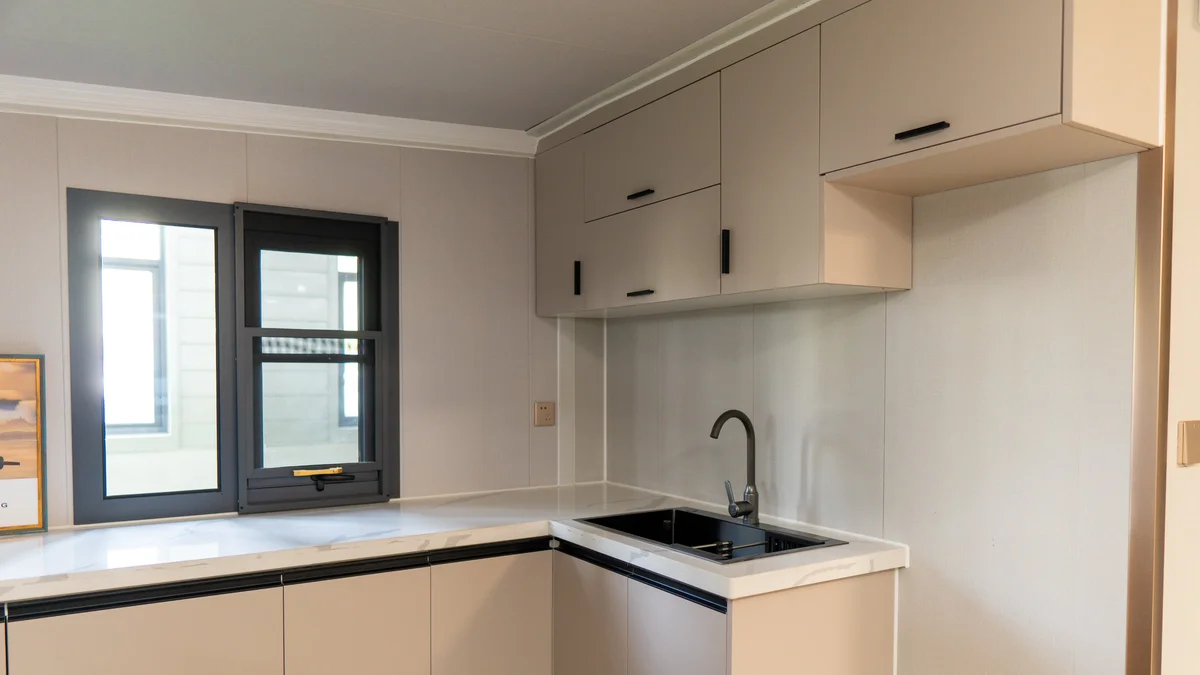

• Kitchen: 8’6″ × 9’1″ with space ready for full-size appliances
• Modern Bathroom: 33 SF, with vanity, shower, and toilet
• High Roof Design: Peak height of 9’6″ for enhanced light and ventilation
• Rapid Deployment: Unfolds and installs in 1–2 days
• Premium Build Quality: Fire-retardant, hurricane-grade wind resistance, soundproof up to 60db

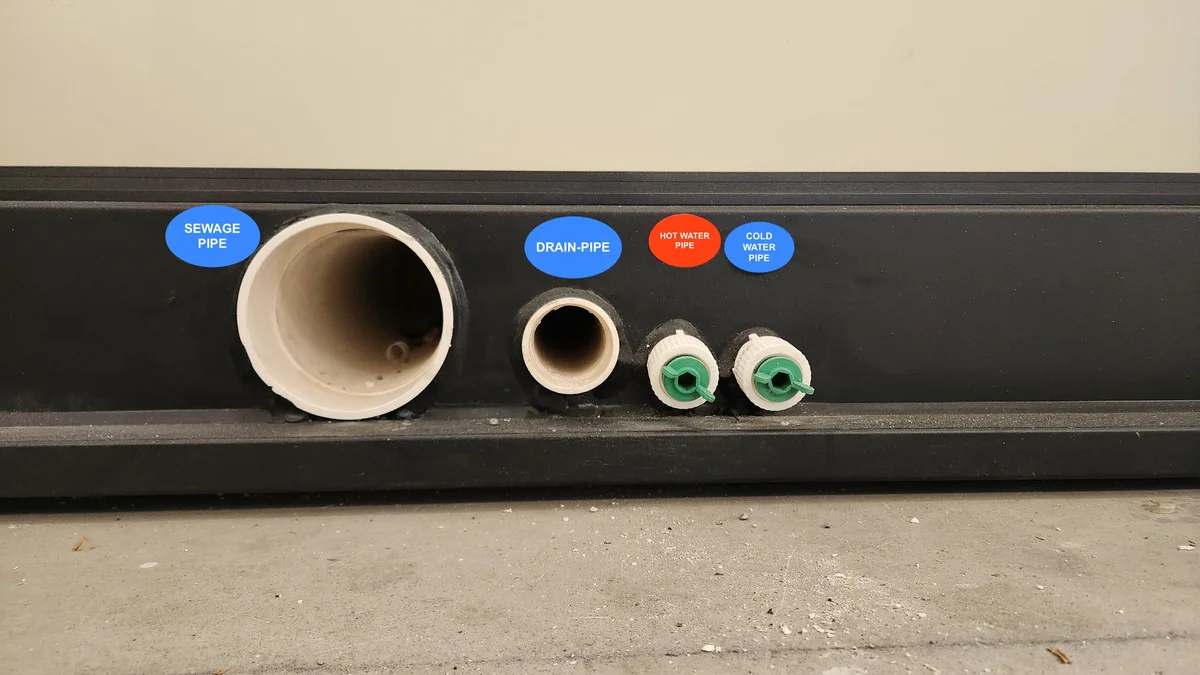

• Utility Ready: Pre-framed for plumbing, electrical, and HVAC
• 50+ Year Life Expectancy: With anti-corrosion frame and weatherproofing

Dimensions

• Expanded Size: 38′ 9″ L × 20′ 5″ W × 8′ 2″ H
• Internal Size: 37′ 10″ L × 19′ 11″ W × 7′ 3″ H
• Folded Size: 38′ 9″ L × 7′ 3″ W × 8′ 2″ H
• Total Living Space: ~805 SF
• Ceiling Heights:
• Lowest: 8′
• Peak: 9’6″
• Room Sizes:
• Bedrooms: ~108 SF each
• Living Room: 12’11” × 27’4.5″ (~354 SF)
• Kitchen: ~77 SF
• Bathroom: ~33 SF

Construction Specifications

• Wallboard: Type 950: 65 mm thick, double-sided 0.3 mm EPS color steel composite
• Frame: Electrostatic-sprayed protective coating + anti-corrosion finish
• Folding Hinges: 130 mm galvanized embedded hinges
• Flooring: 18 mm bamboo glue board + 4 mm SPC stone plastic floor
• Main Roof Panel: Type 950: 50 mm EPS composite + 0.45 mm corrugated veneer
• Interior Ceiling Panels: Type 950: 50 mm EPS composite
• Wing Roof Panels: Type 950: 65 mm EPS composite + 0.45 mm corrugated veneer

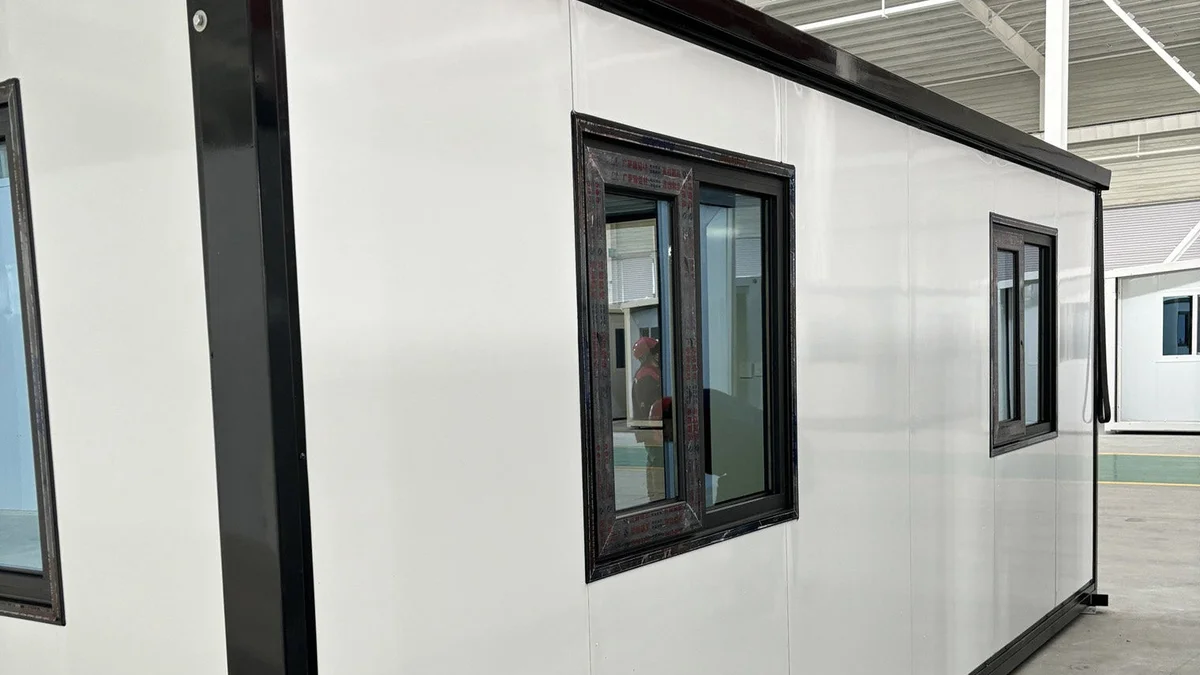

• Windows & Doors: Aluminum alloy double-glass sliding windows, steel fire door (optional broken-bridge aluminum)
• Electrical Systems: Standard pre-wiring; customizable on request

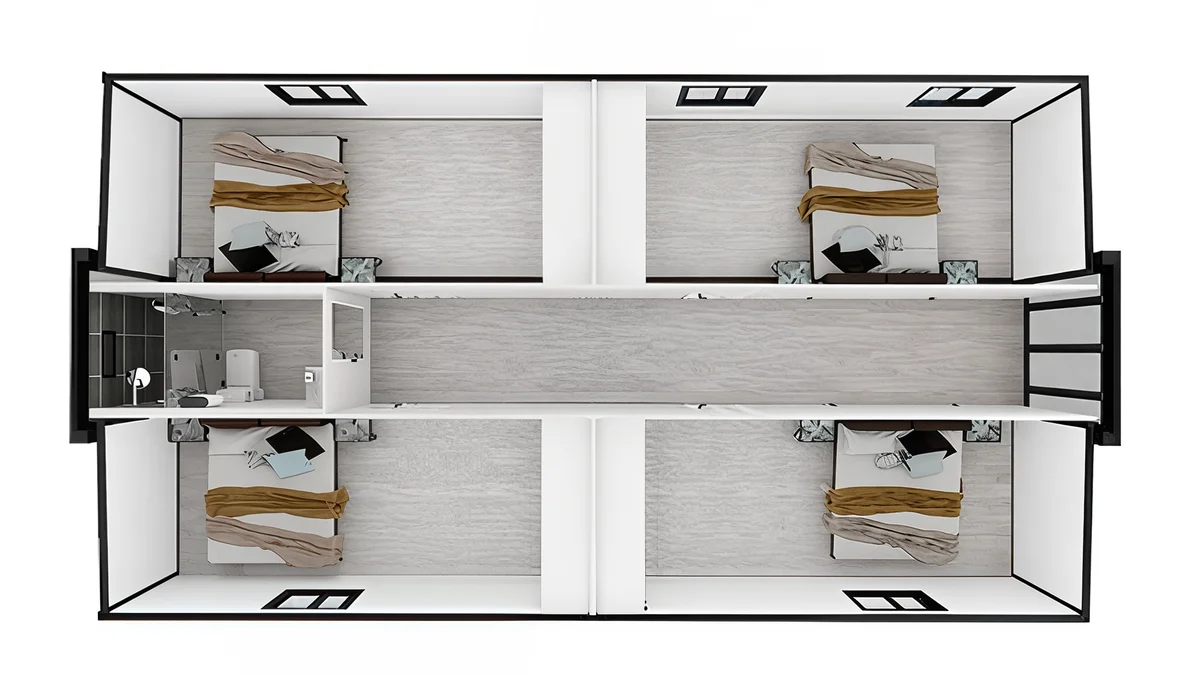

Interior Layout Options

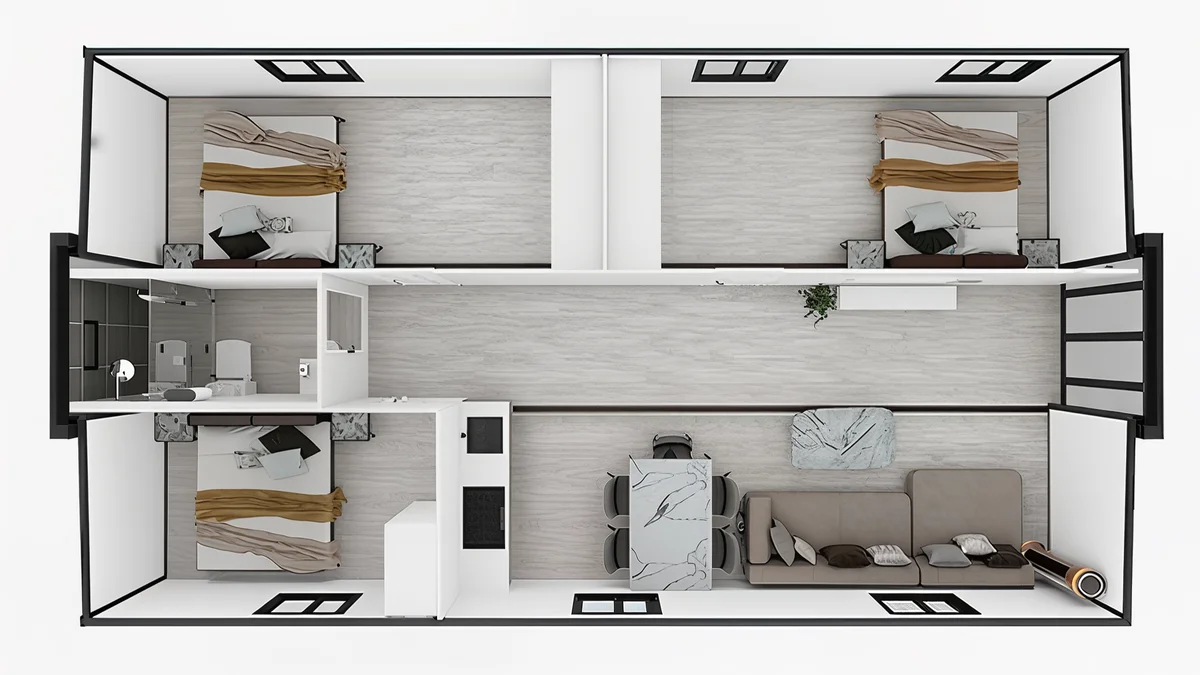

• Option A: Two bedrooms, a study, a living room, kitchen, and bathroom

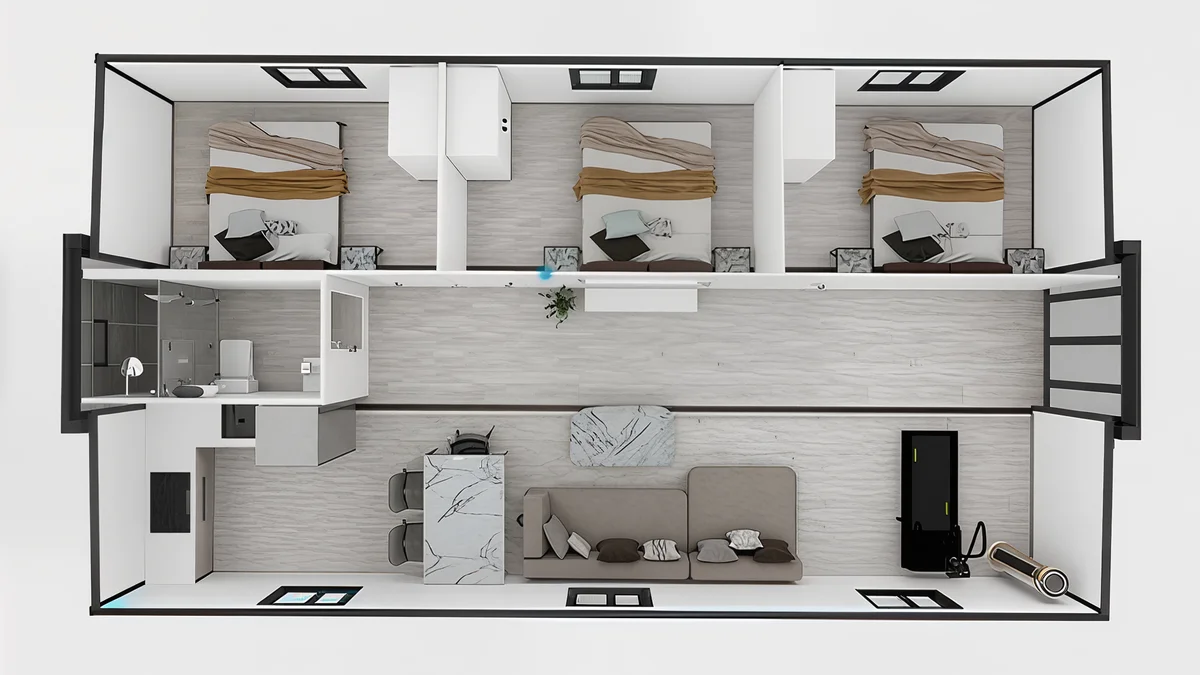

• Option B: Three bedrooms, a living room, kitchen, and bathroom

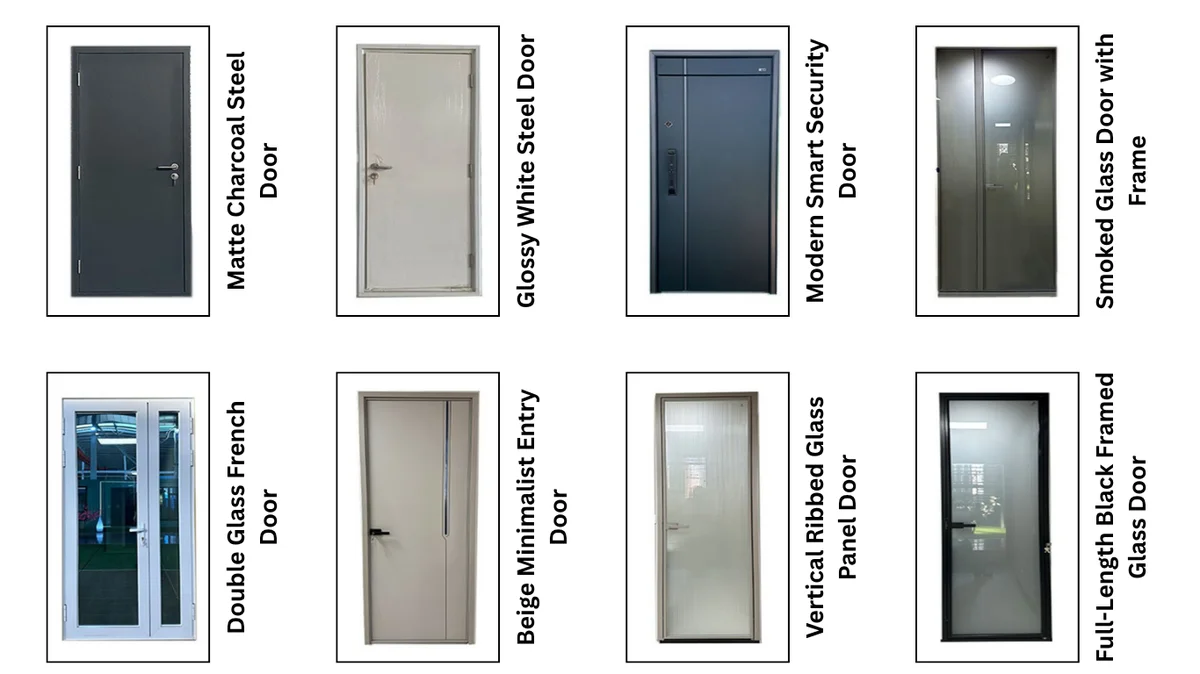

Door & Window Details

• Main Door: Steel fire door (optional broken-bridge aluminum)
• Bathroom Door: Slim Changhong glass

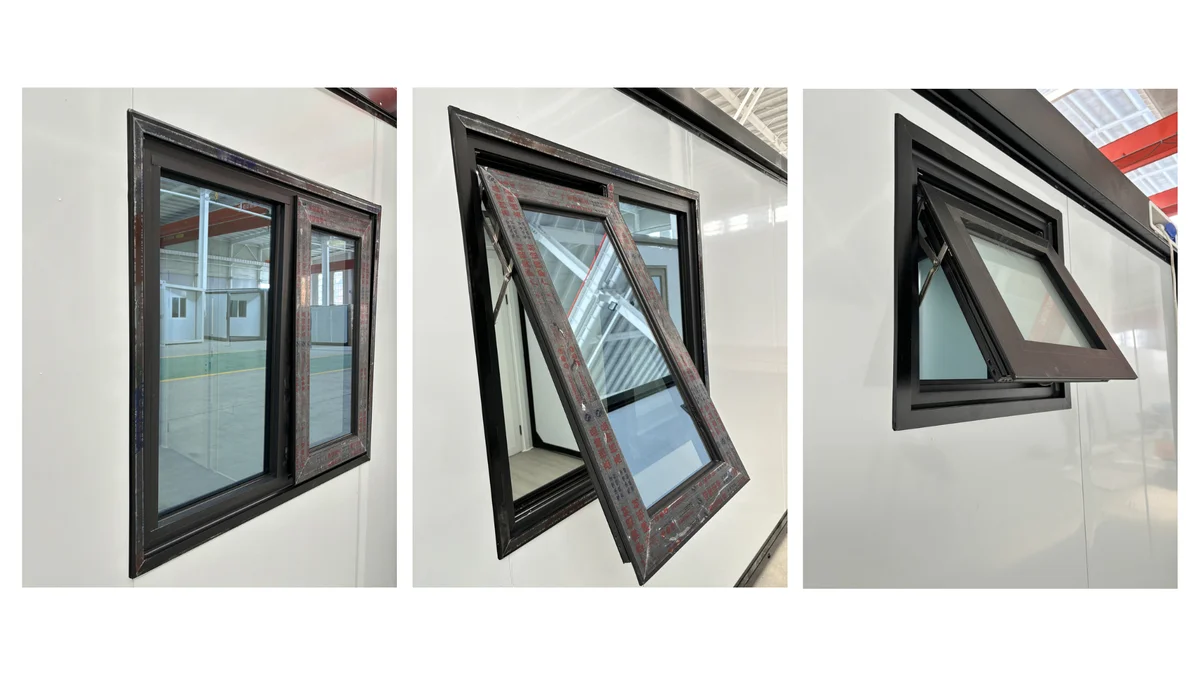

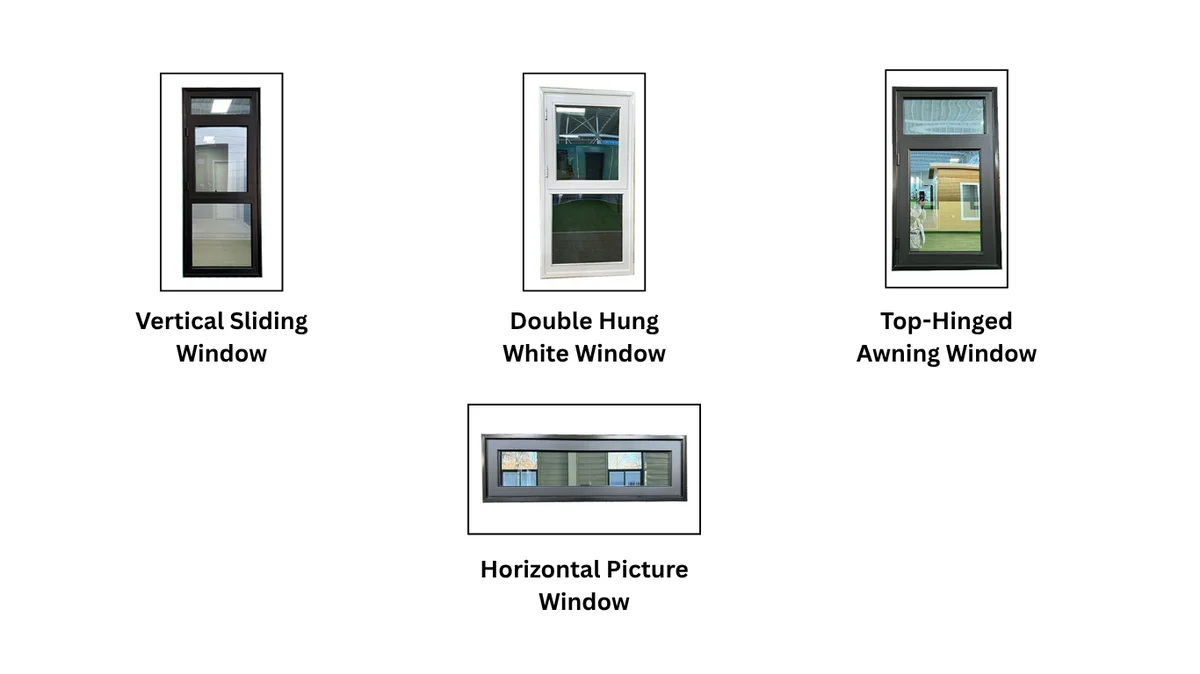

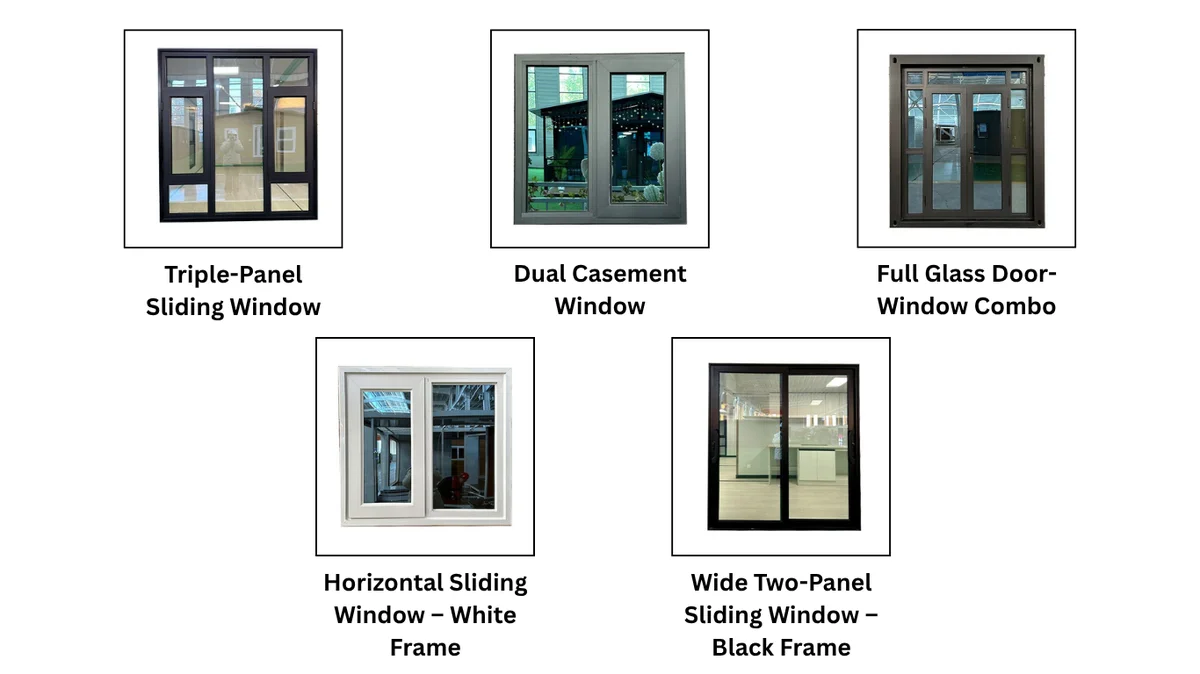

• Windows: Aluminum alloy or broken-bridge aluminum, double-tempered glass

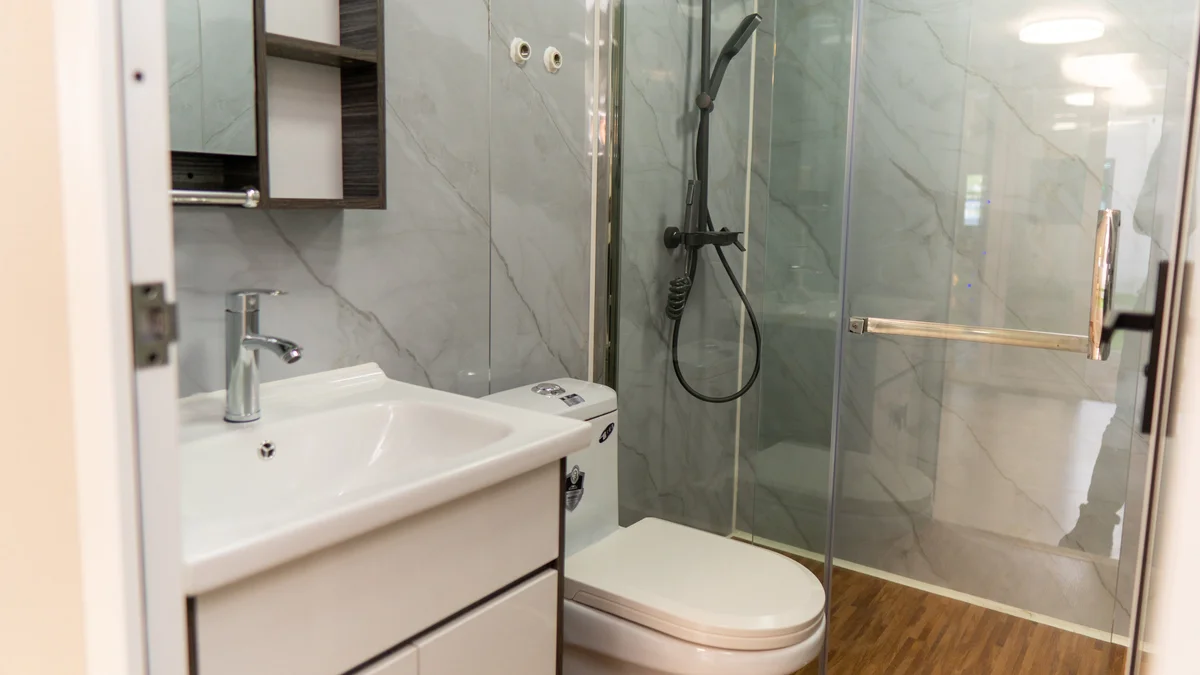

Bathroom Details

Dry/wet separation with Changhong glass swing partition
Fixtures: Copper-core shower, branded wash basin, intelligent mirror cabinet, branded toilet
UV-coated wall panels, SPC stone flooring
Base insulation: Polyurethane with 1.2 mm steel plate protection

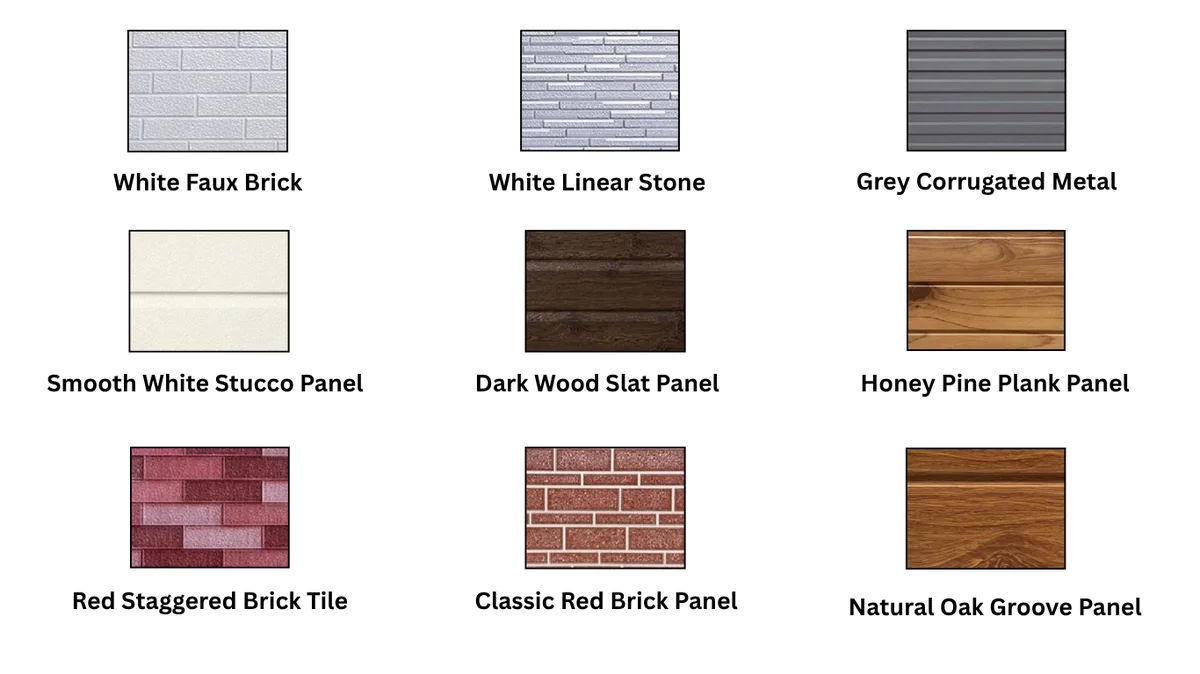

Exterior Wall Panels

Lightweight, high-strength, and weather-resistant
A2 fire protection standard
Customizable colors
Recyclable for reduced waste

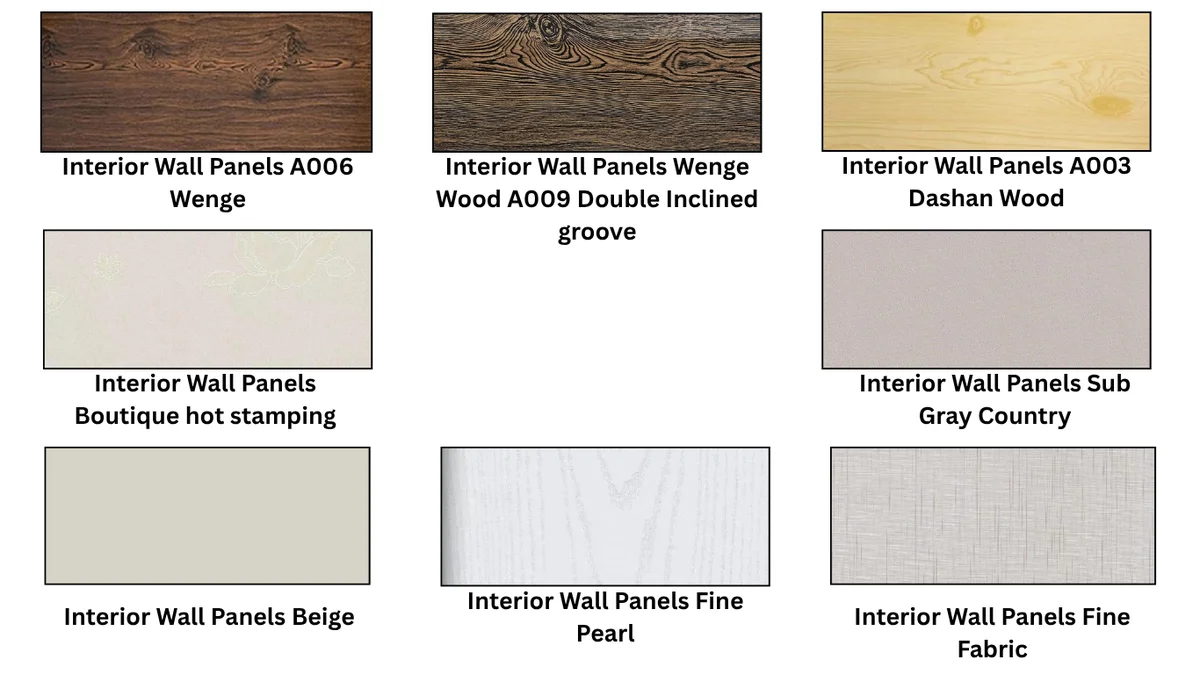

Interior Wall Panel Options

• Beige
• Fine Fabric
• Sub-Gray Country
• Fine Pearl
• Boutique Hot Stamping
• Wenge Wood A009 (Double Inclined Groove)
• A003 Dashan Wood

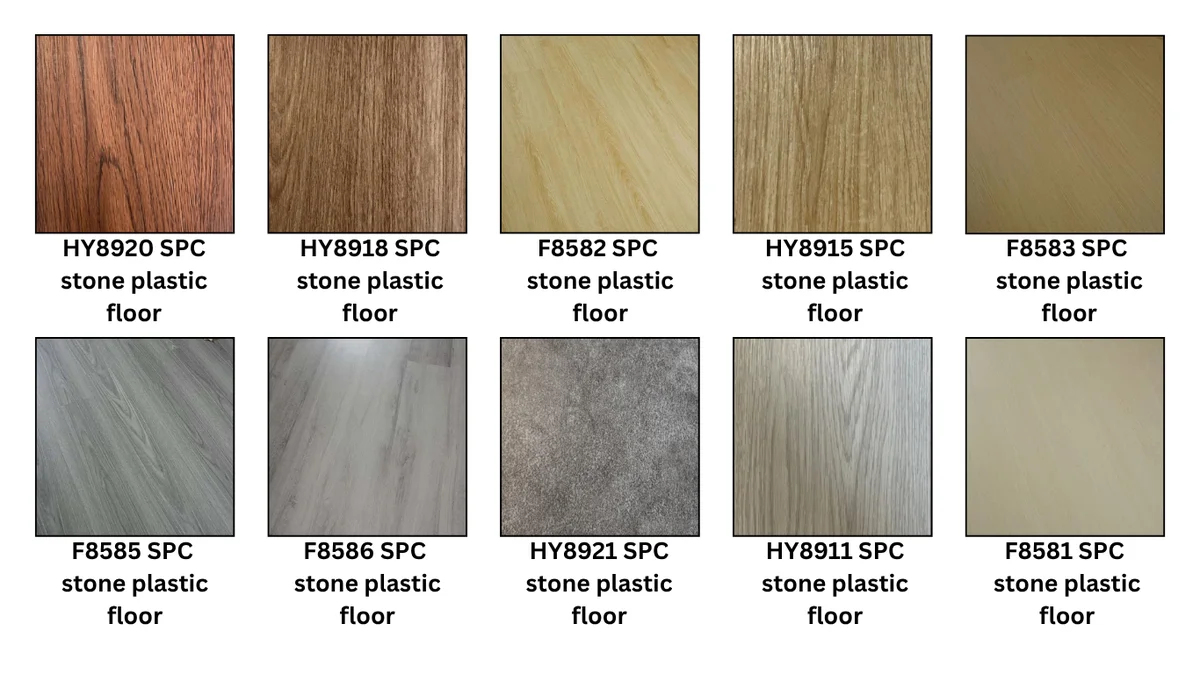

Floor Color Selections

• 4.0 mm SPC Stone Plastic Floor: HY8911, HY8918, HY8920, HY8915, HY8921
• 8.0 mm SPC Stone Plastic Floor: F8581, F8582, F8583, F8585, F8586

Use Cases

• Permanent family residence
• Airbnb or vacation rental
• Guest or staff lodging
• Workforce or NGO housing
• Off-grid living solutions

What’s Included

• 40′ expandable container unit
• Installed windows and doors
• Fully framed interiors (3 bedrooms, living room, kitchen, bathroom)
• Kitchen and bathroom utility layout

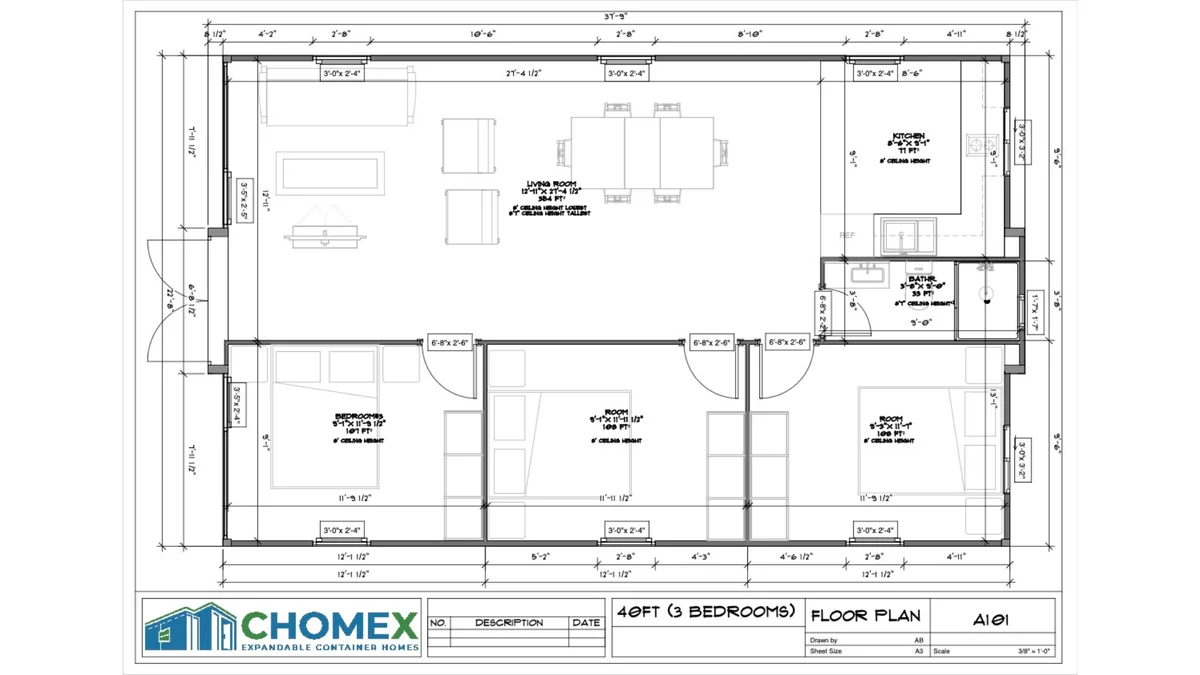

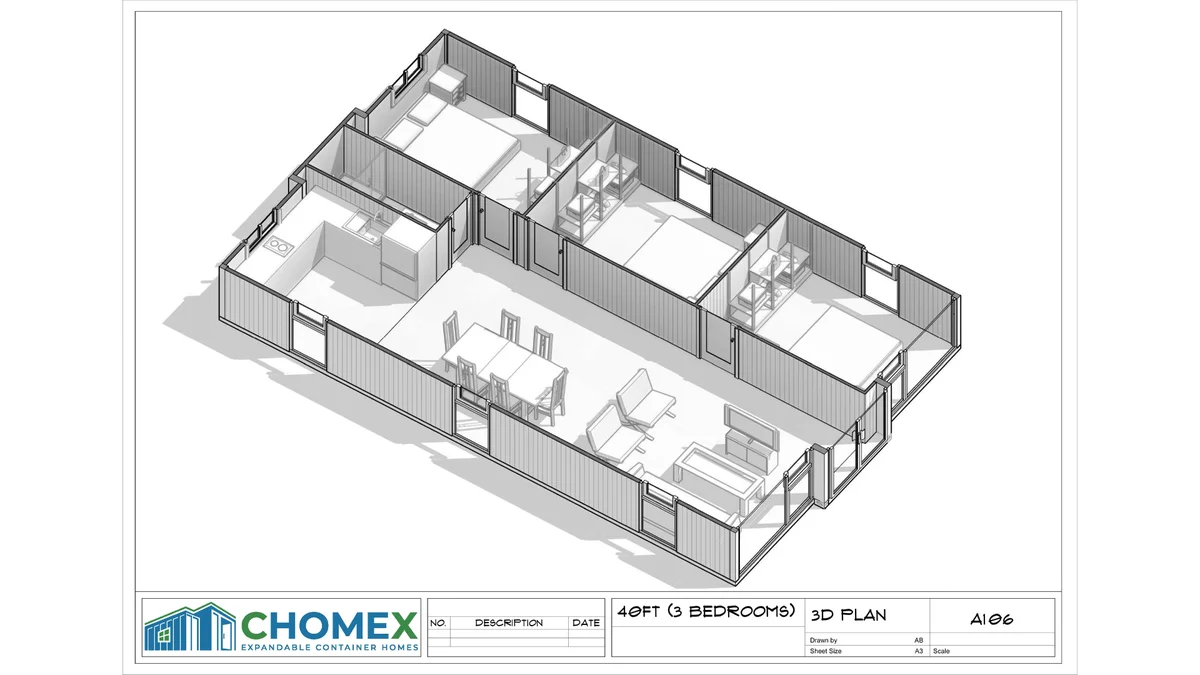

• Complete technical documentation (floor plan, roof plan, elevations, 3D views)

Customization Available

Looking for a studio version or different finishings?
Contact Us for custom configurations or volume orders.
