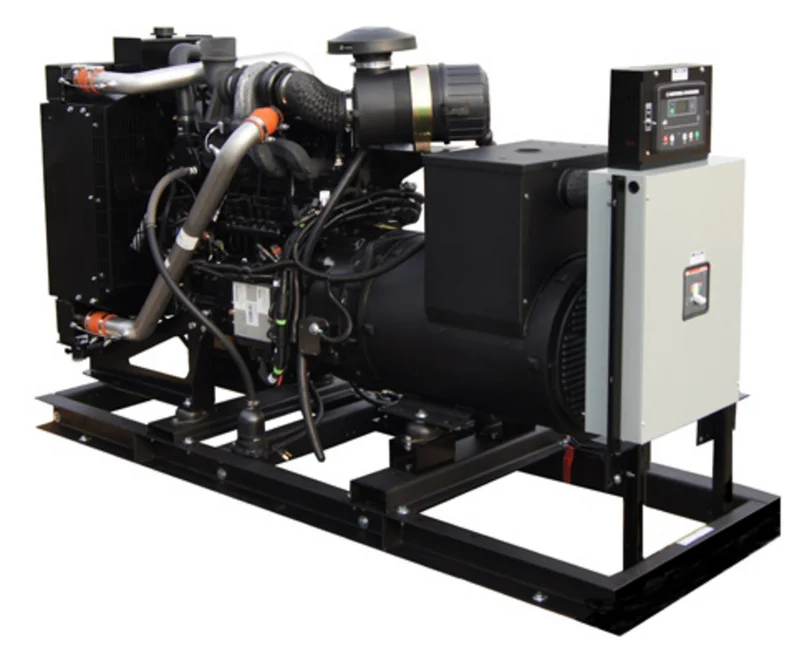

The Gillette SPJD-1000 Standby Generator offers a John Deere diesel engine, single or three phase voltages, and up to 100 kW of power.

FEATURES

• All generator sets are USA prototype built and thoroughly tested. Production models are USA factory built and 100% load tested.
• Solid state, frequency compensated voltage regulation is standard.
• Deep Sea 7420 digital controller allows programming to basic engine functions in the field. Controller has stop-manual-auto mode and engine shutdowns, signaled by full text LCD indicators. Includes power monitoring, event logging, and hour meter.

• Heavy-duty circuit breaker is standard on all gen-sets.
• Battery tray, cables, straps, and charger included.

• Meets NFPA-110 Level 1 when equipped with the necessary accessories and installed per NFPA standards.
• UL-1446 and UL-2200 certified.

ENCLOSURE OPTIONS

• OPEN STYLE – No Enclosure: Gen-set must be placed within a weather protected area, un-inhabited by humans or animals, with proper ventilation. Silencer and flexible exhaust hose are not supplied , as installation requirements are not known. However, these two items are available as optional equipment.
• LEVEL 2 – Aluminum Housing: Full weather protection and superior sound attenuation for specific low noise applications. Critical grade silencer is standard. Average sound level of 75 dBA at 23 ft.

DIESEL FUEL TANK OPTIONS

• Feature double-walls and emergency vents. Designed for generator sub-base installation. UL-142 Certified.
• Available in three sizes: 266 gallons (36 hour runtime), 353 gallons (48 hour runtime) and 533 gallons (72 hour runtime).
• Further descriptions and tank options available here.

• Generator can also be used with customer-supplied fuel tank.


DOWNLOADS

SPJD-1000 Spec Sheet

SPJD-1000 Open Drawing

SPJD-1000 Enclosure Drawing

OPTIONS

• Engine Coolant Heater
• Starting Battery Heater Blanket
• 10A Battery Charger Upgrade
• 20A Battery Charger Upgrade
• 750 CCA 12VDC Starting Battery
• Voltage Selector Switch – modular design rotory cam for switchable voltages: 3PH 208/480 and 1PH 120/240
• Emergency Stop Switch – mounted in a NEMA 4X small enclosure, UL Listed, Suitable for remote locations, Complies with NFPA-110 requirements
• Emergency Stop Switch – mounted in a “Break Glass Station” NEMA 3R small enclosure, UL Listed, Suitable for remote locations, Complies with NFPA-110 requirements
• NFPA-110 Compliance Package: Includes 16 lamp dual (8) display remote annunciators (choice of flush-mount or surface-mount) and a heavy-duty 10A 12/24 VDC battery charger
• External Permanent Magnet Generator (PMG) for improved motor starting capabilities and un-interrupted excitation power
• External Permanent Magnet Generator (PMG) with Digital Voltage Regulator (DVR) for improved motor starting capabilities, un-interrupted excitation power, and RMS sensing
• Critical Grade Silencer Upgrade – for average sound level of 80 dBA at 23 ft with an Open Gen-Set (standard with Level 2 Enclosure)
• Hospital Grade Silencer Upgrade – for average sound level of 70 dBA at 23 ft in a Level 2 Enclosure
• R7 Foam Insulation (4-5 dBA sound reduction)
• Paralleling Package
• Stainless Steel Enclosure
• Generator Enclosure Lights
• Liquid Containment Pan – installed under frame base
• Spring Vibration Mounts
• Motorized Dampers
• Isolator Mounting Pads
• Enclosure Space Heater

• Controller Upgrades and Alarm Interfaces
• Asco 300 Automatic Transfer Switch (See Accessories Tab for a partial listing or follow this link for a full listing)

• Five Year Extended Warranty
