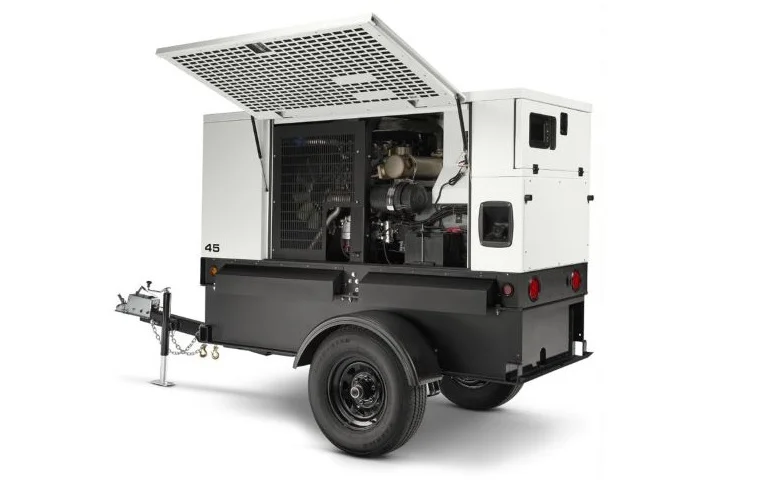

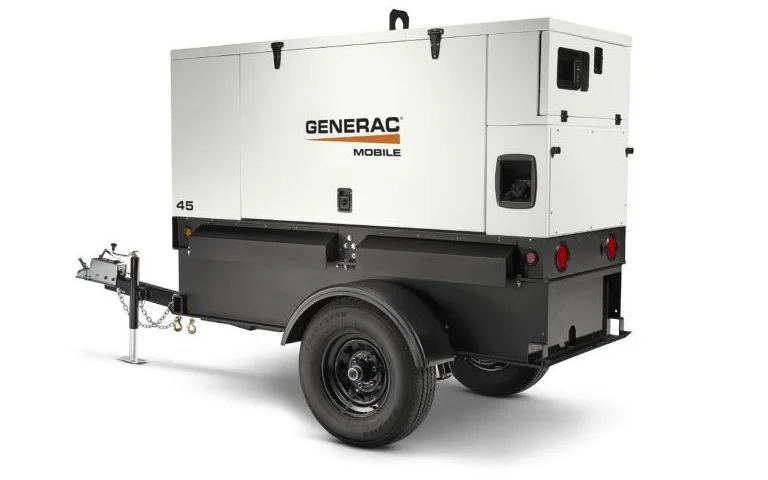

The Generac Mobile MMG45IF4 Diesel Generator offers an Isuzu diesel engine, 27 hour runtime, and up to 40 kW of power at a quiet 65 dBA.

GENERATOR FEATURES

• Isuzu diesel engine – EPA Tier 4 Final approved.
• Electronic isochronous governing.
• Idle switch.
• Voltage regulation +/- 0.5% with Magnum PM600 Voltage Regulator.
• Marathon Electric Superstart generator.
• Polyethylene single-wall fuel tank with 120% containment.
• Voltage Selector Switch – three position.
• Power Zone controller with backlit color display and push buttons (see spec sheet below for details)
• Lockable control box door with diagnostics window.
• Lockable lug box with safety switch.
• Remote start/stop contacts located in lug box.
• Output ground connection lug inside lug box.
• 225A main breaker with shunt trip.
• Convenience receptacles with individual breakers.
• 720 CCA wet cell battery.
• Lockable battery disconnect.
• Panel lighting for breakers, lugs, and selector switch.
• 110% Liquid Containment (including oil, coolant, and fuel).
• CSA Certified.

ENCLOSURE FEATURES

• Fully-lockable aluminum sound-attenuated enclosure.
• UV and fade resistant, high temperature cured, white polyester powder paint.
• Emergency stop switch located on outside of enclosure.
• Central lifting point.
• Multi-lingual operating/safety decals.
• Document holder with operating manual including AC/DC wiring diagrams.
• Interior cabinet lighting.

OPTIONAL MTG45 TRAILER (MTG032) FEATURES

• DOT approved lighting.
• Transportation tie downs.
• Safety chains with spring loaded safety hooks.
• Surge brakes standard.
• 2″ Ball hitch standard.
• 5000 lb. single axle.
• 2000 lb. tongue jack with footplate.
• P225/75R15 tubeless tires – 6 ply.

DOWNLOADS

MMG45IF4 Spec Sheet

MMG45IF4 Operating Manual

GENERATOR OPTIONS

• Single Set Female Camlock Connections – (GIF1CAM) – ADD $516.00
• Camlock Cover – (GIF-CAMCOVER) – ADD $139.00
• Buck Transformer Kit – (GIF-BUCK) – ADD $611.00
• 4-Position Voltage Selector Switch – (GIF4PSW) – ADD $738.00
• PMG Generator – (GIF-PMG) – ADD $1,533.00
• DVR (includes required PMG) – (GIF-DVR) – ADD $3,401.00
• Alternate Loading Device – (GIF-ALD) – ADD $5,160.00

ENGINE OPTIONS

• Positive Air Shutoff (electronic) – (GIF-PAS) – ADD $2,637.00

• 10 Amp Battery Charger – (GIF-CHARGER10) – ADD $560.00

• AGM Sealed Battery (Optima) 720 CCA – (GIF-AGMBATT) – ADD $348.00


COLD CLIMATE OPTIONS

• 60/40 Coolant – (GIF-6040) – ADD $87.00

• Block Heater – (GIF-HEATER) – ADD $475.00

• Dual Heated Fuel Filter – (GIF-HHF2) – ADD $318.00

• CCV Heater – (GIF-CCV) – ADD $590.00


FUEL OPTIONS

• Extended Run 160 Gallon Fuel Tank (Requires Tandem Axle Trailer) – (GIF-160TANK) – ADD $3,260.00
• Extended Run 350 Gallon Fuel Tank w/ 110% Engine Fluid & Fuel Liquid Containment (Requires Tandem Axle Trailer) – (GIF-350TANK) – ADD $8,600.00
• Auxiliary Tank 3-Way Fuel Valve – (GIF-3VALVE) – ADD $690.00


TRAILER OPTIONS

• MTG45T Tandem-axle Trailer – $3,392.00
• Hitch Options (2″ Ball Hitch is standard):
  • 2″ Bulldog – (HITCH-2BULLDOG) – ADD $159.00

  • 2-5/16″ Ball – (HITCH-2516BALL) – ADD $159.00

  • 3″ Lunette Ring – (HITCH-3RING) – ADD $159.00

• Electric Brakes.

• Rear Stabilizer Jacks – (GIF-STABJACKS) – ADD $300.00

• Spare Tire and Carrier – (GIFTIRE) – ADD $950.00

• Vehicle Recovery System – (GIF-LOJACK) – ADD $632.00

• Black Poly Front-Mount Toolbox (49″ L x 15″ W x 18.5″ H) – (GIF-TOOLBOXBLK) – ADD $995.00

• Aluminum Front-Mount Toolbox (49″ L x 15″ W x 18.5″ H) – (GIF-TOOLBOXALU) – ADD $1,368.00

• 5 lb. Fire Extinguisher – (GIF-FIREEXT5) – ADD $455.00
