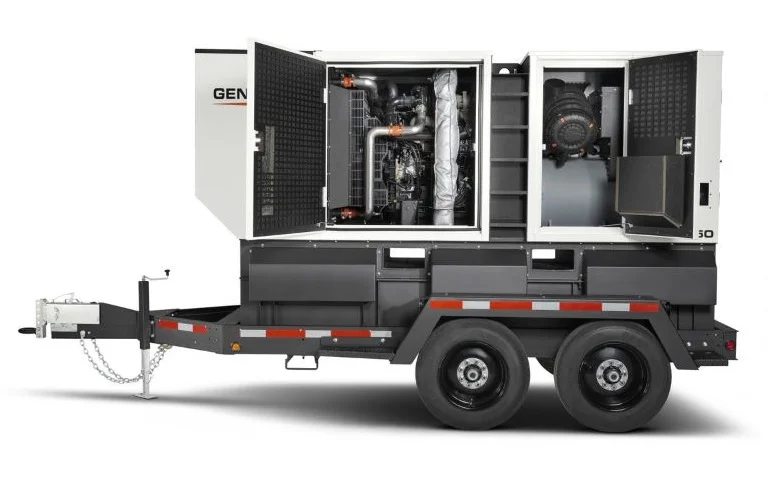

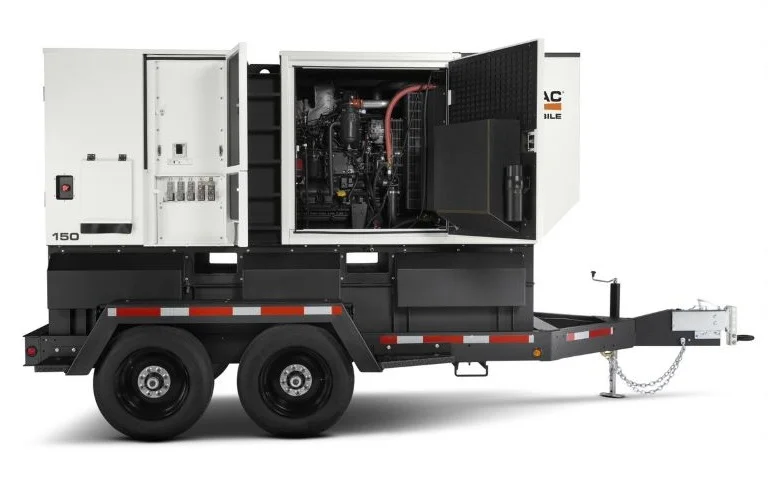

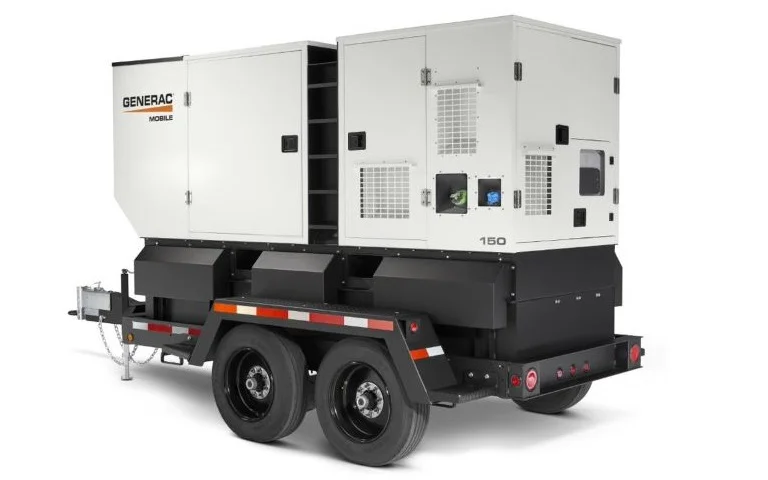

The Generac Mobile MDG150DF4 Diesel Generator offers a John Deere diesel engine, 39 hour runtime, and up to 144kW of power at a quiet 75 dBA.

GENERATOR FEATURES

• John Deere diesel engine – EPA Tier 4 Final.
• Exhaust Temperature Management (EMT) System to minimize wet-stacking.
• SCR and DOC after-treatment system.
• Electronic isochronous governing.
• Voltage regulation +/- 1.0% with PM600 Voltage Regulator.
• Marathon Electric brushless generator.
• Voltage Selector Switch – three position.
• Power Zone controller with color display and push buttons (see spec sheet below for details)
• Lockable control box door with diagnostics window.
• Lockable lug box with safety switch.
• Remote start/stop contacts located in receptacle box.
• Output ground connection lug inside lug box.
• 600A main breaker with shunt trip.
• Convenience receptacles with individual breakers.
• CSA Certified.

ENCLOSURE FEATURES

• Fully-lockable aluminum sound-attenuated enclosure.
• UV and fade resistant, high temperature cured, white polyester powder paint.
• Emergency stop switch located on outside of enclosure.
• Central lifting point.
• Large fork pockets.
• Multi-lingual operating/safety decals.
• Document holder with operating manual including AC/DC wiring diagrams.

OPTIONAL MTG150 TRAILER FEATURES

• DOT approved lighting.
• Transportation tie downs.
• Safety chains with spring loaded safety hooks.
• Surge brakes standard.
• 3″ Pintle Ring hitch standard.
• Tandem 8000 lb. axles.
• 10,000 lb. tongue jack with footplate.
• ST215/75R17.5 tubeless tires – 10 ply.

DOWNLOADS

MDG150 Spec Sheet

Magnum MDG Mobile Diesel Generators Brochure

EMT System Brochure

GENERATOR OPTIONS

• Superstart Generator – (MDG-SSGEN150) – ADD $3,846.00
• Female Camlock Connections (2 Sets) – (MDG-CAMS4) – ADD $1,982.00
• Buck Transformer – (MDG-BUCK) – ADD $612.00
• 4-Position Voltage Selector Switch – (MDG- 4VSS) – ADD $3,740.00
• PMG – (MDG-PMG) – ADD $879.00
• DVR (2000E – Includes Required PMG) – (MDG-DVR) – ADD $3,345.00
• Paralleling – (MDG-PARALLEL250) – ADD $14,156.00

ENGINE OPTIONS

• Positive Air Shutoff (electronic) – (MDG-PAS) – ADD $2,640.00

• 10 Amp Battery Charger – (MDG-CHARGER10) – ADD $560.00

• Battery Disconnect – (MDG-BATTDISC) – ADD $402.00

• Oil Makeup – (MDG-OILMAKEUP) – ADD $1,425.00

COLD CLIMATE OPTIONS

• 60/40 Coolant – (MDG-6040) – ADD $140.00

• Block Heater – (MDG-HEAT) – ADD $758.00

• Battery Heater – (MDG-BATHEAT) – ADD $317.00
• Oil Pan Heater – (MDG-OILHEAT) – ADD $236.00
• CCV Heater (with Buck Transformer) – (MDG-CCVBUCK) – ADD $2,035.00

• Heated Fuel Filter (with Buck Transformer) – (MDG-HFFBUCK) – ADD $1,205.00


FUEL TANK OPTIONS

• Double-Wall Fuel Tank with 110% Liquid Containment (Oil, Coolant, DEF, Fuel) – (MDG-110CON2W) – ADD $6,002.00

• Extended-Run 515-Gallon Double-Wall Fuel Tank with 110% Liquid Containment (Oil, Coolant, DEF, Fuel) – (MDG-515TNKCON) – ADD $7,235.00

• Extended Run Fuel Transfer System (includes Fuel/DEF Ports & Pumps; works with Transcube external tanks – sold separately; see Brochure for further details) – (MDG-FTS) – ADD $3,681.00


TRAILER OPTIONS

• Electric Brakes.
• Rear Stabilizer Jacks – (MDG-STABJACKS) – ADD $515.00
• Spare Tire and Carrier (Standard Tandem-Axle Trailer) – (MDG-TIRE) – ADD $988.00
• Spare Tire and Carrier (515-Gallon Extended Run Fuel Tank Trailer) – (MDG-515TIRE) – ADD $997.00
• Lojack Vehicle Recovery System – (MDG-LOJACK) – ADD $685.00
• Aluminum Storage Box – (MDG-TOOLBOXALU) – ADD $1,685.00
• 5 lb. Fire Extinguisher – (MDG-FIREEXT5) – ADD $464.00
