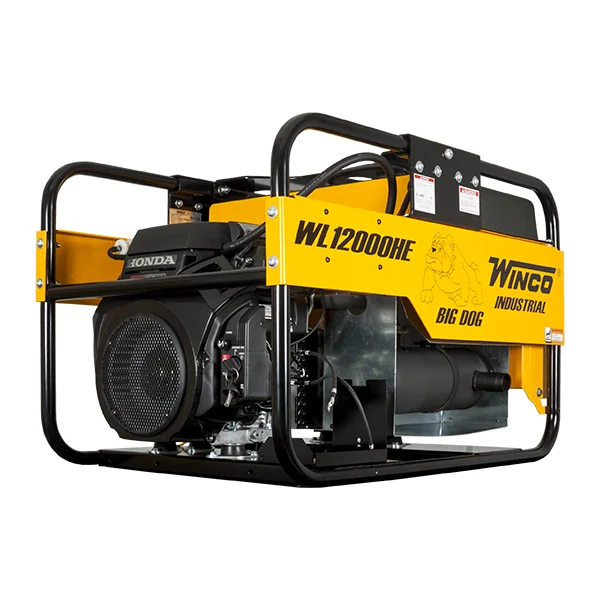

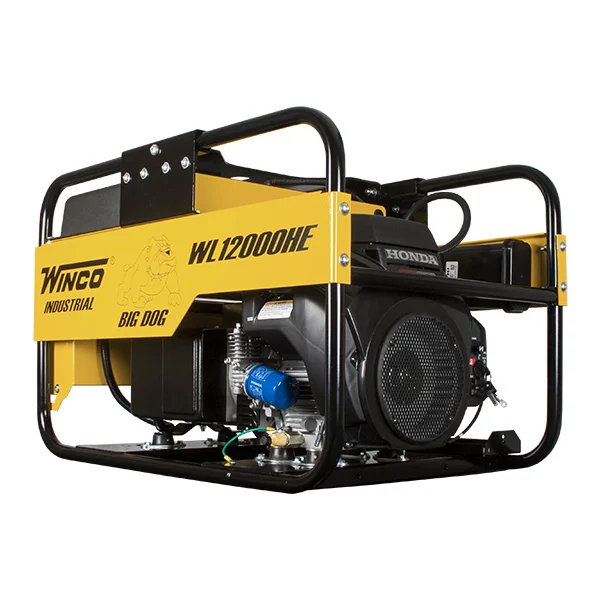

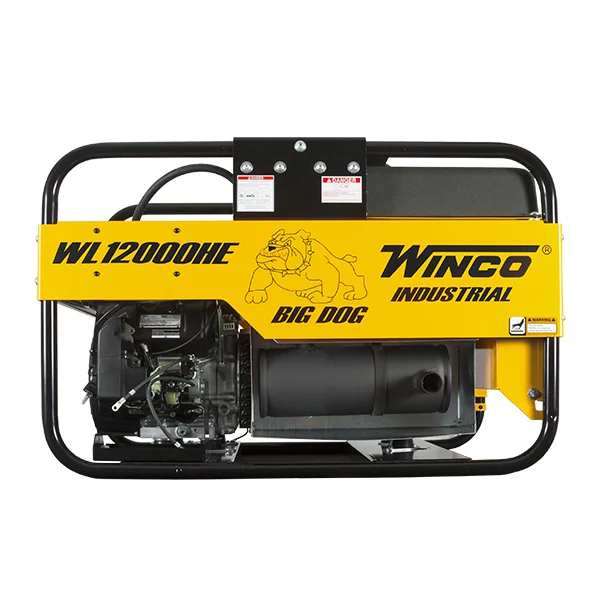

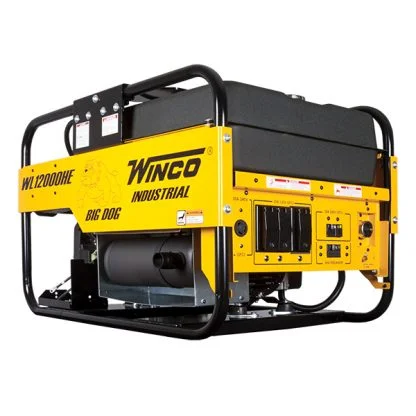

The Winco WL12000HE Portable Generator offers a Honda GX630 engine, electric start, up to 12 kW of power, and a 60A 14-60R receptacle compatible with building distribution panels.

FEATURES

• Ideal for flat top roofing industry and other construction/industrial applications.
• Sturdy Wrap Around Cradle: 14 Gauge, welded, tubular steel provides industrial strength support.
• Powder coat paint for an incredibly strong finish.
• Premium Circuit Breaker provides a clear and instant indication of a tripped circuit.

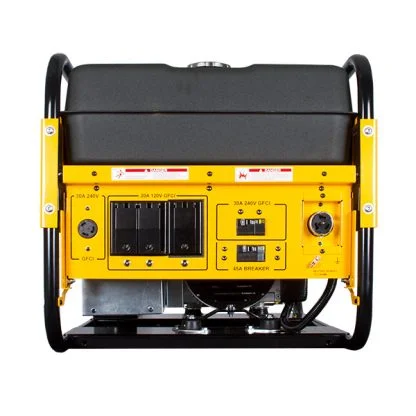

• Generous receptacle package.
• NEMA 5-20R GFCI receptacles fitted with UL listed metal covers for protection against the elements.
• 14-60R receptacle compatible with building distribution panels.
• YourGen Meter displays hours, RPMs, voltage, and frequency readings, verifies the load balance with a load bar display, and shows warnings when a parameter is outside of normal range and when an oil change is needed.
• 3.5 hp motor starting ability (Code G).
• Steel 15 gallon fuel tank for 9.4 hours of full load run time.
• Standard lifting eye.

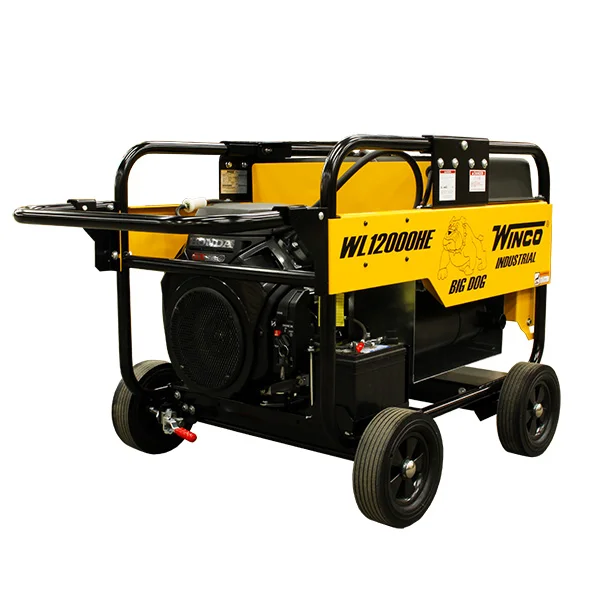

• Four wheel kit optional.

Engine Features

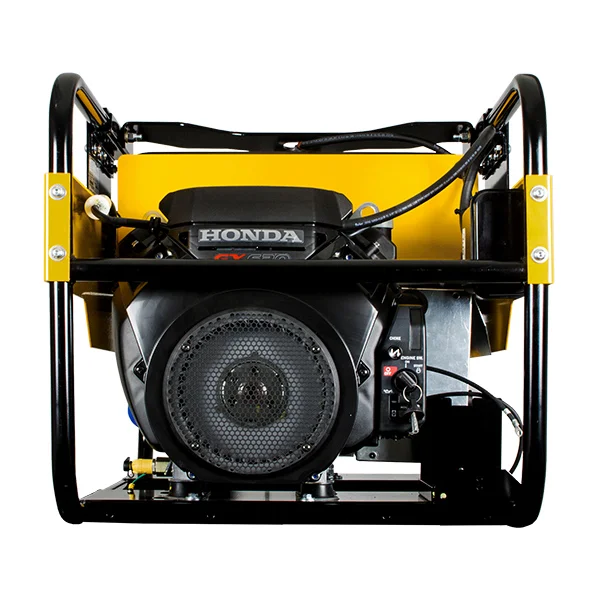

• Honda GX630 V-Twin OHV commercial grade engine.
• Cast iron cylinder sleeves.
• Low oil protection.
• Full pressure oil lube with spin-on filter.
• CARB and EPA Certified.

DOWNLOADS

WL12000HE Spec Sheet

WL12000HE Manual

WL12000HE Drawing
