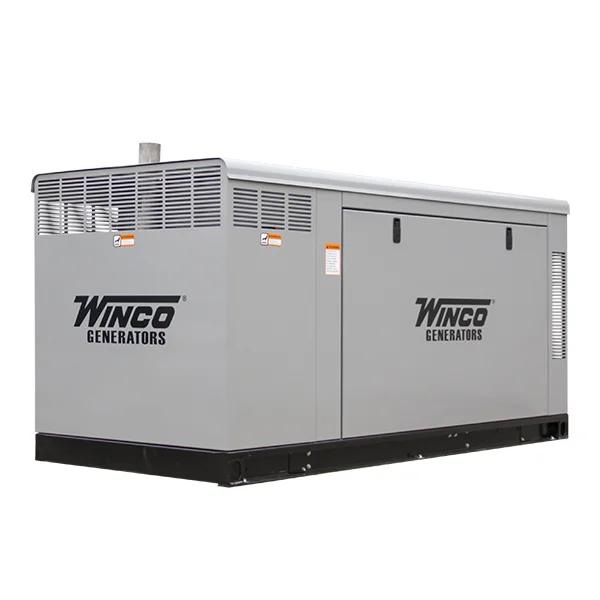

Winco PSS65 Emergency Standby Generator (65kW)
March 28, 2026
Winco PSS21 Emergency Standby Generator (21kW)
March 28, 2026
Winco PSS30 Emergency Standby Generator (30kW)
Call for PricingRequest a Quote

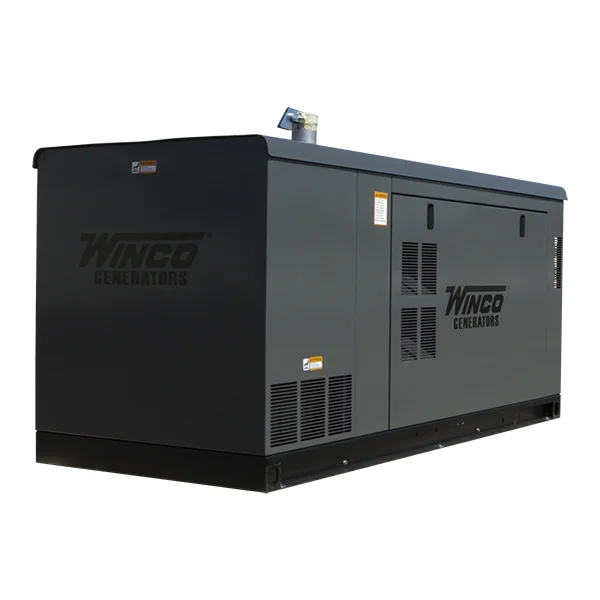

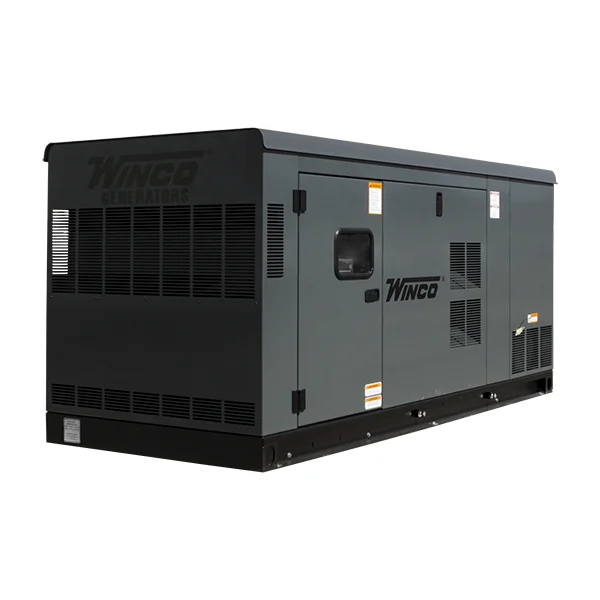

The Winco PSS30 packaged standby system offers up to 28kW of continuous power from Propane or 27kW of power from Natural Gas. This model uses an industrial Ford engine and a brushless industrial generator end. Available with or without an enclosure.
Or call us: (888) 481-8845
The Winco PSS30 packaged standby system offers up to 28kW of continuous power from Propane or 27kW of power from Natural Gas. This model uses an industrial Ford engine and a brushless industrial generator end. Available with or without an enclosure.
| Model | Phase, Voltage, Power Factor |
LP Gas kW, kVA, Amps |
Natural Gas kW, kVA, Amps |
| PSS30-3 | 1 Phase, 120/240V, 1.0pf |
28kW, 28kVA, 116A |
27kW, 27kVA, 112A |
| PSS30-4 | 3 Phase, 120/208V, 0.8pf |
28kW, 35kVA, 97A |
27kW, 33.7kVA, 93A |
| PSS30-17 | 3 Phase, 120/240V, 0.8pf |
28kW, 35kVA, 84A |
27kW, 33.7kVA, 81A |
| PSS30-18 | 3 Phase, 277/480V, 0.8pf |
28kW, 35kVA, 42A |
27kW, 33.7kVA, 40A |
FEATURES
- Ford MSG-425 engine with low oil protection.
- Brushless industrial generator end available in all common voltages.
- Voltage regulation of +/-1%.
- 5A Battery charger.
- 120V Coolant heater with thermostat.
- DSE 7310 digital controller offers user-friendly displays, engine and gen-set protections, communication options, alarms, engine exerciser, event log, and more.
- Galvanealed Steel Weather Enclosure with critical grade muffler reduces noise output to 75 dBA at 23 ft.
- 100% load tested.
- UL 2200 Listed.
- EPA Approved (for Standby only)
- CSA Approved.
DOWNLOAD
OPTIONS

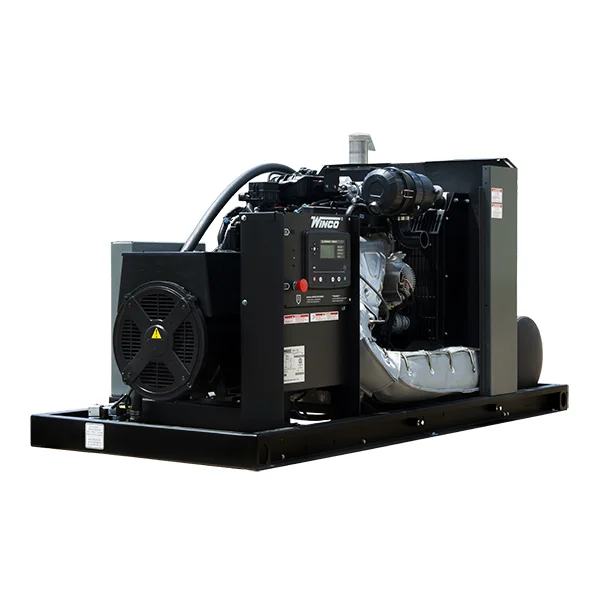

- Open Skid version (no enclosure)
- Vapor Fuel Strainer (3/4″)
- LP Liquid Withdrawal (not UL certified)
- 10A Battery Charger Upgrade with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- NFPA 110 Level 1 Compliant Upgrade
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
| Brand | Winco |
|---|---|
| Weight | 1396 lb. |
| Dimensions | 81 x 36 x 44 (Enclosed) |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | Ford MSG-425, 4-Cylinder, 1800 rpm |
