Winco PSS21 Emergency Standby Generator (21kW)
Call for PricingRequest a Quote

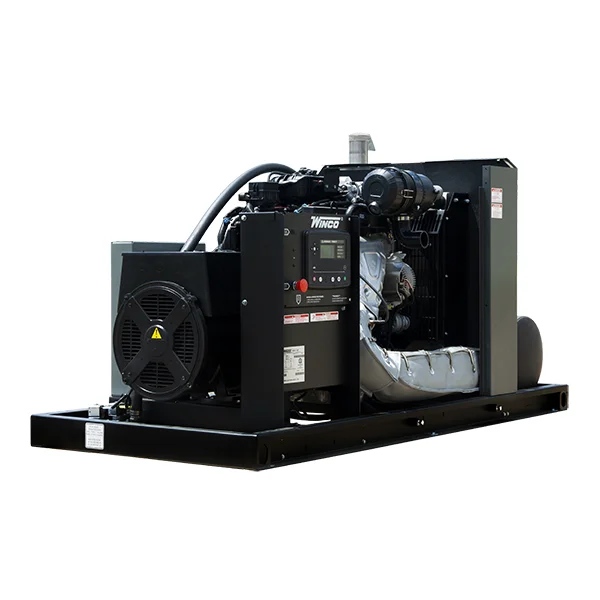

The Winco PSS21F4 packaged standby system offers up to 24kW of standby power from Propane or Natural Gas. This model uses an industrial Ford engine and a brushless industrial generator end. Available with or without an enclosure.
Or call us: (888) 481-8845
The Winco PSS21F4 packaged standby system offers up to 24kW of standby power from Propane or Natural Gas. This model uses an industrial Ford engine and a brushless industrial generator end. Available with or without an enclosure.
| Model | Phase, Voltage, Power Factor |
LP Gas kW, kVA, Amps |
Natural Gas kW, kVA, Amps |
| PSS21F4-03 | 1 Phase, 120/240V, 1.0pf |
21kW, 21kVA, 88A |
21kW, 21kVA, 88A |
| PSS21F4-04 | 3 Phase, 120/208V, 0.8pf |
22kW, 27.5kVA, 76A |
22kW, 27.5kVA, 76A |
| PSS21F4-17 | 3 Phase, 120/240V, 0.8pf |
22kW, 27.5kVA, 66A |
22kW, 27.5kVA, 66A |
| PSS21F4-18 | 3 Phase, 277/480V, 0.8pf |
24kW, 30kVA, 36A |
24kW, 30kVA, 36A |
FEATURES
- Ford MSG-425 engine with low oil protection.
- Brushless industrial generator end available in all common voltages.
- Voltage regulation of +/-1%.
- 5A Battery charger.
- 120V Coolant heater with thermostat.
- DSE 7310 digital controller offers user-friendly displays, engine and gen-set protections, communication options, alarms, engine exerciser, event log, and more.
- Galvanealed Steel Weather Enclosure with critical grade muffler reduces noise output to 75 dBA at 23 ft.
- 100% load tested.
- UL 2200 Listed.
- EPA Approved (for Standby only).
- CSA Approved.
DOWNLOAD
OPTIONS
- Open Skid version (no enclosure)
- Vapor Fuel Strainer (3/4″)
- LP Liquid Withdrawal (not UL certified)
- 10A Battery Charger Upgrade with Fail Contact
- Generator Strip Heater
- Battery Heater
- Group 24 650 CCA Battery
- NFPA 110 Level 1 Compliant Upgrade
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
| Brand | Winco |
|---|---|
| Weight | 1570 lbs. |
| Dimensions | 81 x 36 x 44 (Enclosed) |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | Ford MSG-425, 4-Cylinder, 1800 rpm |
