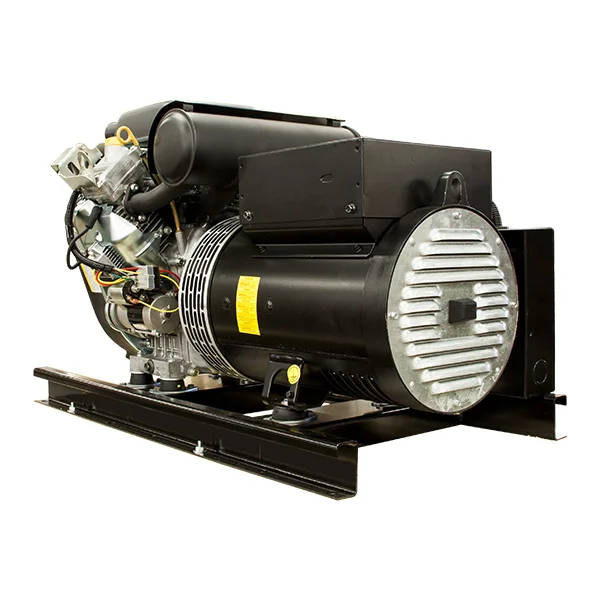

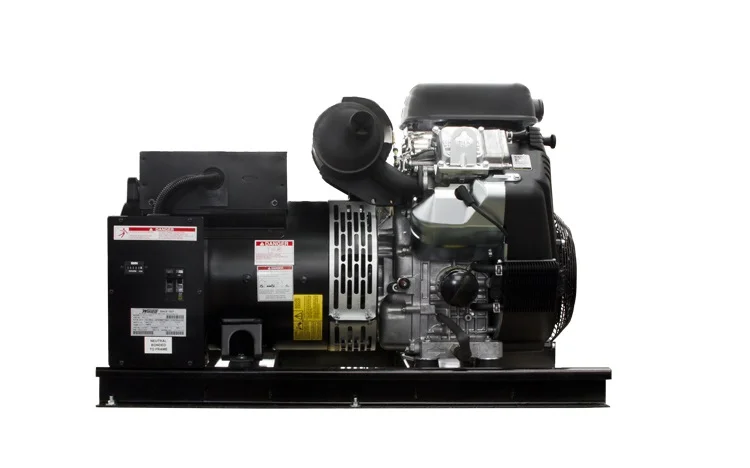

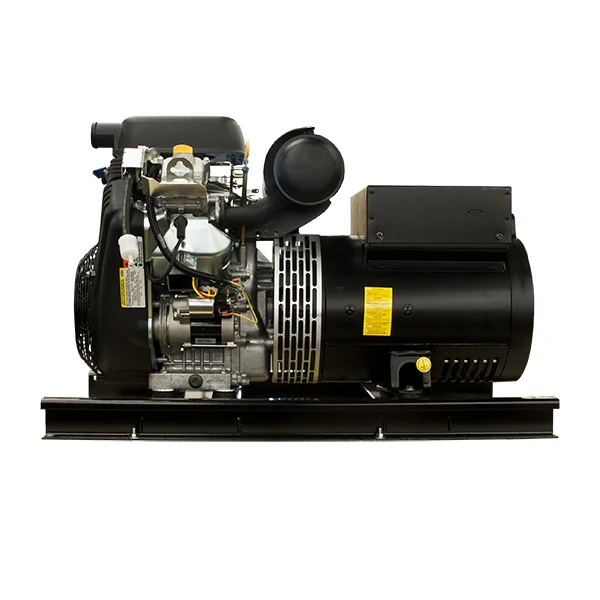

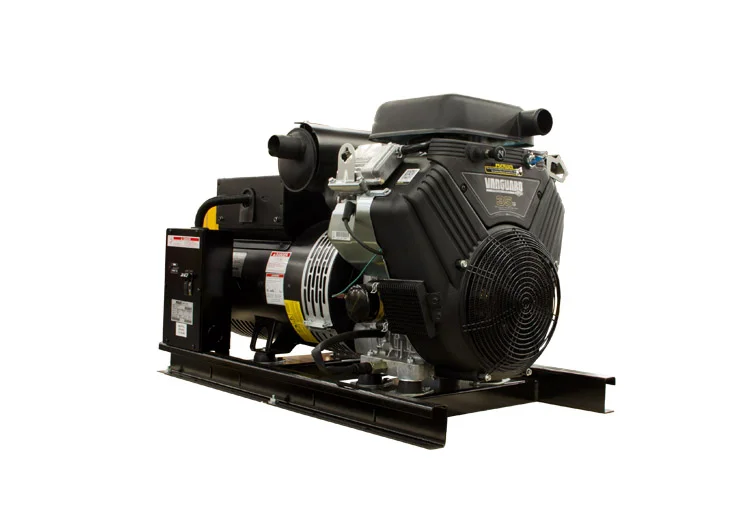

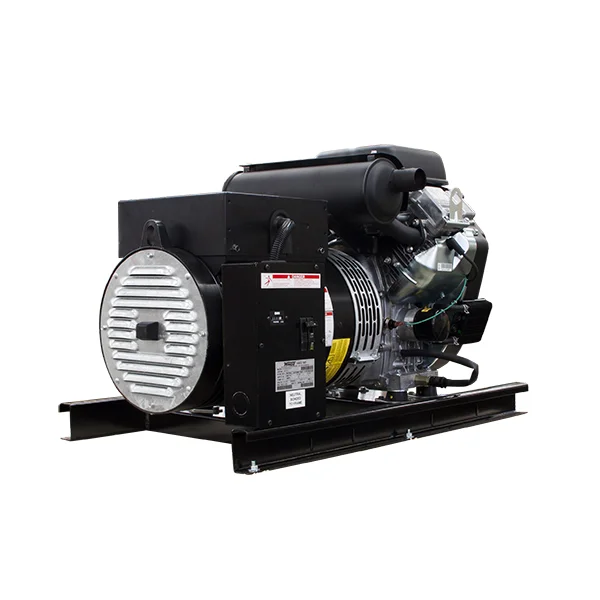

The Winco EC22000VE-18 vehicle mounted generator offers up to 22 kW of three phase 277/480V power, a B&S Vanguard gasoline engine, and electric start. Ideal for spray foam insulation, construction, mining, oil field, service, and emergency vehicles.

FEATURES

Engine

• Premium-grade Briggs & Stratton Vanguard engine application-engineered to operate in tough conditions.
• EPA-approved (but not CARB or CSA approved).
• Low oil protection.
• Electric start.

Fuel System

• Gasoline powered engine.
• Vacuum fuel pump with 30″ fuel lift capability.

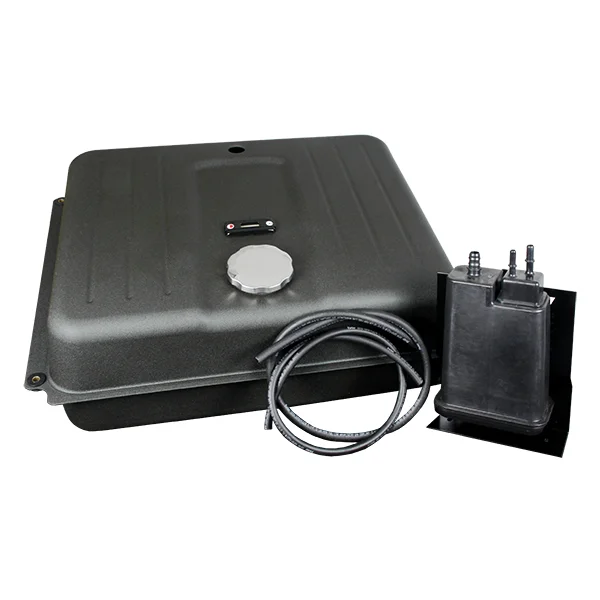

• Optional 15 gallon fuel tank.

Generator

• MAUX Auxiliary System ensures the generator end can withstand 300% motor starting inrush for 20 seconds.
• Automatic Voltage Regulation of +/- 1.5%.
• 30 amp Square D mainline circuit breaker provides clear and instant identification of a tripped circuit with a Visi-Trip indicator.

DOWNLOADS

EC22000VE Spec Sheet

EC22000VE Manual

EC22000VE Drawing

EC22000VE Optional Fuel Tank
