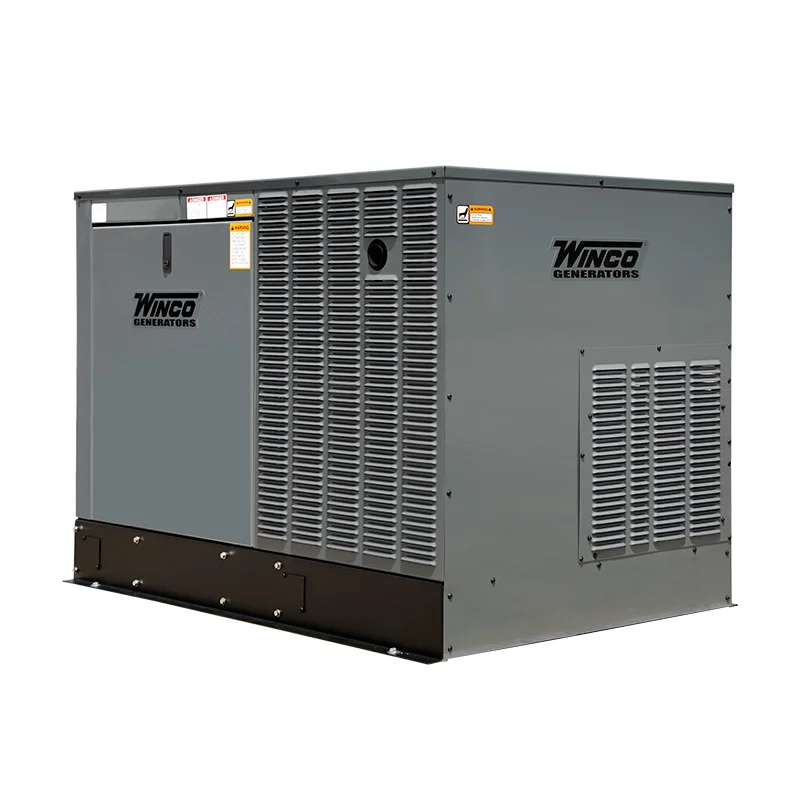

Winco PSS20 Home Standby Generator (17kW)
March 28, 2026
Winco DR300F4 Standby Generator (3PH, 300kW)
March 28, 2026
Winco DR350F4 Standby Generator (3PH, 350kW)
Call for PricingRequest a Quote
The Winco DR350F4 diesel standby generator offers a sophisticated FPT C13 TE3X engine, a Stamford (Cummins) generator end, and up to 350 kW of power. Available in several three phase voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK). Optional fuel tanks available.
Or call us: (888) 481-8845
The Winco DR350F4 diesel standby generator offers a sophisticated FPT C13 TE3X engine, a Stamford (Cummins) generator end, and up to 350 kW of power. Available in several three phase voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK). Optional fuel tanks available. UL 2200 and CSA Listed.
| Model | Phase | Voltage | kW | kVA | Amps |
| DR350F4-D | 3 | 120/208V | 320 | 400 | 1111 |
| DR350F4-J | 3 | 120/240V | 320 | 400 | 960 |
| DR350F4-L | 3 | 277/480V | 350 | 437 | 527 |
FEATURES
Engine Features
- FPT diesel engine.
- EPA Certified Tier 3.
- Efficient low fuel consumption design.
- Precision Italian manufacturing.
- Complete service network (including most CASE and New Holland Dealers).
- Circulating block heater – 120V, 2250W, with thermostat.
Generator Features
- Stamford industrial grade generator.
- Rated for continuous standby use.
- Class H insulation.
- Automatic voltage regulator provides +/-1.0% regulation.
- Available in all common voltages.
- Permanent Magnet Generator (PMG) MX341 standard – 1% regulation.
Control Features
- Digital genset DSE 7310 controller.
- Engine/genset display and protection.
- Glow plugs and starter solenoid controls.
- Emergency stop.
- USB connectable communications.
- Expanded communications options.
- Audible alarm.
- Engine exerciser.
- Event log.
- Configurable inputs.
- Configurable outputs.
- UL/CSA Listed.
- See the Spec Sheet below for a full listing of features.
Other Features
- Open Skid Design (Sound Attenuated Cabinet available)
- Welded and powder coated steel base.
- Rubber mounted engine and generator.
- Electrician friendly single cover connection points.
- Load bank tested.
- Single step 100% load tested.
- Operation Manuals.
- Designed for long life.
- 10A battery charger.
SOUND-PAK Cabinet Option
- Constructed with Galvannealed steel
- Lockable doors keyed alike
- Stainless steel hinges and door stops
- Critical muffler
- Maintenance doors and panels
- Powder coated prior to assembly
- Sound absorbing foam lined
- Cooling air deflectors
DOWNLOADS
OPTIONS
Fuel Tanks
- 560 gallon base mounted steel double wall fuel tank – UL142 Listed
- 845 gallon base mounted steel double wall fuel tank – UL142 Listed
Other Options
- NFPA 110 Level 1 Compliant Upgrade
- Generator Strip Heater
- Group 4D 1050 CCA Battery (Need Two)
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
- DSE8610 Controller Upgrade
| Brand | Winco |
|---|---|
| Weight | 7150 lbs. w/o cabinet; 9590 lbs. w/ SOUND-PAK |
| Dimensions | 144 x 60 x 72 (w/o cabinet) |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | FPT C13 TE3X Turbo-charged After-Cooled, 6 cylinder, 13L, 537 hp, 1800 rpm |
