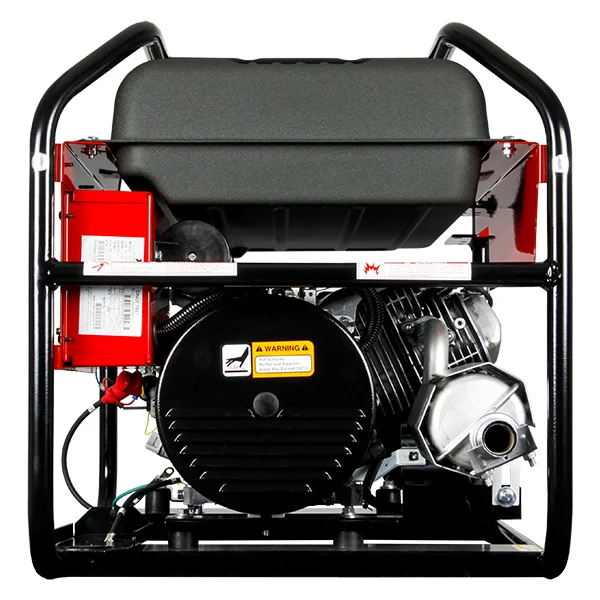

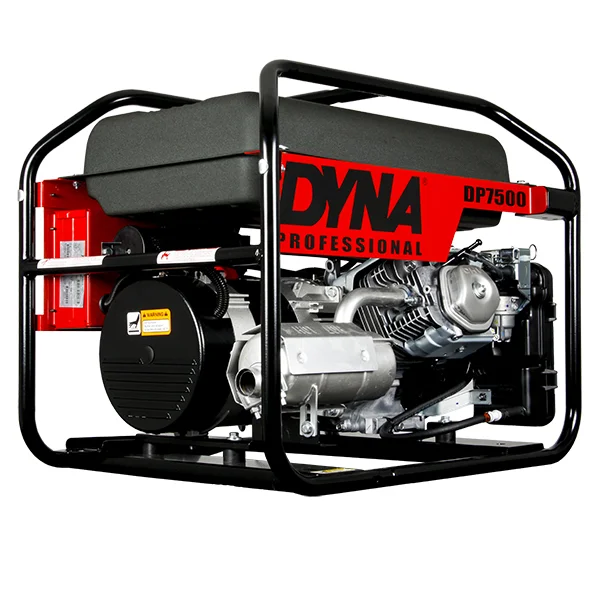

The Winco DP7500 will not disappoint, producing 7,500 starting Watts and 6,720 running watts. The DYNA Professional line will be a great addition to any work crew or master craftsman’s garage. The DP7500 is powered by a Honda GX390 engine that lives up to the reputation of reliability and perfomance you expect. The two NEMA 5-20 duplex and one NEMA L14-30 receptacles are GFCI protected. This is also Winco’s first unit to use toggle switches to start, run, and stop the engine.

FEATURES

• Honda GX390 Engine has more power, lower fuel consumption, and lower emissions than previous versions.
• Low Oil Protection – In the event there is low oil pressure, the engine will shut down, which will protect the engine from damage.
• Clean Power – Less than 6% Total Harmonic Distortion.

• Sturdy wrap-around welded cradle uses 1″ tubular steel for dependable durability.
• Full-Panel GFCI – The panel is fully GFCI protected and OSHA compliant.

• YourGen Meter – LED meter displaying hours, RPMs, voltage, and frequency readings. Verifies the load balance with a load bar display. Warnings when a parameter is outside of normal range and when an oil change is needed.
• Lifting Eye included.
• Steel 8 gallon fuel tank.
• CARB and EPA Certified.
• 100% Load Tested.

OPTIONAL ACCESSORIES

• Two Wheel, Flat-Free Dolly Kit

DOWNLOADS

DP7500 Spec Sheet

DP7500 Drawing

DP7500 Manual
