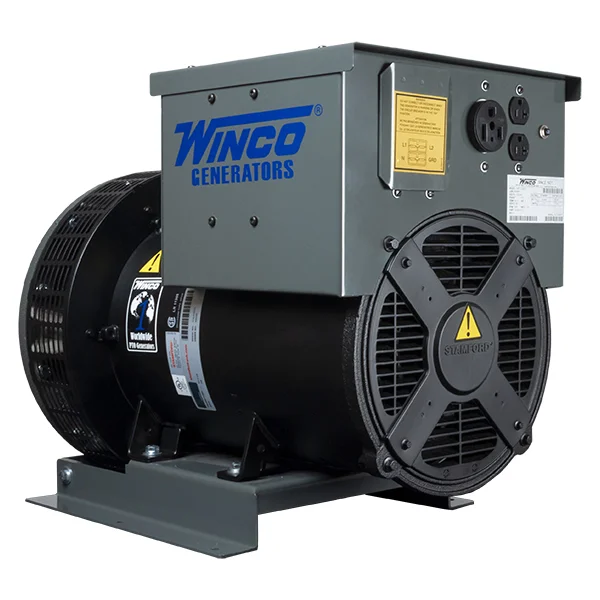

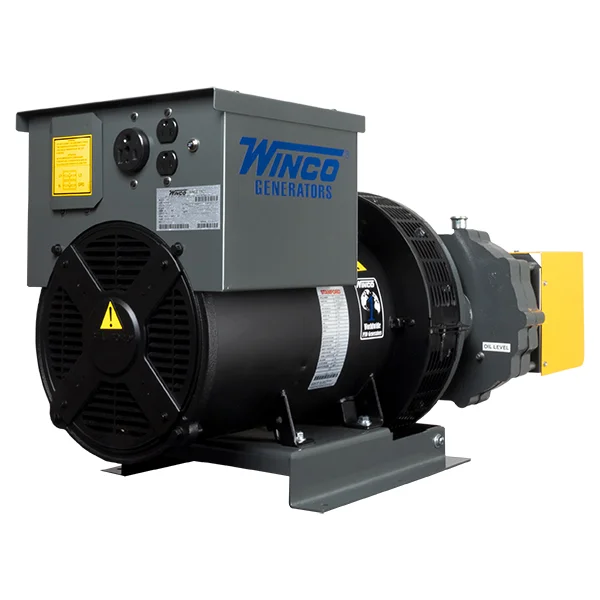

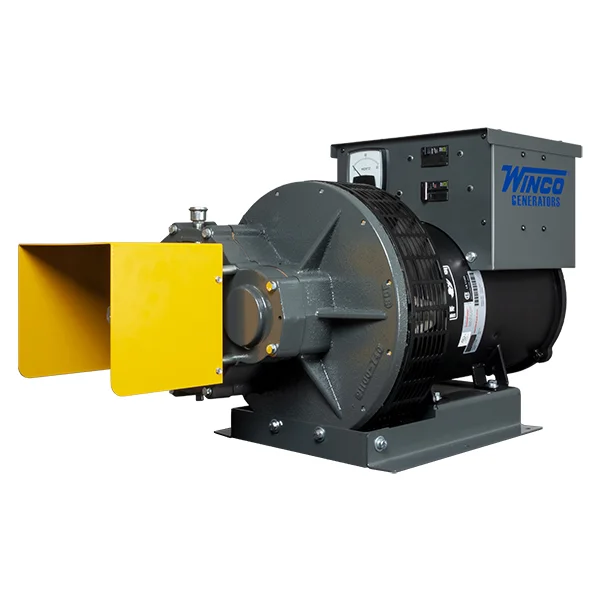

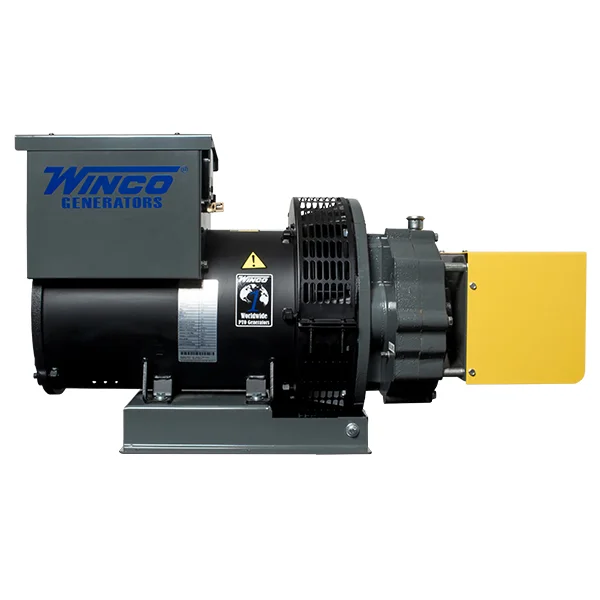

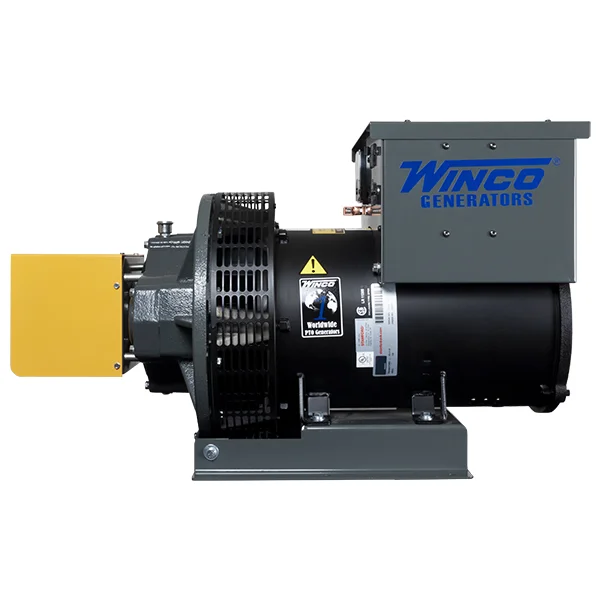

Winco 30PTOT4-04 PTO Generator (31.6kW 1000rpm)
Call for PricingRequest a Quote
Free Shipping in the Continental United States
Please call for orders to Alaska or Hawaii.
The Winco 30PTOT4-04 PTO Generator with 1000 rpm gear case offers up to 31.6kW of three phase power at 120/208V. Durable and time-tested.
Or call us: (888) 481-8845
Free Shipping in the Continental United States
Please call for orders to Alaska or Hawaii.
The Winco 30PTOT4-04 PTO Generator with 1000 rpm gear case offers up to 31.6kW of three phase power at 120/208V. Durable and time-tested.
FEATURES

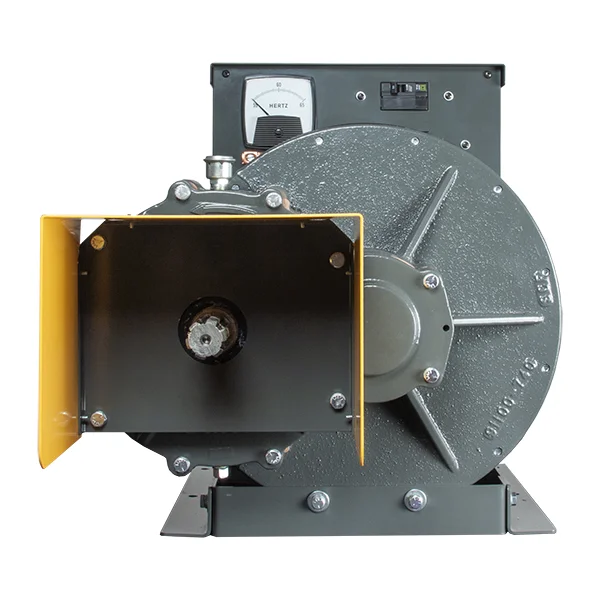

- Rugged 1000 rpm Winco gearcase with 1 3/8″ 6-Spline input shaft size

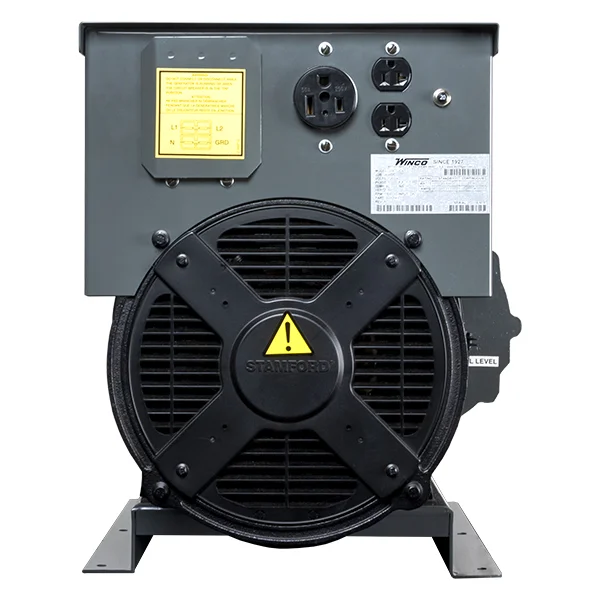

- Receptacle panel with two 120V 20A 5-20R, one 240V 50A 6-50R, and a full power Anderson receptacle. Anderson plug also included.
- 100A main line circuit breaker
- Automatic Voltage Regulation: +/- 1%
- Frequency meter
- Protective PTO shield
- Neutral bonded
- Ground lug
- Three year limited warranty.
- Uses 54961 PTO Shaft (Generator connection: 1 3/8″ 6-spline; Tractor connection: 1 3/8″ 21-spline)
- Optional TDM80 Trailer Kit available.
- Optional TPH260 3-Point Hitch Kit and compatible 54328 PTO Shaft available.
DOWNLOAD
| Brand | Winco |
|---|---|
| Weight | 472 lbs. |
| Dimensions | 37 x 21 x 25 |
| Voltage | 120/208V @ 60Hz |
