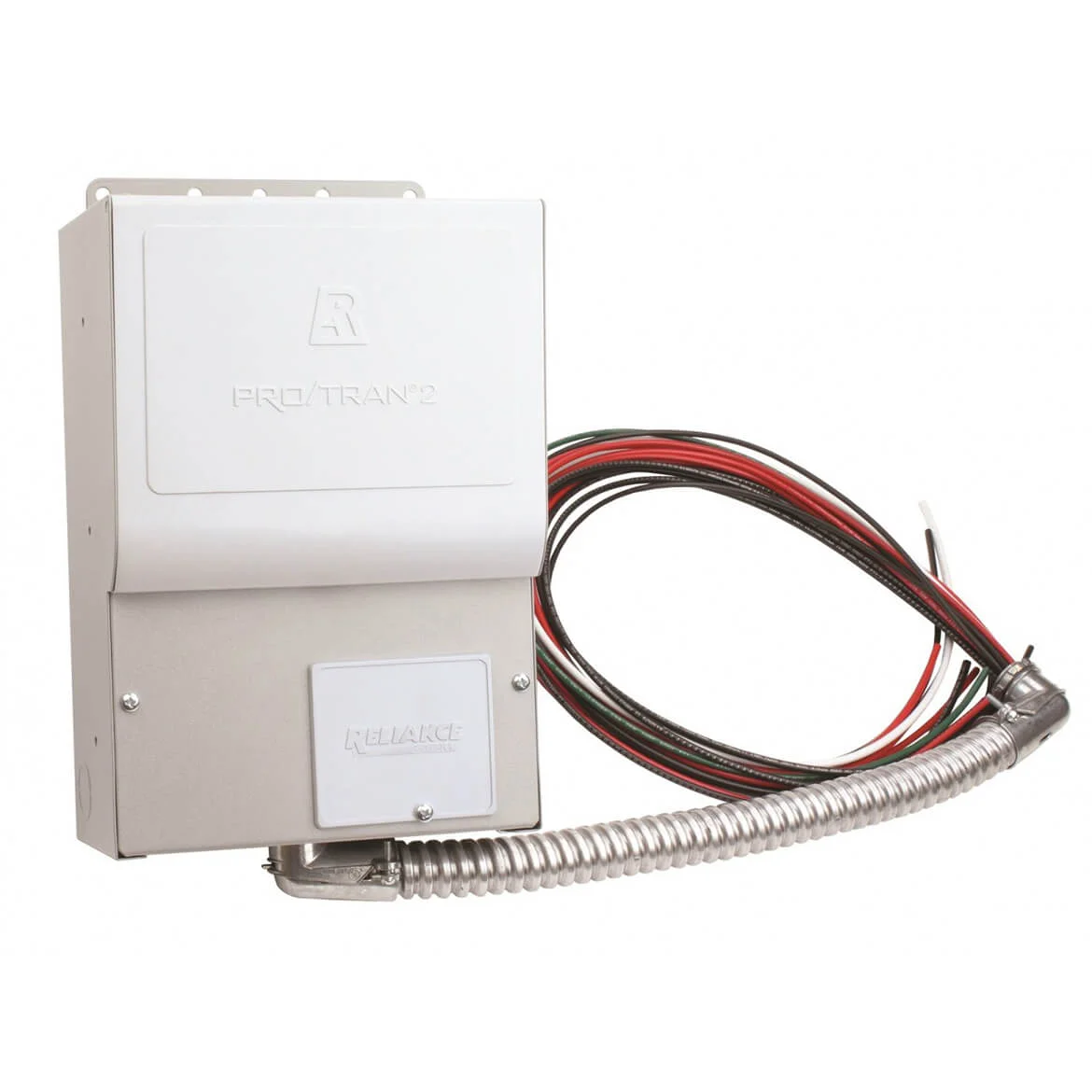

Reliance 306C 120/240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch
$310.00
Features
Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers.
Features
- Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers.
- The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI and GFCI breakers.
- All models include a hinged detachable cover to help protect and finish off the overall look of the product.
- These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications.
- The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification.
What’s in The Box
- 120/240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch – 306C
- Owner’s Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 306C |
| Brand | Reliance |
| Voltage | 120/240 |
| Max. Generator Running Watts | 7,500 |
| Phase | Single |
| Max. Single-Pole Circuits | 6 |
| Max. Double-Pole Circuits | 3 |
| Max. Rating Per Circuit | 2/30A,4/20A |
| Max. Combined Load at 125 Vac | 60 |
| Max. Combined Load at 250 Vac | 30 |
| Power Inlet | None |
| Recommended Cord Size (Guage) | 10 |
| Conduit Size (in.) | 3/4 |
| Conduit Length (in.) | 16 |
| Watt Meters | Yes |
| Dimensions (HxWxD) (in.) | 11.25 x 7.75 x 4.5 |
| Cabinet Type | Indoor |
| Weight | 11.40 lbs |
|---|---|
| Brand | Reliance |
| Wattage | 7,500 |
| Voltage | 120/240 |
