Info

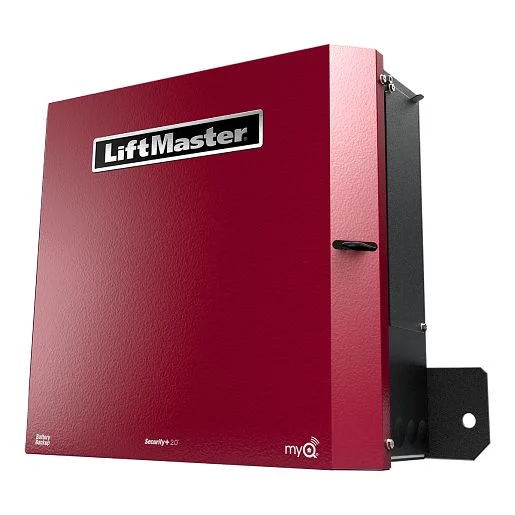

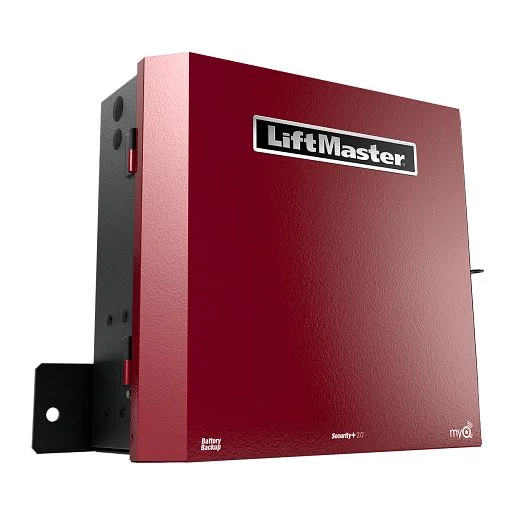

For multi-unit residential parking facilities.

Price is for Operator Only.

Features
Smooth Start and Stop that ensures low-maintenance performance
Noise-Isolating Design provides for exceptionally smooth and ultra-quiet operation

Reliable
Battery Backup secures and safeguards your property by providing Standby power when the power is down.
Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability. Smooth Start/Stop Operation and mid-travel reversal extend operator hardware life.
Corrosion Resistant Rail Finish offers maximum rust protection.
Warranty 5 Years.

Smart
Noise Isolators provide exceptionally smooth and quiet performance.
Selectable Speed control opens up to 11″ per second, 25% faster than industry average, to keep traffic flowing.
Low-Profile Design installs easily in tight applications at only 8″ in height.
myQ® Technology enables you to securely control and monitor your gate operator from anywhere. (Cellular data or Wi-Fi® connection required. Test equipment regularly and follow safety instructions.)

Safe & Secure
Safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
Quick Close And Anti-Tailgate quickly secure the property, preventing unauthorized access.
Fire Department Compliance allows gate/door to auto-open upon loss of ac power or battery depletion.
UL® listed gate/door operator with monitored safety entrapment protection devices.

Included Accessories
CPSUN4G Monitored Commercial Protector System® increases entrapment protection with through-beam infrared sensors with heavy-duty housings and brackets; NEMA 4 Rated; Maximum Range: 45 ft.

Safety Add-Ons:
LMRRUL: Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider beam, engineered to stay aligned; Maximum Range: 50 ft.
LMTBUL: Monitored Through-Beam Photo Eyes enhanced through-beam now with wider beam and heater for high performance in most environments; Maximum Range: 90 ft. COMING SOON!!!

Total Solution Accessories:
CAPXL: Connected Access Portal, High Capacity cloud-based access control for residential communities.
CAP2D: Connected Access Portal, 2-Door Controller keypad and proximity reader functionality controls a single-entry access.
MAT: High-Traffic Dc Barrier Gate Operator provides easy in-and-out access 24 hours a day to keep traffic flowing.
LOOPDETLM Plug-In Loop Detector identifies vehicles within the gate or door pathway.
RGL24LY Red/Green Traffic Light assures safe entering and exiting by indicating door status.

Specs

Mechanics
24VDC Continuous-Duty Motor
Operator Duty Rating: High-Cycle, High-Temperature Continuous Duty on 8, 10 and 12 ft. Rails; 600 Cycles on 14 and 16 ft. Rails
Wormgear Reduction: Oi l -Bath Gearbox with 28:1 Gear Reducer

Power
120/230V Single-Phase
Accessory Power: 24VDC 500mA Output
Solar-Ready, Ultra-Reliable System: delivers power when and where you need it (LMRRUL/LMTBUL Heater Option Not Recommended for Solar Applications)

Commercial Grade Design
Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel for Rust Prevention
Trolley Assembly: Heavy-Duty 12-Gauge Steel Track with 6 UHMW Rollers
UL® Usage Classification: II , III and IV

Weights
Powerhead = 86 lbs.
HCT08—8 ft. Rail = 93 lbs.
HCT10—10 ft. Rail = 111 lbs.
HCT12—12 ft. Rail = 129 lbs.
HCT14—14 ft. Rail = 150 lbs.
HCT16—16 ft. Rai l = 172 lbs.

Temperature Specifications
4°F (- 20°C) to 140°F (60°C)

Battery Backup Operation: (Cycles and Standby time based on stand-alone system)
Battery: (2) 7Ah

Rails
HCT08: 121.5″
HCT10: 145.5″
HCT12: 169.5″
HCT14: 193.8″
HCT16: 217.8″

Capacities:
Rated for overhead doors or gates with up to 16 ft. rail or weighing up to 1,000 lbs.

Gate Travel Speed
Select gate travel speed using the BI-PART DELAY switch and enable a high-speed open option to help flow in high-traffic areas (open speed only).
Bi-part delay off (default) = 8 in./sec. open speed
Bi-part delay on (fast) = 11 in./sec. open speed

Dimensions:
Height: 14.49”
Width: 23.75”
Depth: 8.08”

Standard Features
Pre-motion Warning Alarm: activates on-board alarm 3 seconds prior to gate motion
External Alarm Reset Button: instantly resets the built – in safety alarm siren
Maximum-run Timer: protects against damage to the gate and operator by limiting the unit’s run time to 120 seconds.
Dynamic Breaking System: adds substantial gate position control at all points of travel
Monitored Safety Inputs: main board, 3 expansion board
Security+ 2.0® On-Board Radio Receiver: up to 50 remote controls (unlimited with 811LM/813LM)
LED Diagnostic Display: simplifies installation and troubleshooting
Programmable Auxiliary Relays: make adding additional features easy

Compatible Rails
HCT08: 8 foot rail.
HCT10: 10 foot rail.
HCT12: 12 foot rail.
HCT14: 14 foot rail.
HCT16: 16 foot rail.

HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
