Gillette T4D-2000 Prime Generator (200kW)
Call for PricingRequest a Quote

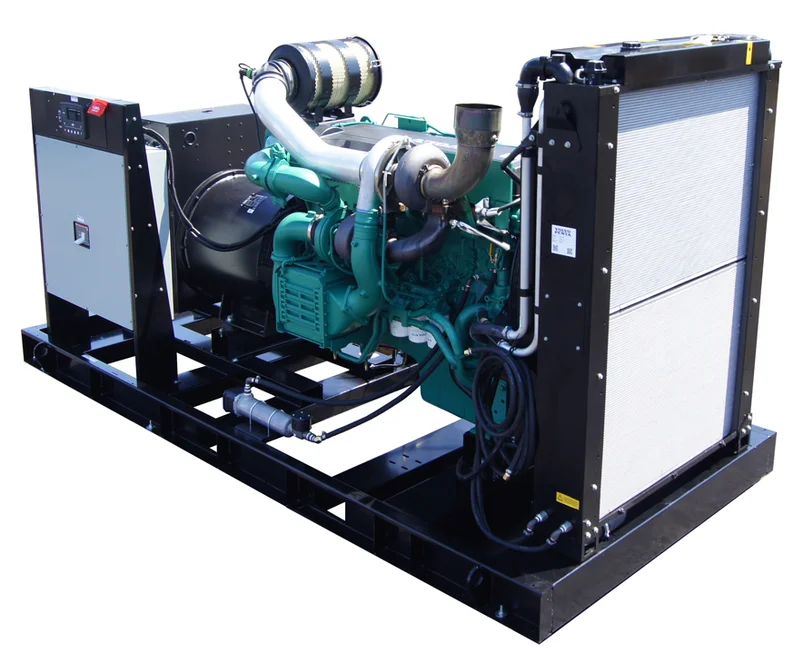

The Gillette T4D-2000 Prime Generator offers a Volvo diesel engine, three phase voltages, and up to 200 kW of continuous power.
T4D-2000 Models
Model
Phase, Voltage,
Power Factor
Prime Rating
kW, kVA, Amps
T4D-2000-3-2
3 Phase, 120/208V,
0.8pf
200kW, 250kVA,
694A
T4D-2000-3-3
3 Phase, 120/240V,
0.
Or call us: (888) 481-8845
The Gillette T4D-2000 Prime Generator offers a Volvo diesel engine, three phase voltages, and up to 200 kW of continuous power.
| Model | Phase, Voltage, Power Factor |
Prime Rating kW, kVA, Amps |
| T4D-2000-3-2 | 3 Phase, 120/208V, 0.8pf |
200kW, 250kVA, 694A |
| T4D-2000-3-3 | 3 Phase, 120/240V, 0.8pf |
200kW, 250kVA, 602A |
| T4D-2000-3-4 | 3 Phase, 277/480V, 0.8pf |
200kW, 250kVA, 301A |
| T4D-2000-3-5 | 3 Phase, 127/220V, 0.8pf |
200kW, 250kVA, 656A |
| T4D-2000-3-16 | 3 Phase, 346/600V, 0.8pf |
200kW, 250kVA, 240A |
FEATURES
- Specifically engineered to handle the difficult conditions of remote oil and gas operations, as well as other off grid applications with continuous duty cycles.
- All generator sets are USA prototype built and thoroughly tested. Production models are USA factory built and 100% load tested.
- Solid state, frequency compensated voltage regulation is standard.
- Electronic engine governor for precise isochronous frequency regulation.
- Basler DGC-2020 digital controller offers an integrated gen-set control system for single gen-set applications, and includes generator metering, engine-generator protections, exercise timer, and expansion capabilities. Controller has stop-run-auto mode buttons, menu scroll buttons, and a backlit LCD display.
- Heavy-duty circuit breaker is standard on all gen-sets.
- Battery tray, cables, straps, and charger included.
- UL-1446 certified.
ENCLOSURE OPTIONS
- OPEN STYLE – No Enclosure: Gen-set must be placed within a weather protected area, un-inhabited by humans or animals, with proper ventilation. Silencer and flexible exhaust hose are not supplied , as installation requirements are not known. However, these two items are available as optional equipment.
- LEVEL 2 – Aluminum Housing: Full weather protection and superior sound attenuation for specific low noise applications. Critical grade silencer is standard. Average sound level of 83 dBA at 23 ft.
| Enclosure | Dimensions (inches) L x W x H |
Three Phase Weight (lbs) |
| Open Style | 132 x 52 x 65 | 5777 |
| Level 2 | 162 x 52 x 80 | 7547 |
DIESEL FUEL TANK OPTIONS
- Feature double-walls and emergency vents. Designed for generator sub-base installation. UL-142 Certified.
- Available in two sizes: 898 gallons (60 hour runtime) and 1796 gallons (120 hour runtime).
- Further descriptions and tank options available here.
- Generator can also be used with customer-supplied fuel tank.
DOWNLOADS
OPTIONS
- Engine Coolant Heater
- Starting Battery Heater Blankets
- 10A Battery Charger Upgrade
- 20A Battery Charger Upgrade
- 750 CCA 12VDC Starting Battery
- Paralleling Package
- Camlock Connections Panel
- Emergency Stop Switch – mounted in a NEMA 4X small enclosure, UL Listed, Suitable for remote locations
- Emergency Stop Switch – mounted in a “Break Glass Station” NEMA 3R small enclosure, UL Listed, Suitable for remote locations
- External Permanent Magnet Generator (PMG) for improved motor starting capabilities and un-interrupted excitation power
- External Permanent Magnet Generator (PMG) with Digital Voltage Regulator (DVR) for improved motor starting capabilities, un-interrupted excitation power, and RMS sensing
- Critical Grade Silencer Upgrade – for average sound level of 98 dBA at 23 ft with an Open Gen-Set (standard with Level 2 Enclosure)
- Hospital Grade Silencer Upgrade
- R7 Foam Insulation (4-5 dBA sound reduction)
- Stainless Steel Enclosure
- Generator Enclosure Lights
- Liquid Containment Pan – installed under frame base
- Spring Vibration Mounts
- Motorized Dampers
- Isolator Mounting Pads
- Enclosure Space Heater
- Controller Upgrades and Alarm Interfaces
- Five Year Extended Warranty
| Brand | Gillette |
|---|---|
| Weight | Varies – See Enclosure Chart |
| Dimensions | Varies – See Enclosure Chart |
| Voltage | Varies – See Model Chart |
| Engine | Volvo, EPA Tier 4 Final, 4-cycle, 6-cylinder, Turbo-After-Cooler, SCR Catalyst, DEF Tank |
