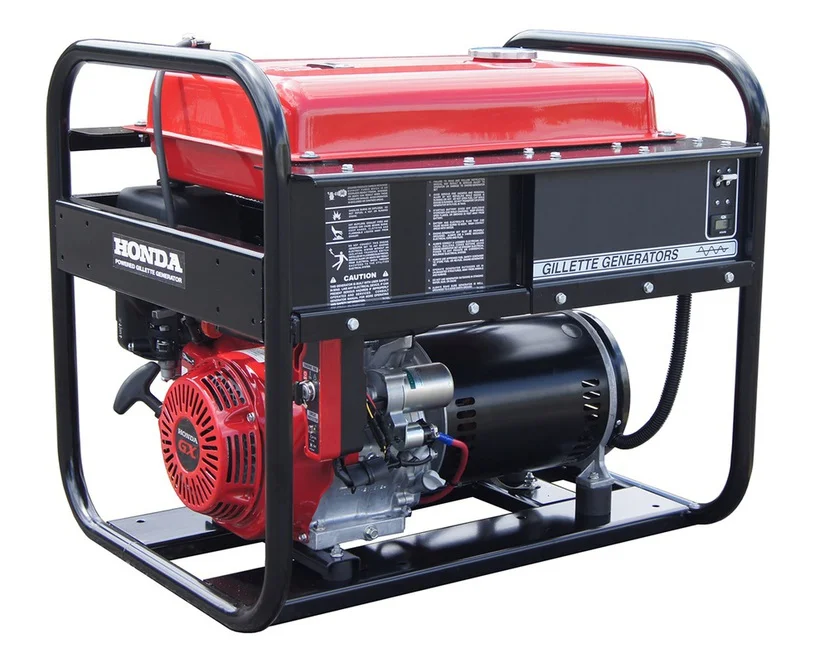

The Gillette GPE-75EH-3-3 Portable Generator offers a Honda GX390 engine, electric start, and up to 6kW of three phase power at 240V only.  If 208V or 480V is needed please see the GPE-75EH-3-2 or the GPE-75EH-3-4.

FEATURES

• Exclusive Kleen-Power® design allows only 6% harmonic distortion of the power sine-wave. Harmful harmonic distortions over 10% may do damage to your plugged-in electric load.
• Exclusive “Power-Assist”™ design allows 27% more copper wire and electrical grade steel than leading competitor gen-sets. This gives you huge, extra starting power for hard starting electric motor loads.
• Exclusive, heavy duty diodes give you “life-time” warranty from failure of the most commonly replaced part on other generator sets.
• Exclusive, heavy duty capacitor gives you “life-time” warranty from failure of the second most commonly replaced part on other generator sets.
• “Magnetic” circuit breakers automatically protect windings from overloads and “short circuited” electric loads.
• Run time meter totals the hours of run time for service or rental use.
• Over-head valve engine gives you 20% smaller and lighter weight, than less efficient side valve engines. Ohv design also reduces fuel and oil consumption by 40%, gives you up to 10% more torque, has internal balancing for smooth operation and eliminates the need to constantly de-carbon engine cylinder head.
• Cast iron cylinder sleeve gives you longer engine life than standard side valve aluminum engines.
• Automatic oil sensor protects your engine from low oil and automatically stops engine before damage happens.
• Solid state ignition allows trouble-free operation with no points or condenser to replace.
• 2-Element heavy duty air cleaner adds major additional engine life by trapping more dust and dirt.
• Long lasting metal eight gallon fuel tank with slosh valve, fuel gauge, and twist-cap.
• Standard 3-pole 20A mag circuit breaker.
• Power take off 4-position terminal strip.
• Motor Start Power: 2.5 hp, Code G Electrical Motor.
• Rugged 1-1/4” round roll frame to protect the entire gen-set.
• EPA Certified engine.
• Not CARB approved (Cannot be sold or shipped to a CA address).
• Made in the USA.

DOWNLOADS

GPE-75EH-3 Spec Sheet

OPTIONAL ACCESSORIES

• Two-Wheel Dolly Kit
• Central Pick-up Hook
• 12 VDC Starting Battery
