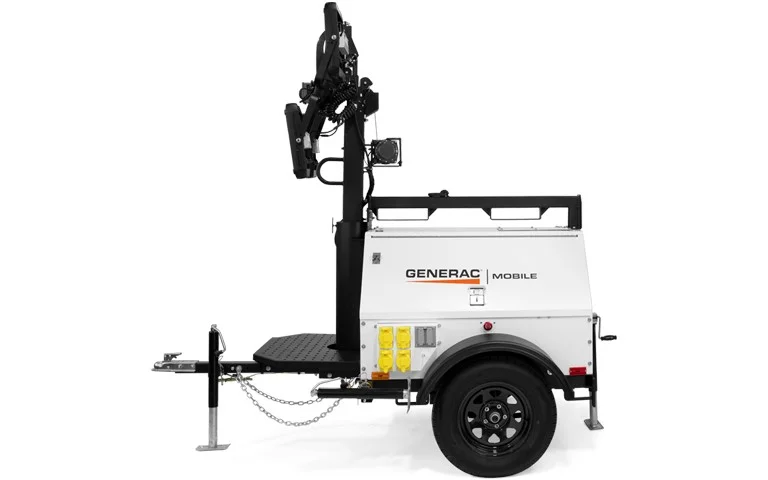

The Generac Mobile MLT4150MVLED Light Tower features a vertical mast with rapid 15 second deployment. Built and designed for the most extreme environments, the 15kW Light Tower is available with a Mitsubishi engine, four 320watt LED lights and offers complete flexibility with 359 degree mast/light rotation.

ENGINE/GENERATOR FEATURES

• Quality Mitsubishi diesel engine.
• 56.4 gallon polyethylene fuel tank for 38 hours of runtime at full load.
• Marathon Electric generator offers up to 8kW of power at 120/240VAC single phase.

CONTROL PANEL and ELECTRICAL FEATURES

• Engraved aluminum punched and anodized control panel.
• Four position keyed switch.
• Hour meter.
• Automatic low oil pressure / high temperature shutdown system.

• 30A start limit breaker.
• Individual floodlight circuits with 15A breakers.
• Individually breakered convenience outlets.

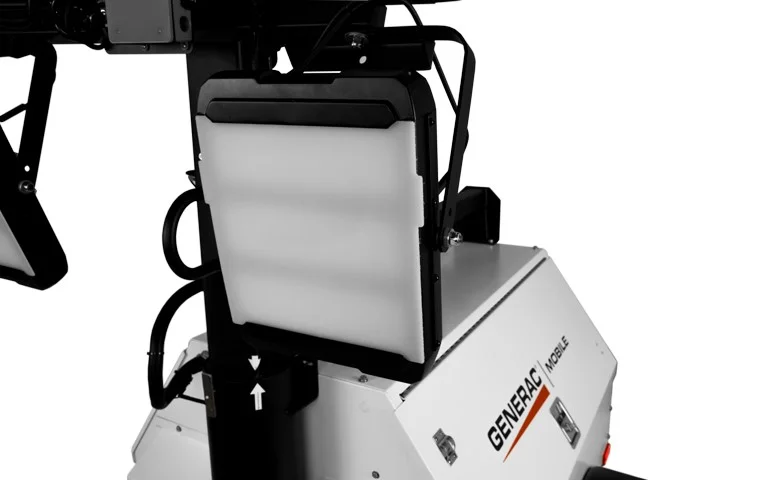

LIGHT FEATURES

• Four 320 watt LED light fixtures.

• Aluminum and polymer housing.

• Friction disc mounting for tool-less positioning.
• Individual floodlight on-off switches.

MAST FEATURES

• Distinctive angle fixture design for common light distribution.
• Mast stowed height: 9.25 ft.
• 25ft max extension – 5-section mast, tubular-steel.
• 950 lb. automatic self-breaking electric winch – easily raises mast vertically.
• Polymer guides on all sides of mast tubes.
• 359° ground-level rotation with locking system.
• Industrial black powder coat finish.
• Coiled mast cord.


ENCLOSURE FEATURES

• Steel enclosure – 14-gauge.
• UV & fade resistant, high temperature cured, white polyester powder paint.
• Stainless steel hinges on doors.
• Multi-lingual operating/safety decals.
• License plate holder with light.
• Manual holder with operating manual.
• Equipped with single lifting eye and fork pockets.

TRAILER FEATURES

• Front step platform for easy adjustment of light fixtures.
• Removable tongue – 48 inches long.
• Four 2000 lb. leveling jacks.
• All jacks transport and lock in horizontal position for storage.
• Side outriggers – 140 inch span.
• 7800 lbs safety chains with spring loaded safety hooks.
• 2” ball hitch standard.
• Single wall polyethylene fenders.
• DOT approved tail, side, brake, and directional lights.
• 3000 lb. leaf spring axle.
• ST205/75R15 – 6 ply.
• 70 in. axle span.

DOWNLOADS

MLT4000 Series Spec Sheet

MLT4000 Series Operating Manual

OPTIONS

• 60/40 Coolant – (LT6040) – ADD $35.00

• Heated Fuel Filter – (LT-HFF1) – ADD $182.00

• Lower Radiator Hose – Engine Heater – (LT-HEAT) – ADD $128.00

• Lockable Battery Disconnect – (LT-BATTDISC) – ADD $246.00

• 10 Amp Battery Charger – (GIF-CHARGER10) – ADD $560.00

• AGM Sealed Battery – 720 CCA – (LT-AGMBATT) – ADD $317.00

• Powerzone Plus Digital Controller – (LT4-PZP) – ADD $919.00

• Positive Air Shutoff – (LT-PAS) – ADD $2,723.00

• Liquid Containment – (LTLC) – ADD $772.00

• Grounding Rod (5/8″ x 4′ Rod, Stranded #6 Wire Black 6′) – (LTGROD) – ADD $109.00

• Hitch Options (2″ Ball is standard):
  • 2″ bulldog – (HITCH-2BULLDOG) – ADD $159.00

  • 2-5/16″ ball – (HITCH-2516BALL) – ADD $159.00

  • 3″ lunette ring – (HITCH-3RING) – ADD $159.00

  • Combination 2″ ball & 2-1/2″ ring – (HITCH-COMBO) – ADD $159.00
• Flat 4 to 7 Spade Round Adapter – (LT-ADAPTER) – ADD $43.00

• LoJack Vehicle Recovery System – (LD-LOJACK) – ADD $709.00
• 5 lb. Fire Extinguisher – (LT-FIREEXT5) – ADD $359.00

• Diffuser Snap-On Lenses (Set of 4) – (LT4-DIFLENS) – ADD $91.00
