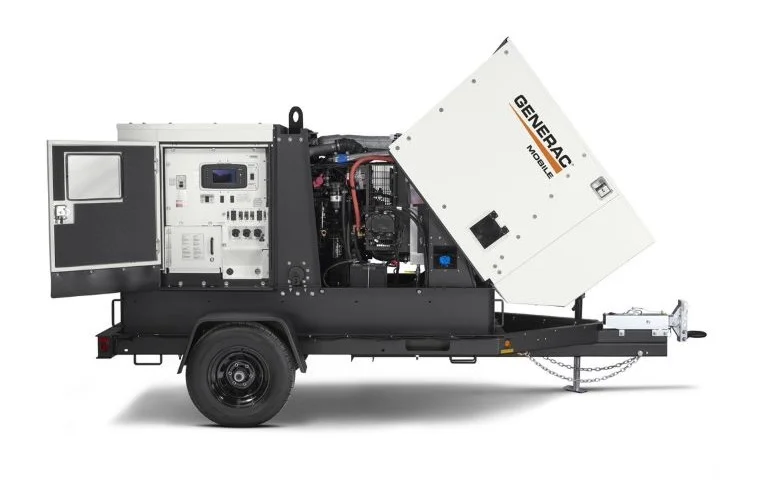

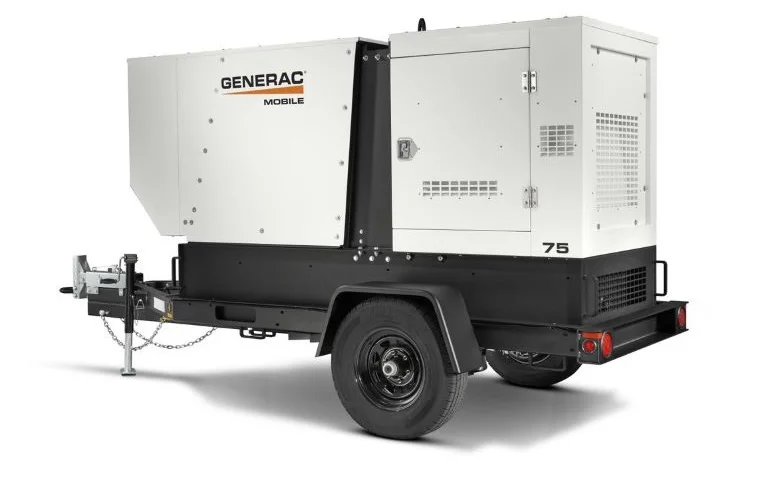

The Generac Mobile MDG75DF4 Diesel Generator offers a John Deere diesel engine, 30 hour runtime, and up to 68kW of power at a quiet 74 dBA.

GENERATOR FEATURES

• John Deere diesel engine – EPA Tier 4 Final.
• Exhaust Temperature Management (EMT) System to minimize wet-stacking.
• Voltage regulation +/- 1.0% with Magnum PM600 Voltage Regulator.
• Marathon Electric generator.
• No diesel particulate filter (DPF) needed.
• Voltage Selector Switch – three position.
• Power Zone controller with backlit color display and push buttons (see spec sheet below for details)
• Lockable control box door with diagnostics window.
• Lockable lug box with safety switch.
• Remote start/stop contacts located in receptacle box.
• Output ground connection lug inside lug box.
• 300A main breaker with shunt trip.
• Convenience receptacles with individual breakers.
• 720 CCA wet cell battery.
• CSA Certified.

ENCLOSURE FEATURES

• Fully-lockable aluminum sound-attenuated enclosure.
• UV and fade resistant, high temperature cured, white polyester powder paint.
• Emergency stop switch located on outside of enclosure.
• Central lifting point.
• Multi-lingual operating/safety decals.
• Document holder with operating manual including AC/DC wiring diagrams.
• Flip hood design provides easy access for maintenance.

OPTIONAL MTG75 TRAILER FEATURES

• DOT approved lighting.
• Transportation tie downs.
• Safety chains with spring loaded safety hooks.
• Surge brakes standard.
• 3″ Lunette Ring hitch standard.
• 6000 lb. single axle.
• 3000 lb. tongue jack with footplate.
• P225/75R15 tubeless tires – 8 ply.

DOWNLOADS

MDG75DF4 Spec Sheet

MDG75DF4 Operating Manual

ETM System Brochure

GENERATOR OPTIONS

• Superstart Generator – (MDGM-SSGEN75) – ADD $3,388.00

• Single Set Female Camlock Connections – (MDGM-CAMS1) – ADD $711.00

• Buck Transformer Kit – (MDGM-BUCK) – ADD $995.00

• 4-Position Voltage Selector Switch – (MDGM-4VSS) – ADD $,052.00

• PMG Generator – (MDGM-PMG) – ADD $1,065.00

• DVR (2000E – Includes Required PMG) – (MDGM-DVR) – ADD $2,342.00

• Interior Cabinet Light – (MDGM-CABLITE) – ADD $118.00

• Control Panel Light – (MDGM-PANLELITE) – ADD $125.00

• Paralleling- Parallel up to 32 generators for a scalable power solution with ultimate versatility – (MDGM-PARALLEL) – ADD $11,530.00


ENGINE OPTIONS

• Positive Air Shutoff (electronic) – (MDGM-PAS) – ADD $2,693.00

• 10 Amp Battery Charger – (MDGM-CHARGER10) – ADD $560.00

• Lockable Battery Disconnect – (MDGM-BATTDISC) – ADD $281.00


COLD CLIMATE OPTIONS

• Engine Block Heater – included with selection of any other Cold Climate option or Battery Charger option
• 60/40 Coolant – (MDGM-6040) – ADD $117.00
• Heated Fuel Filter – (MDGM-HFF) – ADD $1,163.00
• Battery Heater – (MDGM-BATHEAT) – ADD $127.00
• CCV Engine Heater – (MDGM-CCV) – ADD $1,161.00
• Oil Pan Heater – (MDGM-OILHTR) – ADD $225.00

FUEL TANK OPTIONS

• 110% Liquid Containment (Oil, Coolant, DEF, Fuel) – (MDGM-110CONTAIN) – ADD $2,258.00
• Double=Wall Fuel Tank with 110% Liquid Containment (Oil, Coolant, DEF, Fuel) – (MDGM-110CON2W) – $4,612.00
• Engine Fluid & Fuel Leak Detection Sensor (Requires Double-Wall Tank option) – (MDGM-LEAK) – ADD $1,260.00
• Extended Run Fuel Transfer System (includes Fuel/DEF Ports & Pumps; works with Transcube external tanks – sold separately; see Brochure for further details) – (MDGM-FTS) – ADD $4,878.00

TRAILER OPTIONS

• Electric Brakes.
• Tandem-axle Trailer – (MTG75T) – $5,501.00

• Rear Stabilizer Jacks – (MDGM-STABJACKS) – ADD $520.00

• Spare Tire and Carrier – (MDGM-TIRE) – ADD $999.00

• Vehicle Recovery System – (MDGM-LOJACK) – ADD $692.00

• Aluminum Front-Mount Toolbox (49″ L x 15″ W x 18.5″ H) – (MDGM-TOOLBOXALU) – ADD $1,685.00

• 5 lb. Fire Extinguisher – (MDGM-FIREEXT5) – ADD $464.00
