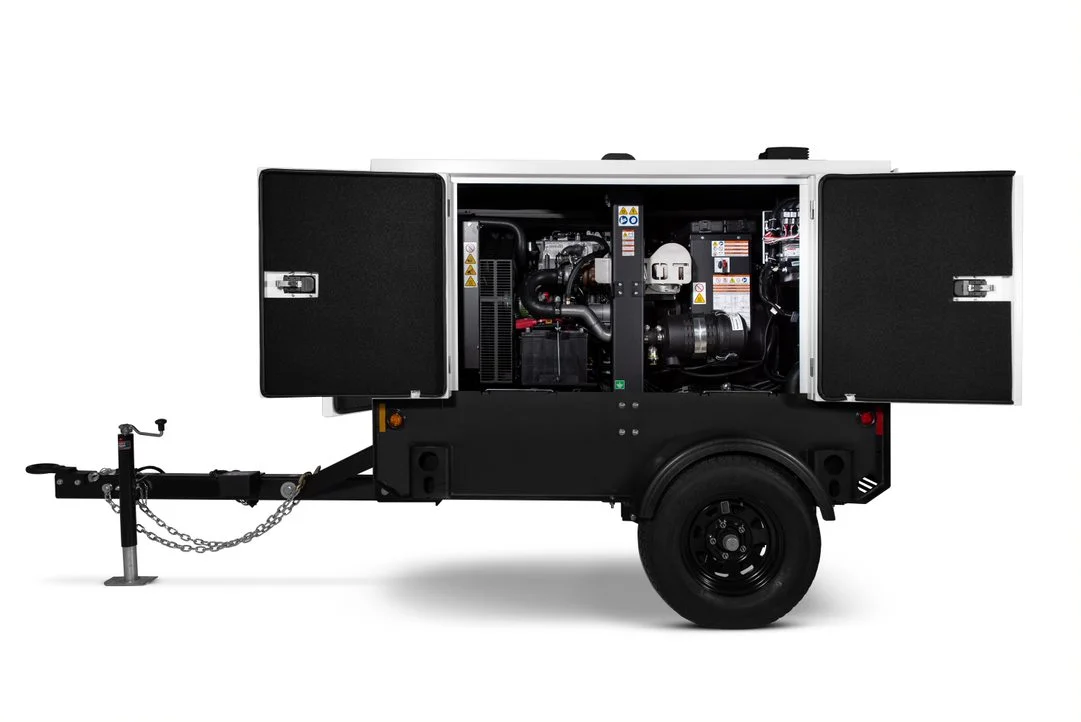

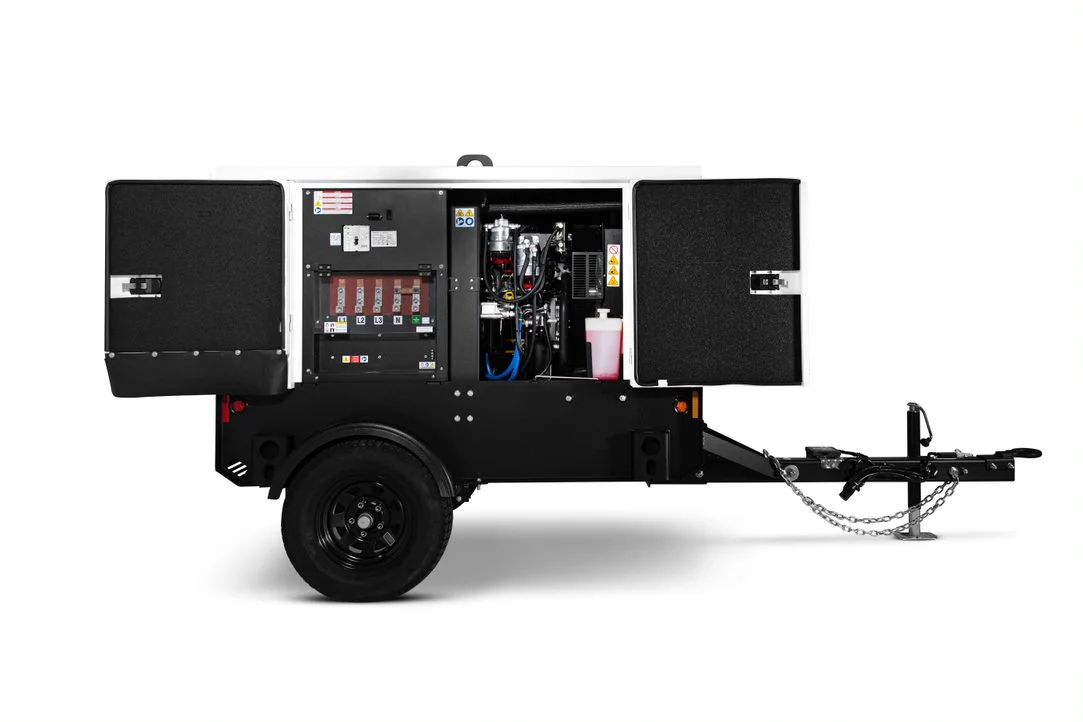

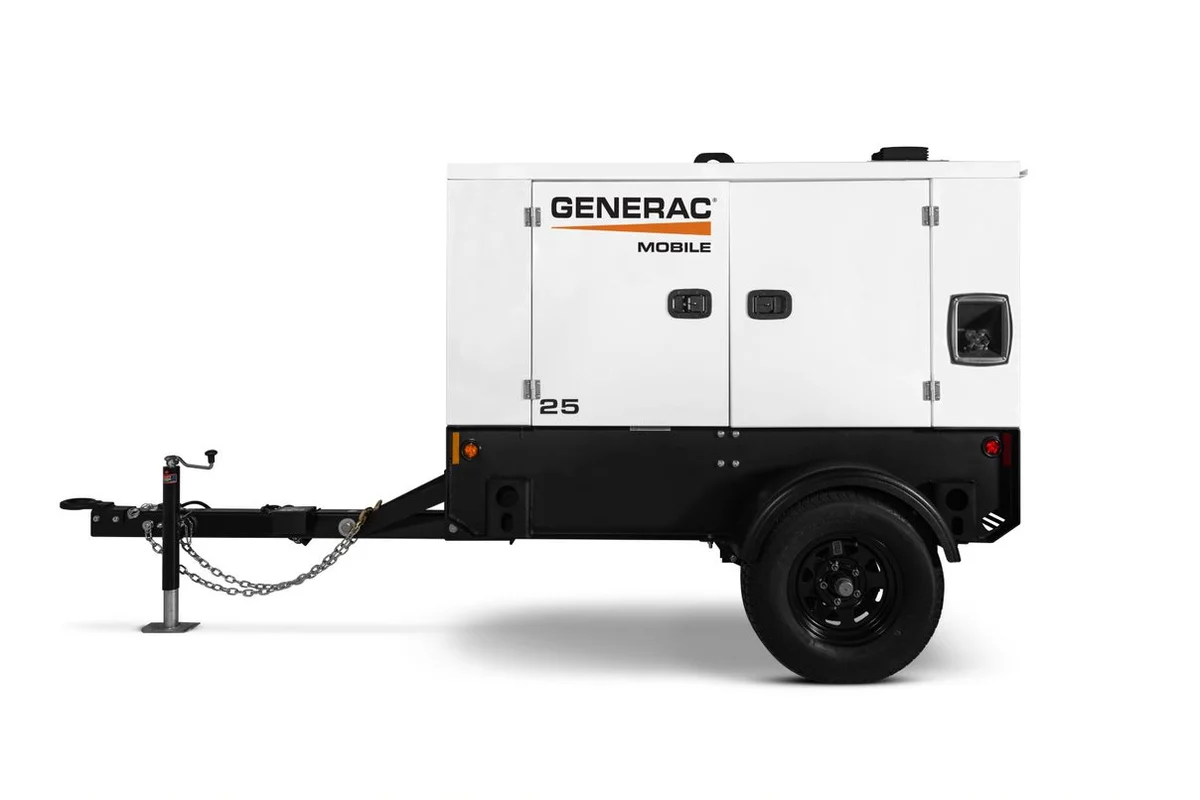

The Generac Mobile MDG25IF4 Diesel Generator offers an Isuzu diesel engine, 24 hour runtime, and up to 25 kW of power at a quiet 67 dBA.

GENERATOR FEATURES

• Isuzu diesel engine – EPA Tier 4 Final approved.
• Electronic isochronous governing.
• Voltage regulation +/- 0.5% with Automatic Voltage Regulator.
• Marathon Electric brushless generator.
• Poly fuel tank.
• Voltage Selector Switch – three position.
• Power Zone controller with backlit color display and push buttons (see spec sheet below for details).
• Control panel lighting.

• Lockable control box door with diagnostics window.
• Lockable lug box with safety switch.
• Remote start/stop contacts located in lug box.
• Output ground connection lug inside lug box.
• 125A main breaker with shunt trip.
• Convenience receptacles with individual breakers.
• Standard battery disconnect.

• 720 CCA wet cell battery.
• CSA Certified.

ENCLOSURE FEATURES

• Fully-lockable aluminum sound-attenuated enclosure.
• UV and fade resistant, high temperature cured, white polyester powder paint.
• Emergency stop switch located on outside of enclosure.
• Central lifting point.
• Multi-lingual operating/safety decals.
• Document holder with operating manual including AC/DC wiring diagrams.
• Interior cabinet lighting.


OPTIONAL MTG25S TRAILER FEATURES

• DOT approved lighting.
• Transportation tie downs.
• Safety chains with spring loaded safety hooks.
• No brakes.
• 2″ Ball hitch standard.
• 3100 lb. single axle.
• 2000 lb. tongue jack with footplate.
• ST175/80D13 tubeless tires.

DOWNLOADS

MDG25IF4 Spec Sheet

MDG25IF4 Brochure

GENERATOR OPTIONS

• Single Set Female Camlock Connections – (GIF1CAM) – ADD $516.00
• Buck Transformer Kit – (GIF-BUCK) – ADD $611.00
• 4-Position Voltage Selector Switch – (GIF4PSW) – ADD $738.00
• PMG Generator – (GIF-PMG) – ADD $1,533.00
• DVR (includes required PMG) – (GIF-DVR) – ADD 3,401.00
• Alternate Loading Device – (GIF-ALD) – ADD $5,160.00
• Superstart Gen – (GIF-SUPERSTART) – ADD $740.00

ENGINE OPTIONS

• Positive Air Shutoff (electronic) – (GIF25-PAS) – ADD $1,185.00
• Lockable Battery Disconnect – (GIF25-BATTDISC) – ADD $385.00
• 10 Amp Battery Charger – (GIF25-CHARGER10) – ADD $4752.00

COLD CLIMATE OPTIONS

• 60/40 Coolant – (GIF-6040) – ADD $87.00
• Block Heater – (GIF-HEATER) – ADD $475.00
• Dual Heated Fuel Filter – (GIF25-HHF2) – ADD $435.00
• Oil Pan Heater – (GIF25-OILHTR) – ADD $210.00

FUEL OPTIONS

• Auxiliary Tank 3-Way Fuel Valve – (GIF-3VALVE) – ADD $690.00
• Engine Fluid & Fuel Leak Detection – (GIF-LEAKDETECT) – ADD $548.00
• 110% Liquid Containment (Includes Oil, Coolant, Fuel; Must also order Leak Detection with this option ) – (GIF-110CONTAIN) – ADD $1,437.00

TRAILER OPTIONS

• MTG25S Single-axle Trailer – $425.00
• Hitch Options (2″ Ball Hitch is standard):
  • 2″ Bulldog – (HITCH-2BULLDOG) – ADD $159.00
  • 3″ Lunette Ring – (HITCH-3RING) – ADD $159.00
• Electric Brakes.
• Rear Stabilizer Jacks – (GIF-STABJACKS) – ADD $300.00
• Spare Tire and Carrier – (GIFTIRE) – ADD $950.00
• Vehicle Recovery System – (GIF-LOJACK) – ADD $632.00
• Black Poly Front-Mount Toolbox (49″ L x 15″ W x 18.5″ H) – (GIF-TOOLBOXBLK) – ADD $995.00
• Aluminum Front-Mount Toolbox (49″ L x 15″ W x 18.5″ H) – (GIF-TOOLBOXALU) – ADD $1,368.00
• 5 lb. Fire Extinguisher – (GIF-FIREEXT5) – ADD $455.00
