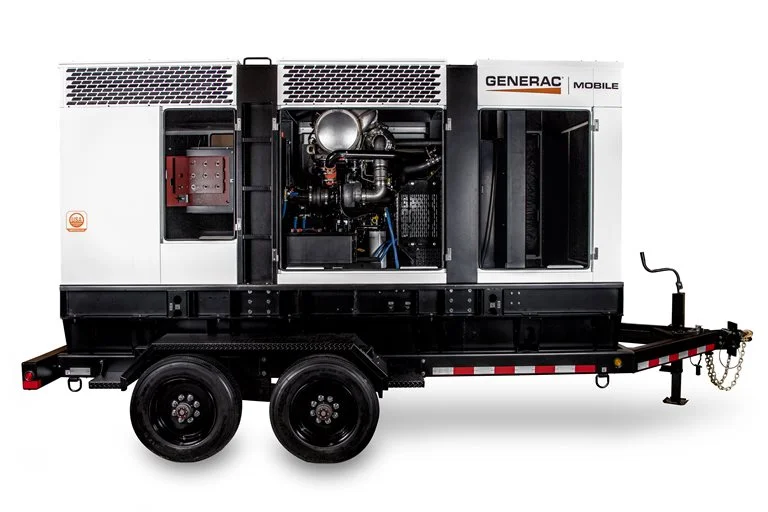

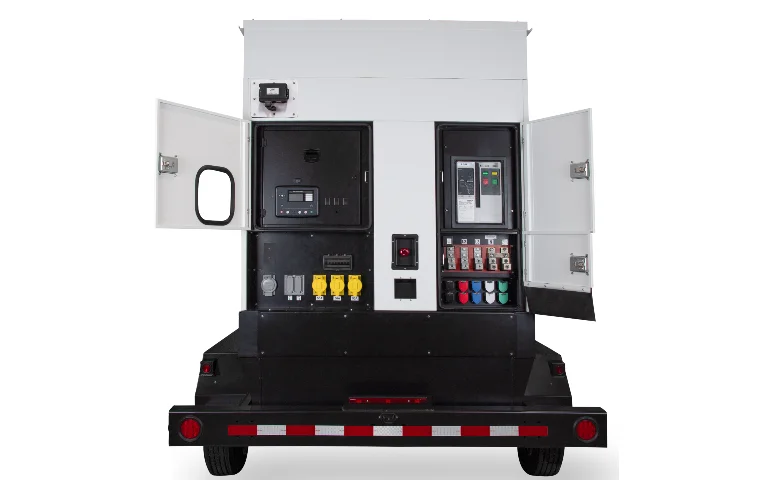

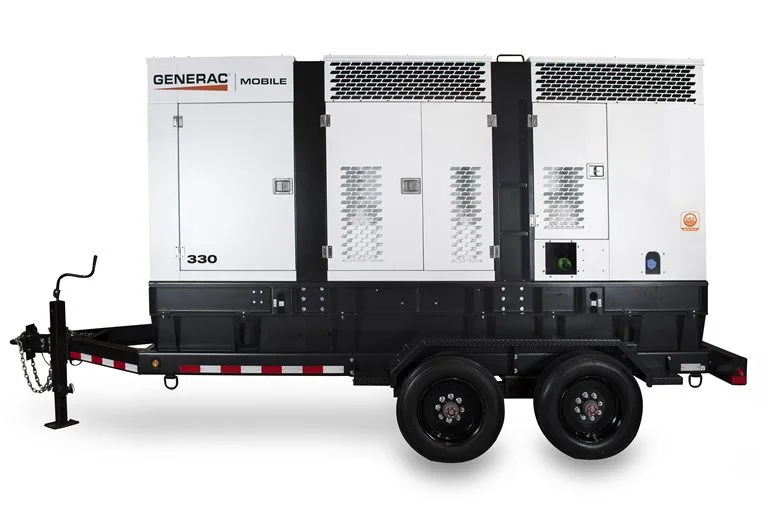

The Generac Mobile MDE330 Diesel Generator offers a Perkins diesel engine, 25 hour runtime at 75% load, and up to 290kW of mobile power. Features a two-position linkboard with switch for 3PH 120/208V and 3PH 277/480V output, plus standard 120/240 single voltage at the convenience receptacles.

GENERATOR FEATURES

• Perkins diesel engine – EPA Tier 4 Final.
• Exhaust Temperature Management (EMT) System to minimize wet-stacking.
• Single-wall 425 gallon fuel tank and 56.0 gallon DEF tank.
• EGR, DOC, SCR, and DPF after-treatment system.
• Electronic governing.
• Leroy Somer 4-Pole alternator.
• Deep Sea Electronics A109 Digital AVR.
• Permanent Magnet Generator (PMG) Excitation System.
• Two-position voltage change-over board for 3PH 120/208V and 3PH 277/480V output with standard connection lugs.
• Voltage adjustment of +/-10% for 139/240V and other voltage applications.
• Single Phase convenience receptacles with individual breakers.
• Deep Sea 8610 MKII controller with display and push buttons (see spec sheet below for details)
• 1,000 Amp Manual Main Circuit Breaker.
• Lockable Control Box Door.
• Emergency Stop Switch.
• Lockable Battery Disconnect.
• CSA Certified.

ENCLOSURE FEATURES

• All steel construction.
• UV and fade-resistant white polyester powder paint.
• Central lifting point.
• Four-point lift.
• Multi-lingual operating/safety decals.
• Document holder with operating manual including AC/DC wiring diagrams.
• Control Panel Lights.

OPTIONAL MTG330 TRAILER FEATURES

• Two 10,000 lb. axles.
• Electric brakes standard.
• 3″ Pintle Ring hitch standard.
• DOT approved lighting.
• Transportation tie downs.
• Safety chains with spring loaded safety hooks.
• Heavy duty trailer jack.
• 17.5 inch tubeless tires – 10 ply.
• Plug adapter – round 7 spade.

DOWNLOADS

MDE330 Spec Sheet

GENERATOR OPTIONS

• Superstart Generator – (MDE-SSGEN330) – ADD $2,444.00

• Female Camlock Connections (2 Sets) – (MDE-CAMS2) – ADD $1,870.00

• Paralleling with 1000A Motorized Circuit Breaker – (MDE-PAR330) – ADD $13,988.00


ENGINE OPTIONS

• Positive Air Shutoff (electronic) – (MDE-PAS) – ADD $1,697.00

• Engine Oil Level Maintainer – (MDE-OLM) – ADD $1,857.00


COLD CLIMATE OPTIONS

• 30 Amp Battery Charger – (MDE-CHARGER30) – ADD $1,325.00

• 60/40 Coolant – (MDE-6040) – ADD $130.00

• 2250W Engine Block Heater – (MDE-HEAT) – ADD $640.00

• CCV Heater – (MDE-CCV) – ADD $2,915.00

• Two Heated Fuel Filters – (MDE-HFF2) – ADD $2,209.00

• 1000W Oil Pan Heater – (MDE-OILHEAT) – ADD $175.00

• Two 148AH 1100CCA Batteries-12V Group 4D – (MDE-2BATT) – ADD $1,394.00


FUEL TANK OPTIONS

• Double-Wall Fuel Tank with Liquid Containment – (MDE-CON2W330) – ADD $17,357.00

• Three-way Aux Fuel Valve – (MDE-3WFV) – ADD $2,431.00


ENCLOSURE OPTIONS

• Interior Enclosure Lights – (MDE-LITE) – ADD $428.00

• 5-lb. Fire Extinguisher – (MDE-FIREEXT5) – ADD $414.00


TRAILER OPTIONS

• Rear Stabilizer Jacks – (MDE-JACKS) – ADD $185.00

• Aluminum Storage Box – 49″ x 15″ x 18.5″ – (MDE-TOOLBOX) – ADD $998.00

• Spare Tire – (MDE-TIRE330)

• Lojack Vehicle Recovery System – (MDE-LOJACK330) – ADD $577.00
