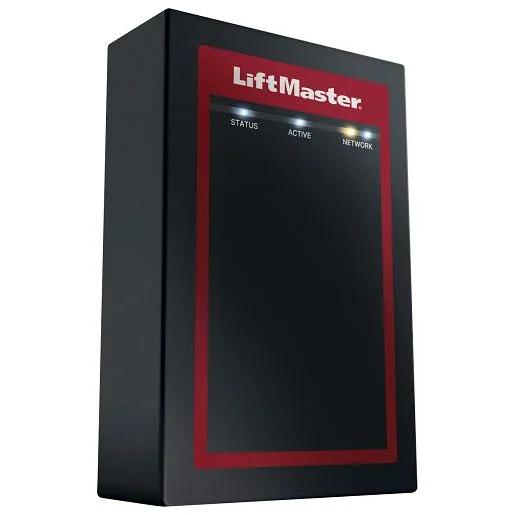

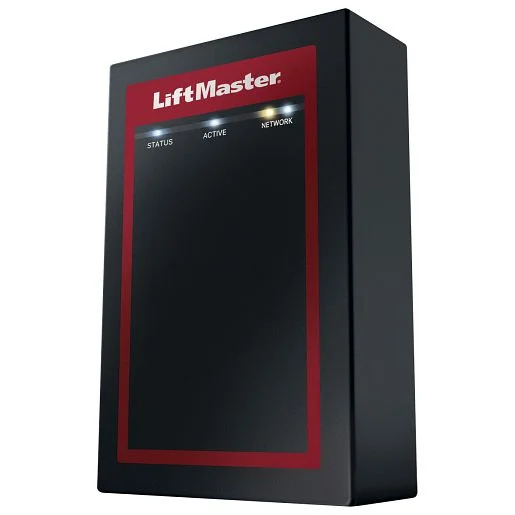

Smart Access 2-Door Controller cloud-based credentialed access control.

Key Features:

myQ® CommunitySmart Access Control Software

Controlsup to 2
Gates/Doors/Elevators/Commercial Door Operators each CAP2D.

Easily ExpandableNetwork through myQ® Community Web Platform.

myQ Community app:Residents can
unlock any authorized entrance / elevator
/ garage or virtually send guest passes
from their smartphone at anytime.

Smart:

Multiple-Entrance Controlwith myQ® Community Web Platform.

Elevator Access Controls   a cost effective
credentialed access solution through the myQ® Community app permitting access to the elevator
and any floor.

Eliminate Wiringbetween controllers in multiple-entrance applications with myQ® Community Web Platform.

Universal Compatibilitywith 26-, and 30- and 37-bit Wiegand-compatible readers, receivers and RFID readers.

Expansive Capacityfor 25,000 active credentials stored locally so residents can enter even when the internet is down.

Remote Programmingand activity monitoring using myQ® Community Web Platform.

Integrations– myQ® Community web platform streamlines tenant information management, enhancing property manager productivity and resident experience through an integration partnership with RealPage, Yardi, Entrata, and more.

Reliable:

Easy to Installin new or existing properties.

Backed-Up Storagein myQ® Community Web Platform ensures that databases are never lost.

Power over Ethernet (PoE)allows for flexibility of device placement.

Secure:

Email Alertslet you know when a suspended code is used or if an active code is being overused.

Real-Time Activity Trackingwith myQ® Community Web Platform.

Cloud-Based Securitykeeps data protected and safeguards resident information.

Total Solution Accessories:

CAPXLV Smart Video Intercom -Lcloud-based access control for residents and guests in large-sized communities.

CAPXM Smart Video Intercom -Mcloud-based credentialed access control for visitors and guests in mid-sized communities.

CAPCELL Cellular 4G/LTE Modem with Wi-Fi®makes it easy to connect CAPXL and CAP2D(s) anywhere (Not recommended for applications with video features).

PPWR Passport Receiver compatible with all standard Wiegand Protocols.

PPV3M/PPK3PHM/PPLK1-X Passport Remote ControlsVisor and keychain remotes with unique credentialed IDs.

KPR2000 Wired /Keypad and Proximity Readersingle-entry, multifunction controller that supports up to 2,000 users.

LMMC-MINI /multiCLASS® SE RP10 MINI Mullion proximity reader for credentialed access.

LMPC2-ST Proxcard II® 1326 /Clamshell Cardproximity card for credentialed access.

Capacities:

2 controlled gates / doors

25,000 local resident capacity

6,000 local event history (FIFO) offline from host

Multiple, Holiday and Hold-Open Scheduling, including one-time and repeating exceptions

Specs

Power:

12V DC, Min. 1.5 Amps (transformer not included)

PoE (802.3af) enabled network devices, 13 Watts max.

UL® listed

Dimensions:

4.5″ x 3″ x 1.25″

Mechanics:

Compact size mounts on standard single electrical-gang box or in a NEMA enclosure

Led indicator lights communicate status

Temperature Range: 31°F to 150°F (-35°C to 66°C)

Standard Specs:
Communication
Internet (Dynamic or Static IP)

myQ® Community subscription required

High speed

DSL with at least 1 MB download speed

Cellular (optional CAPCELL)

Input Ports:

2 Wiegand inputs

2 Request-to-exit (REX) inputs

2 Supervised inputs

Outputs:

2 Primary relays

2 Auxiliary relays

Warranty:

2 Year Warranty
