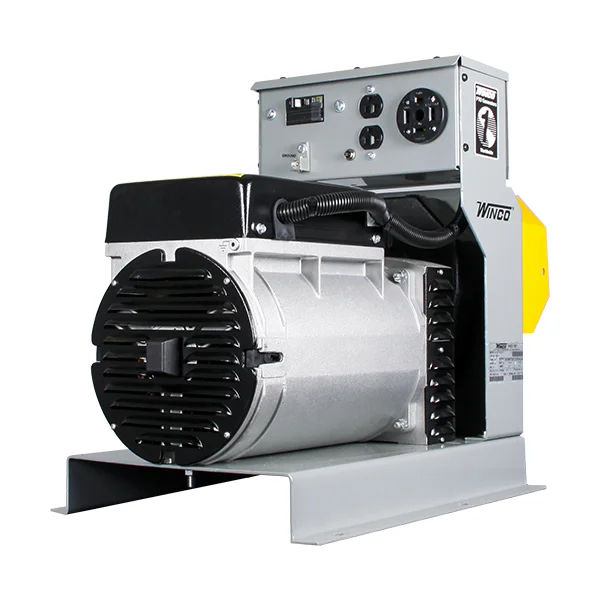

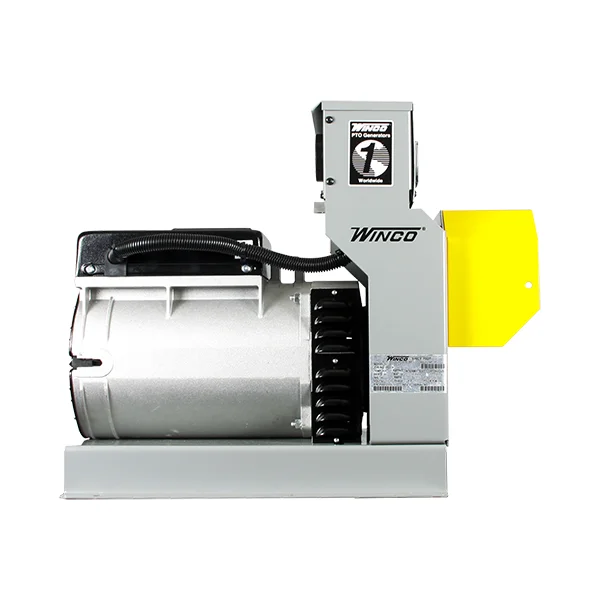

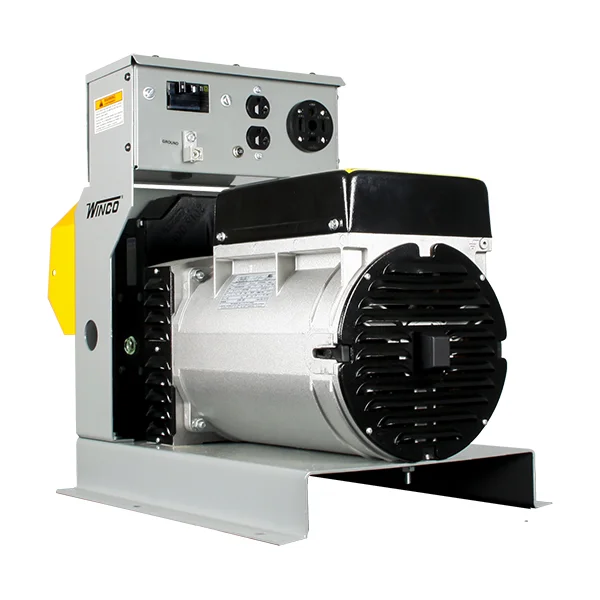

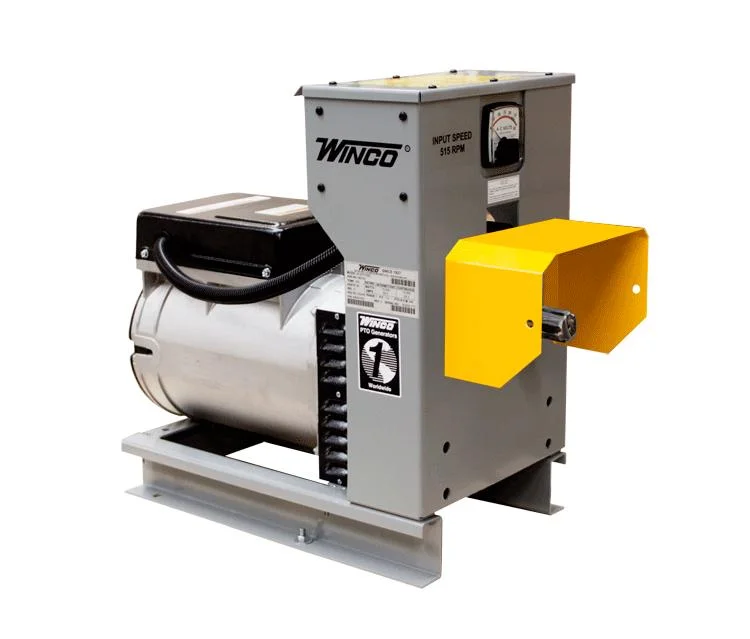

The WINCO W15PTOS PTO Generator is designed to increase the versatility of compact tractors by providing reliable and clean electrical power to your home, business or farm.

EASY TO ORDER PACKAGE OPTIONS

• W15PTOS PTO Generator Only – In Stock!

• W15PTOS PTO Generator with SA11310 PTO Shaft – In Stock!

• W15PTOS PTO Generator with SA11310 PTO Shaft and TDM76 trailer – In Stock!

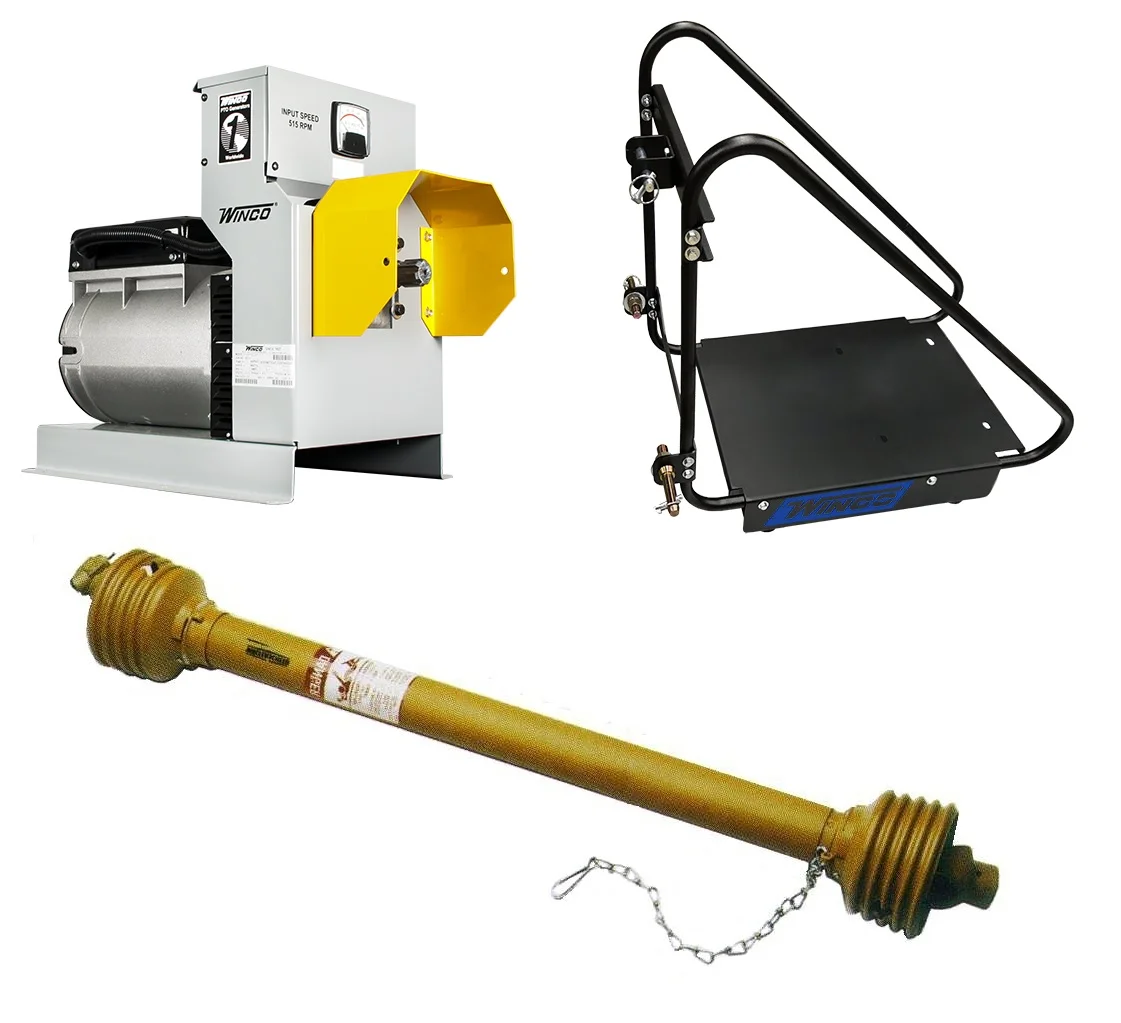

• W15PTOS PTO Generator with TPH250 3-Point Hitch and 300228 PTO Shaft – In Stock!


FEATURES

• 60A NEMA 14-60P full power plug included
• Large 3″ voltmeter
• Low harmonic content, appropriate for sensitive loads
• Cast iron gear case with 515 RPM 1 3/8″ spline input shaft
• Compact design for easy storage
• Square D mainline circuit breaker
• Protective PTO shield
• Heavy duty steel mounting base
• Helical gears for smooth operation
• Rodent protection
• Ground lug
• One year limited warranty.

GENERATOR END

• 100% copper windings – longer life and improved motor starting
• Single phase, 2 pole
• Rotating field brushless type
• Maintenance free bearings
• Class H Insulation
• Capacitor voltage regulated

DOWNLOADS

W15PTOS Spec Sheet

W15PTOS Drawing

W15PTOS Manual
