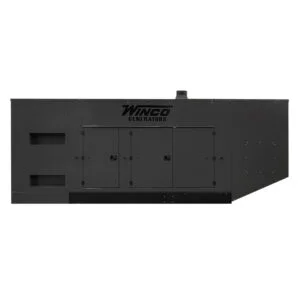

Winco DR550V4 Standby Generator (3PH, 550kW)
March 28, 2026
Winco DR600V4 Standby Generator (3PH, 600kW)
Call for PricingRequest a Quote
The Winco DR600V4 diesel standby generator offers a reliable and durable Volvo engine, a Stamford (Cummins) generator end, and up to 600 kW of power. Available in several three phase voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK). Optional fuel tanks available.
Or call us: (888) 481-8845
The Winco DR600V4 diesel standby generator offers a reliable and durable Volvo engine, a Stamford (Cummins) generator end, and up to 600 kW of power. Available in several three phase voltage models. Open Skid design (POWR-PAK) or with Cabinet Enclosure (SOUND-PAK). Optional fuel tanks available. UL 2200 and CSA Listed.
| Model | Phase | Voltage | kW | kVA | Amps |
| DR600V4 | 3 | 120/208V | 600 | 687.5 | 2083 |
| DR600V4 | 3 | 120/240V | 600 | 687.5 | 1801 |
| DR600V4 | 3 | 277/480V | 600 | 687.5 | 902 |
| DR600V4 | 3 | 346/600V | 600 | 687.5 | 722 |
FEATURES
Engine Features
- Volvo diesel engine.
- EPA Certified Tier 2.
- Efficient low fuel consumption design.
- Block heater – 120V, 3000W, with thermostat.
Generator Features
- Stamford industrial grade generator.
- Rated for continuous standby use.
- Class H insulation.
- Automatic voltage regulator provides +/-1.0% regulation.
- Available in all common voltages.
- Permanent Magnet Generator (PMG) MX341 standard – 1% regulation.
Control Features
- Digital genset DSE 7310 controller.
- Engine/genset display and protection.
- Glow plugs and starter solenoid controls.
- Emergency stop.
- USB connectable communications.
- Expanded communications options.
- Audible alarm.
- Event log.
- Configurable inputs.
- Configurable outputs.
- UL/CSA Listed.
- See the Spec Sheet below for a full listing of features.
Other Features
- Open Skid Design (Sound Attenuated Cabinet available)
- Welded and powder coated steel base.
- Rubber mounted engine and generator.
- Electrician friendly single cover connection points.
- Load bank tested.
- Single step 100% load tested.
- Operation Manuals.
- Designed for long life.
- 8A battery charger.
SOUND-PAK Cabinet Option
- Constructed with Galvanealed steel
- Lockable doors keyed alike
- Stainless steel hinges and door stops
- Critical muffler
- Maintenance doors and panels
- Powder coated prior to assembly
- Sound absorbing foam lined
- Cooling air deflectors
DOWNLOADS
OPTIONS
Fuel Tanks
- 1000 gallon – open skid
- 1340 gallon – housed
- 3000 gallon – housed
Other Options
- NFPA 110 Level 1 Compliant Upgrade
- Generator Strip Heater
- Group 4D 1200 CCA Battery (Need Two)
- Remote Emergency Stop
- DSE7310 Controller Options: Remote Annunciator, Remote Display, WebNet Gateway, GSM Antenna, GPS Antenna
- DSE8610 Controller Upgrade
| Brand | Winco |
|---|---|
| Weight | 10,850 lbs (open skid); 13,200 lbs (enclosed) |
| Dimensions | 236 x 78 x 92 (enclosed) |
| Voltage | Varies by Model (See Chart under Description Tab) |
| Engine | Volvo TAD1644GE, turbocharged, 6 cylinder, 16.12L, 917HP, 1800RPM |
Related products
-
Generac GP3500iO Generator (3500W)
Call for PricingRequest a QuoteThe Generac GP3500i Portable Gasoline Generator offers up to 3500 watts of power for the job site.
FEATURES
Generac 212cc gasoline engine.
Status Lights alert when unit is low on oil, overloaded or ready to use.
Low oil shutdown automatically safeguards engine from damage.
Recoil Pull Start. -

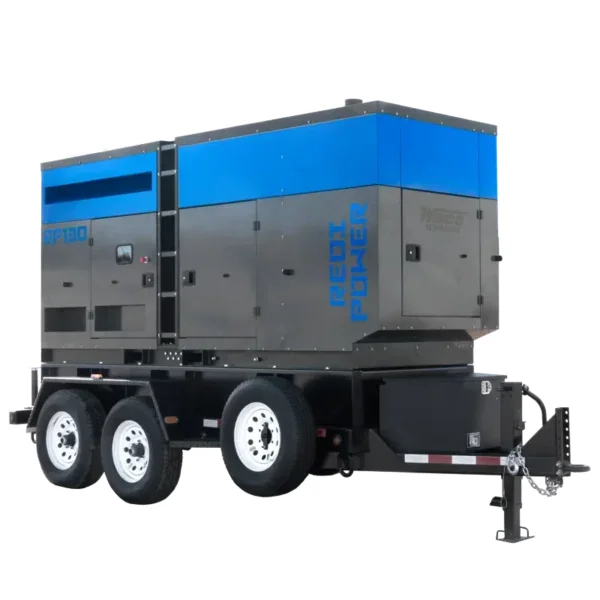

Winco RP130 Generator (110kW)
